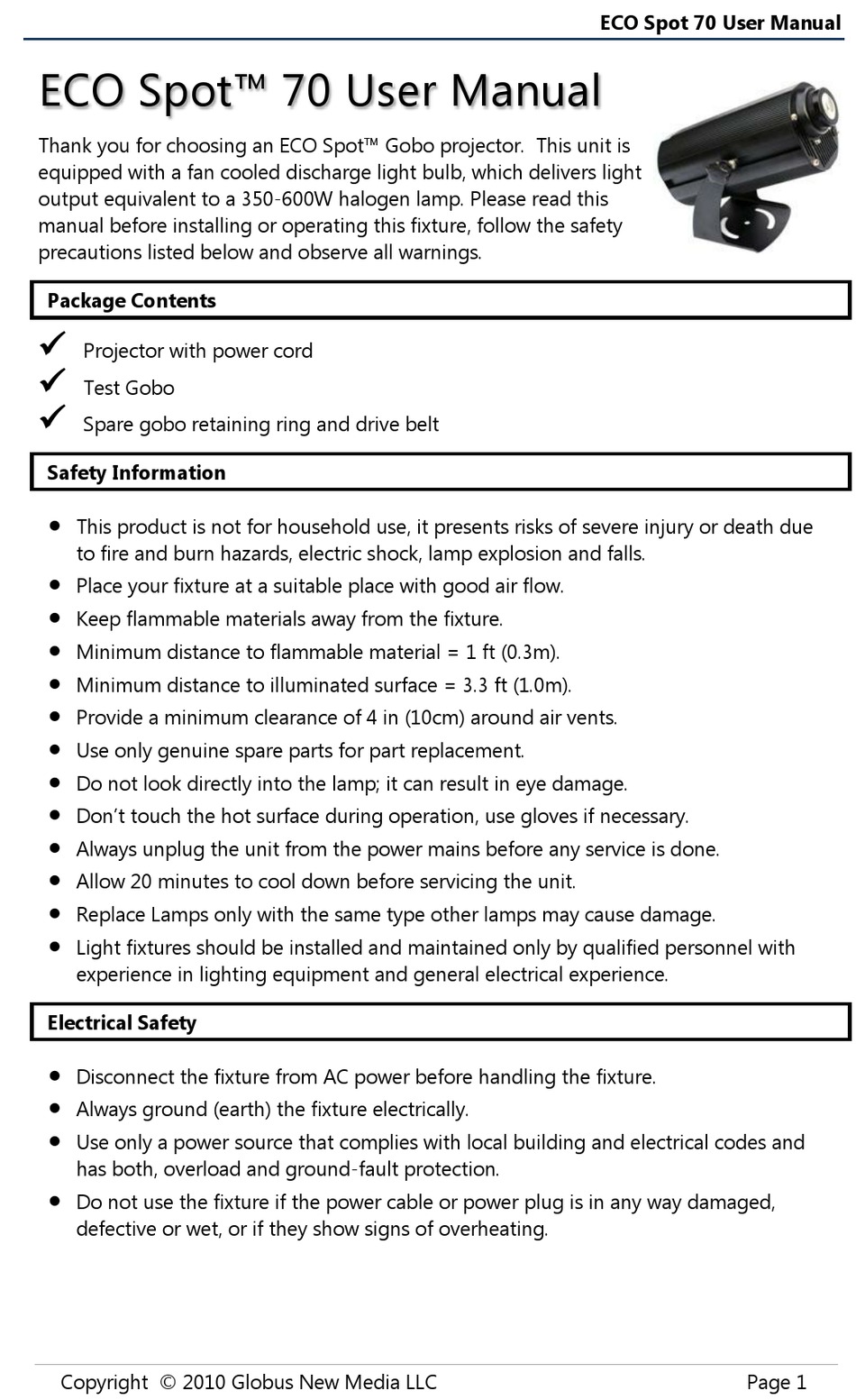

ECO Spot™ 70 User Manual
Thank you for choosing an ECO Spot™ Gobo projector. This unit is
equipped with a fan cooled discharge light bulb, which delivers light
output equivalent to a 350-600W halogen lamp. Please read this
manual before installing or operating this fixture, follow the safety
precautions listed below and observe all warnings.

Package Contents


Projector with power cord

Test Gobo

Spare gobo retaining ring and drive belt

Safety Information


This product is not for household use, it presents risks of severe injury or death due
to fire and burn hazards, electric shock, lamp explosion and falls.

Place your fixture at a suitable place with good air flow.

Keep flammable materials away from the fixture.

Minimum distance to flammable material = 1 ft (0.3m).

Minimum distance to illuminated surface = 3.3 ft (1.0m).

Provide a minimum clearance of 4 in (10cm) around air vents.

Use only genuine spare parts for part replacement.

Do not look directly into the lamp; it can result in eye damage.

Don't touch the hot surface during operation, use gloves if necessary.

Always unplug the unit from the power mains before any service is done.

Allow 20 minutes to cool down before servicing the unit.

Replace Lamps only with the same type other lamps may cause damage.

Light fixtures should be installed and maintained only by qualified personnel with
experience in lighting equipment and general electrical experience.

Electrical Safety


Disconnect the fixture from AC power before handling the fixture.

Always ground (earth) the fixture electrically.

Use only a power source that complies with local building and electrical codes and
has both, overload and ground-fault protection.

Do not use the fixture if the power cable or power plug is in any way damaged,
defective or wet, or if they show signs of overheating.
Copyright © 2010 Globus New Media LLC
ECO Spot 70 User Manual
Page 1
