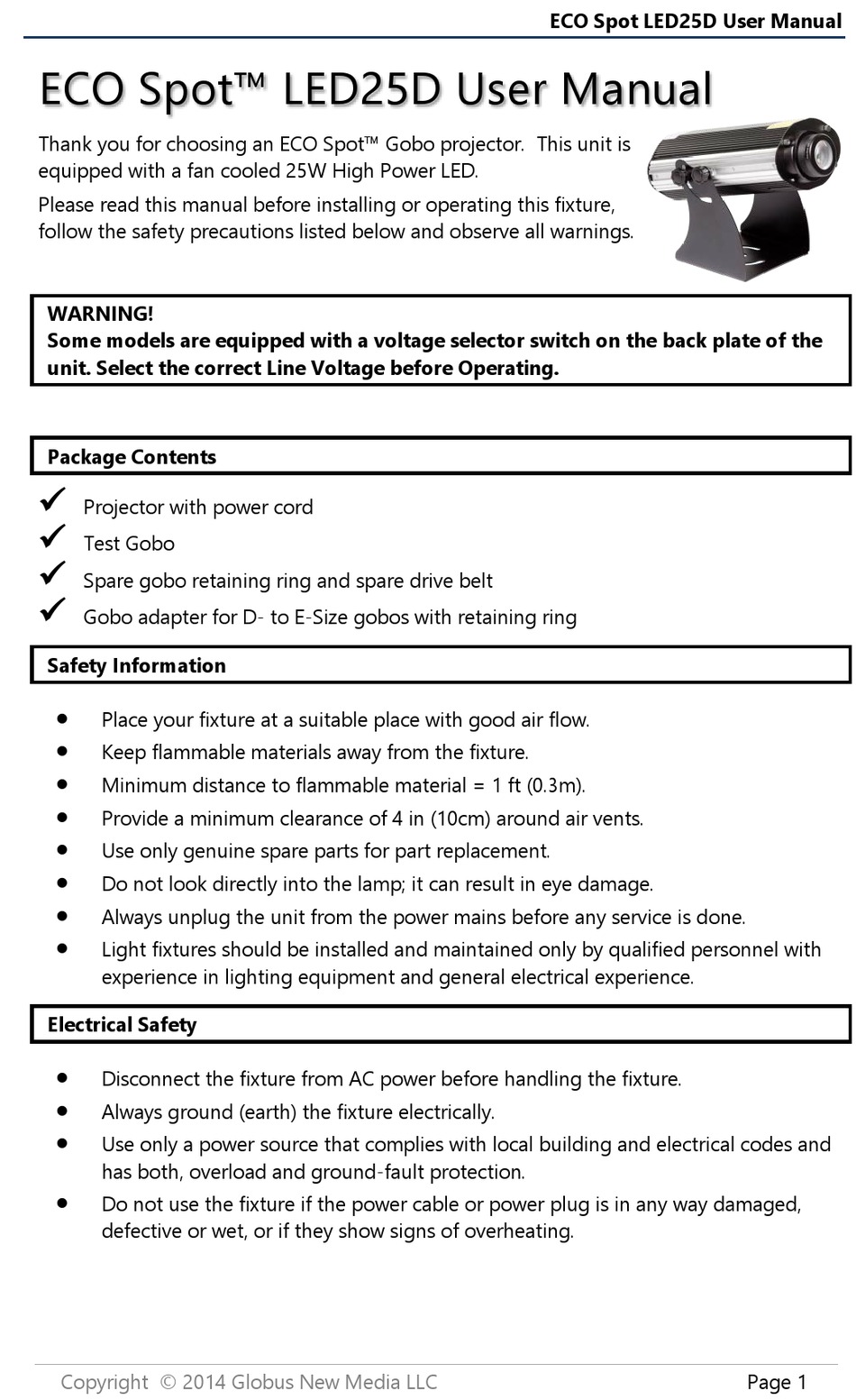

ECO Spot™ LED25D User Manual

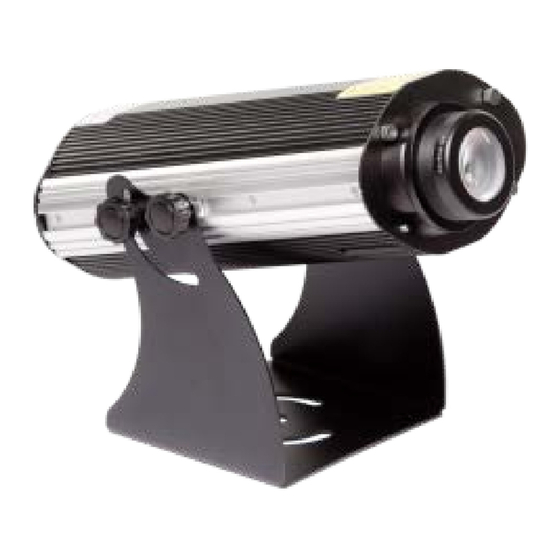

Thank you for choosing an ECO Spot™ Gobo projector. This unit is
equipped with a fan cooled 25W High Power LED.
Please read this manual before installing or operating this fixture,
follow the safety precautions listed below and observe all warnings.
WARNING!
Some models are equipped with a voltage selector switch on the back plate of the
unit. Select the correct Line Voltage before Operating.

Package Contents


Projector with power cord

Test Gobo

Spare gobo retaining ring and spare drive belt

Gobo adapter for D- to E-Size gobos with retaining ring

Safety Information

•
Place your fixture at a suitable place with good air flow.
•
Keep flammable materials away from the fixture.
•
Minimum distance to flammable material = 1 ft (0.3m).
•
Provide a minimum clearance of 4 in (10cm) around air vents.
•
Use only genuine spare parts for part replacement.
•
Do not look directly into the lamp; it can result in eye damage.
•
Always unplug the unit from the power mains before any service is done.
•
Light fixtures should be installed and maintained only by qualified personnel with
experience in lighting equipment and general electrical experience.

Electrical Safety

•
Disconnect the fixture from AC power before handling the fixture.
•
Always ground (earth) the fixture electrically.
•
Use only a power source that complies with local building and electrical codes and
has both, overload and ground-fault protection.
•
Do not use the fixture if the power cable or power plug is in any way damaged,
defective or wet, or if they show signs of overheating.
