FULL
HD
Combo Finder Meter
SCM-8000
HD DVB-S2/S+DVB-C
Meter
User manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCM-8000 and is the answer not in the manual?

Questions and answers

Related Manuals for Forward SCM-8000

Summary of Contents for Forward SCM-8000

  • Page 1 FULL Combo Finder Meter SCM-8000 HD DVB-S2/S+DVB-C Meter User manual...

  • Page 2: Table Of Contents

    SCM8000 Table of Contents Description....................... 3 Safety instructions................... 3 Safety of persons....................3 General information..................4 Appropriate Usage..................4 Delivery range ....................4 Device overview....................5 Start of operation.....................9 Battery......................7 Switch-on the Device..................7 Lithium-ions-battery..................8 Charging the battery..................8 Storing of the batteries ..................

  • Page 3: Description

    Signal strength and quality are displayed as numerical values and bar graphs. Another measurement value is the forward error correction (FEC) and the bit error rate (BER), In addition, the picture quality can be revised on the Modulation error rate(MER), high-resoluted 4.3-inch TFT LCD screen.

  • Page 4: General Information

    SCM8000 General information Attention! The devise should only be operated with the supplied AC adapter at the mains. Do not open the meter or the included AC adapter. There is danger of life through electric shock! Wrong usage of the ports can lead to the destruction of the measuring device.

  • Page 5: Device Overview

    SCM8000 a carrying bag an extern charger an power cable AV cable F connnector an user manual CD If the delivery should be incomplete, contact your specialist dealer Device overview LNB IN : Connect this port to the satellite atn cable RF IN: Not connect DC 14V: Power supply port AV OUT: Connect this port to TV’S CVBS via AV cable...

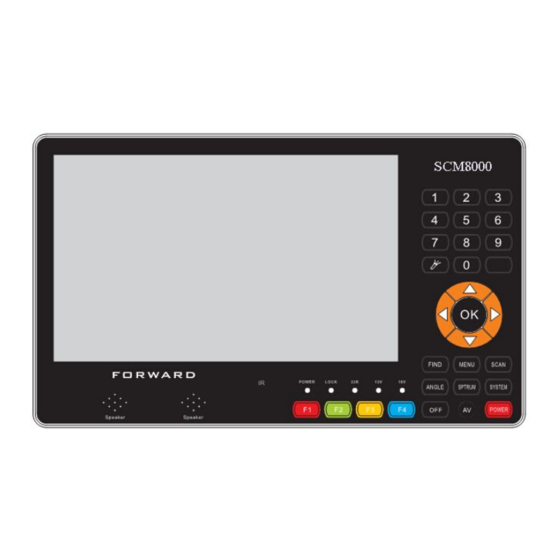

  • Page 6 SCM8000 Figure: Front of the meter Description Digital satellite signal input LNB1-IN LNB2-IN LC-Display Display of the TV picture, the menu and the measured values Display of the energy state: POWER-LED Operation: red: the measuring devise is switched on. Off: the measuring devise is switched off. In charge: Green: The battery is charged Red: The battery is full charged...

  • Page 7: Start Of Operation

    SCM8000 Navigation through menus, Navigation-cross switching programs ▲, ▼ volume control ◄, ► OK button: confirmation of a selection Direct enter of numbers Numeric keys FIND menu: for a quick and easy alignment of FIND a satellite antenna Display the main menu Menu Switch AV input or out put setup Display the calculation menu...

  • Page 8: Lithium-Ions-Battery

    SCM8000 Lithium-ions-battery Explosion danger! Never the two poles (+ and -) connect with each other! Attention! Storing or operating accumulator no more than 40° C. Not burning or damaging accumulator. Not taking accumulator to contact with water. Charging the battery The maximum battery charging time is approximately 12 hours.

  • Page 9: System Setting

    SCM8000 System setting è Press the MENU button. è Select the point system setting. è Confirm your selection using the OK button. Figure 2: System setting language Setup Press the SYSTEM button to change the menu language. _ Select the point Language setup. _ Choose your desired language using the ◄- or ►- button.

  • Page 10: Factory Default

    SCM8000 INFO Factory Default Press the SYSTEM button to change the menu language. _ Select the point Factory Default. _ Press OK to make the factory setting Factory reset Attention! All programs and settings, configured by you, will be reset to delivery status.

  • Page 11: Satellite Finding

    SCM8000 Satellite finding In this menu you have the option to search for single channels or using the display for lining a satellite dish up. ð Press the FIND button to display the Satellite Finding menu. ð ð Figure 4: Satellite Finding 11 |ENG...

  • Page 12: Lining Satellite Aerial Up

    SCM8000 ð Press the ◄- or ►- button to select a satellite.. ð Press the ◄- or ►- button to select a LNB type.. ð Input the Frequency using the NUMERIC buttons.(press◄- or ► first, then input the number you want) ð...

  • Page 13: Cable Finding

    SCM8000 ð Set up the satellite antenna exactly to receive the best signal. Notice! The C/N value should amount 6dB at least. Values of 10dB and more are urgently if you liked to have a certain bad weather reserve. Or in the case if the signal about a multicounter should be distributed to several buyers.

  • Page 14: Lining C Antenna Up

    SCM8000 Figure 6:C Finding è Press the ◄- or ►- button to select Scan method at Manual/Auto.. è Press the ◄- or ►- button to select Kind of service at All services/Only free services/Only encrypted services è Press the ◄- or ►- or 0---9 NUMBERIC button to select Select channel frequency at 177.5MHz--858MHz.

  • Page 15: Installation

    SCM8000 è Turn the receiving antenna as long as the LOCK- LED lights, or the joists of the signal level and signal quality are green. Once a signal is found, the bar graph shows the signal strength and quality. In addition C/N, SNR, PowerLevel and a.BER (after BER) are displayed.

  • Page 16: Diseqc1.2

    SCM8000 Figure 5: Satellite setup _ Select the point Dish Setup and press the OK button. Figure 9: Dish set-up settings _ Press the ▲- or ▼- button to move to the desired item Press the ◄- or ►- button to modify the value of the selected item. Use the NUMERIC buttons if necessary.
  • Page 17 SCM8000 ANGLE:To enter the Angle menu _Press F2 to enter the DiSEqC1.2 menu Select Satellite:Press the ◄- or ►button to choose the Satellite name Edit/Select ref Transponder:Press ◄- or ►button to choose the TP Motor Position:Press ◄- or ►button to choose the Motor positon at the off/1-64 Movement style:Press ◄- or ►button to choose he movement style at the Step/Continuous/1 second Move left/Right:Press ◄- or ►button to choose move left or right...

  • Page 18: Usb

    SCM8000 _F1: press F1 to enter the Dish setup menu _F2: Add the new satellite _F3:Remove this satellite _Finder: To enter the Finder menu _ANGLE: Calculation the satellite Degree _Scan: Scan this satellite program _ Press the Channel Scan button to enter the channel scan menu. _ In Select satellite button ,press the ◄- or ►- button choose the Satellite name _ In the Scan method button ,press the ◄- or ►- button choose the scan method mode at the Atuo/Blind/Manal...

  • Page 19: Backup Data

    SCM8000 Figure 11: USB _Press the File viewer to play usb file _ Press the Updating- button or use the updating the sw _ Press the Backup Data to backup data Figure 12: SW updating 19 |ENG...
  • Page 20 SCM8000 Figure 13: Backup Data Angle calculation _ Press the ANGLE button to display the Calculation menu. _ Press the ◄- or ►- button or use the NUMERIC keys to change the configuration of the selected menu point. Figure 11: Angle Calculation _ Press the ▲- or ▼- button to select the following points: ·...
  • Page 21 SCM8000 _Satellite: Select the desired satellite _Longtitude: Input your local longtitude _Location: Input the direction _Latitude: Input your local latitude _Longitude: Input your local longtude _ A fter the completion of all values select Angle Calculation and press the OK button. _Azimuth: shows the azimuth of the chosen satellite _Elevation:...
  • Page 22 SCM8000 Disposal Attention! Never throw the receiver and the batteries in normal household waste. They may contain toxic agents that are hazardous to health and environment. Therefore dispose of the device and the batteries immediately according to the prevailing statutory regulations. Never throw the batteries in normal household waste.
  • Page 23 SCM8000 Technical specifications LNB/Tuner input F-type connector IEC 169-24 Frequency range 950 MHz ~ 2150 MHz Input level -65 dBm bis -25 dBm LNB power supply 13/18 V, max. 400 mA LNB control signal 22 kHz DiSEqC control Version 1.0 Demodulator Front-end-modul QPSK/8PSK...
  • Page 24 SCM8000 Guard Internal: 1/4,5/32,1/8,5/64,1/16,1/32,1/64,1/128 SCPC- und MCPC Spectral inversion Auto conversion System resource Processor FUJITSU[MB86H60] Clock Frequency 324MHz DDRII-System 64 Mbyte DDRII-Video 64Mbyte FLASH 16 MByte Vide decoder Data rate up to 15 Mbit/s Resolution 1080i 720p 576p 480p Video format PAL, NTSC, SECAM Connectors USB2.0...
  • Page 25 SCM8000 Length x width x height Gross-weight 0,5 Kg Temperature Operating temperature 0° C to +40° C Storage temperature -40° C to +65° C Warranty 25 |ENG...
