Arduino ABX00053 Product Reference Manual page 9

Ref. Description
U1 Raspberry Pi RP2040 Microcontroller
U3 N/A
U5 AT25SF128A-MHB-T 16MB Flash IC
U7 DSC6111HI2B-012.0000 MEMS Oscillator
LSM6DSOXTR 6-axis IMU with Machine
U9
Learning Core
DL1 Green Power On LED
DL3 RGB Common Anode LED
JP2 Analog Pin + D13 Pins
Back View
Ref. Description
SJ4 3.3V jumper (connected)
9 / 19
Front View of Arduino Nano RP2040 Connect Topology

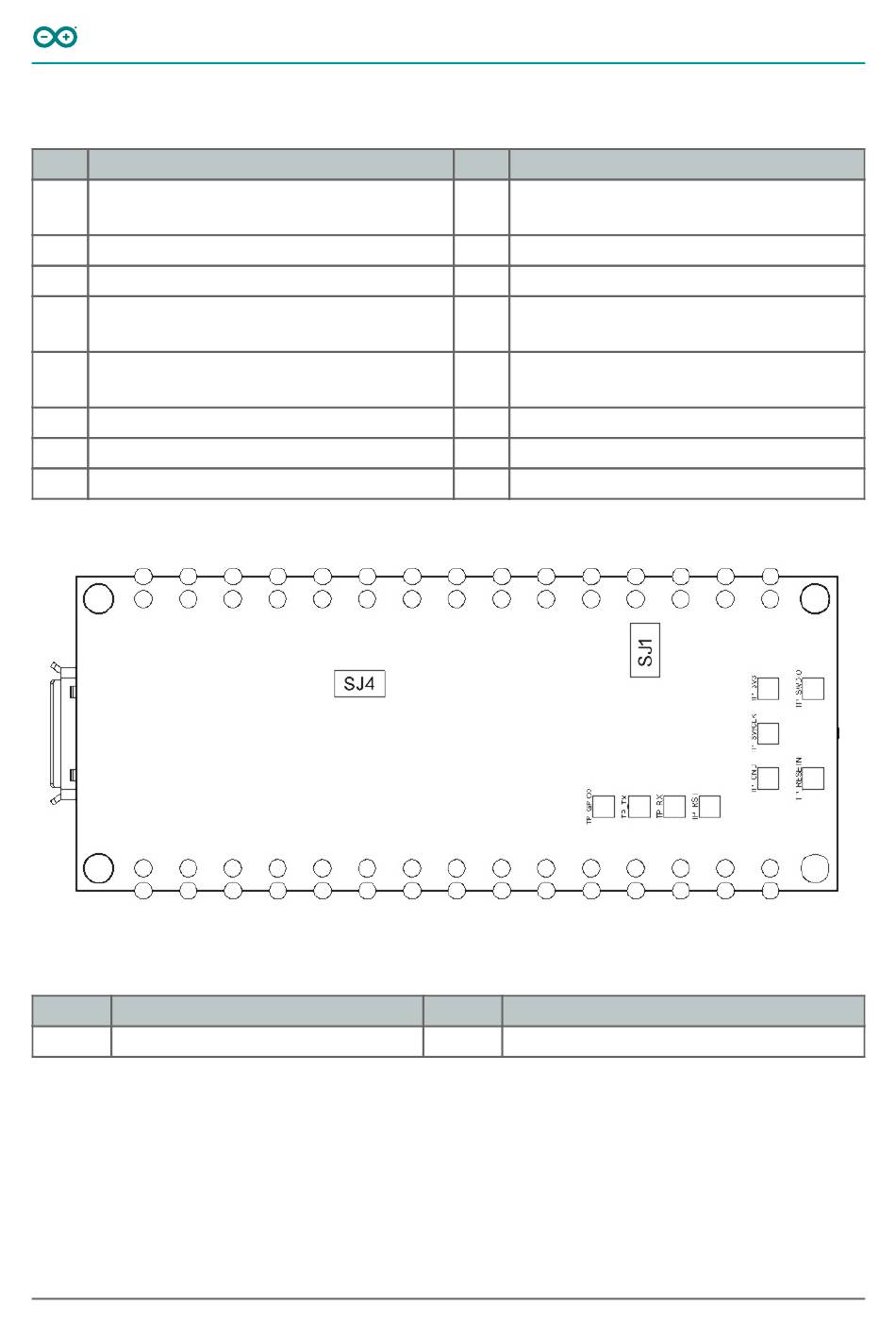

Back View of Arduino Nano RP2040 Connect Topology
Arduino® Nano RP2040 Connect / Rev. 01 - 14/05/2021
Arduino® Nano RP2040 Connect
Ref. Description
Ublox NINA-W102-00B WiFi/Bluetooth
U2
Module
U4 ATECC608A-MAHDA-T Crypto IC
U6 MP2322GQH Step-Down Buck Regulator
MP34DT06JTR MEMS Omnidirectional
U8
Microphone IC
J1 Male Micro USB Connector
DL2 Builtin Orange LED
PB1 Reset Button
JP3 Digital Pins
Ref. Description
SJ1 VUSB jumper (disconnected)
