Arduino® Nano RP2040 Connect

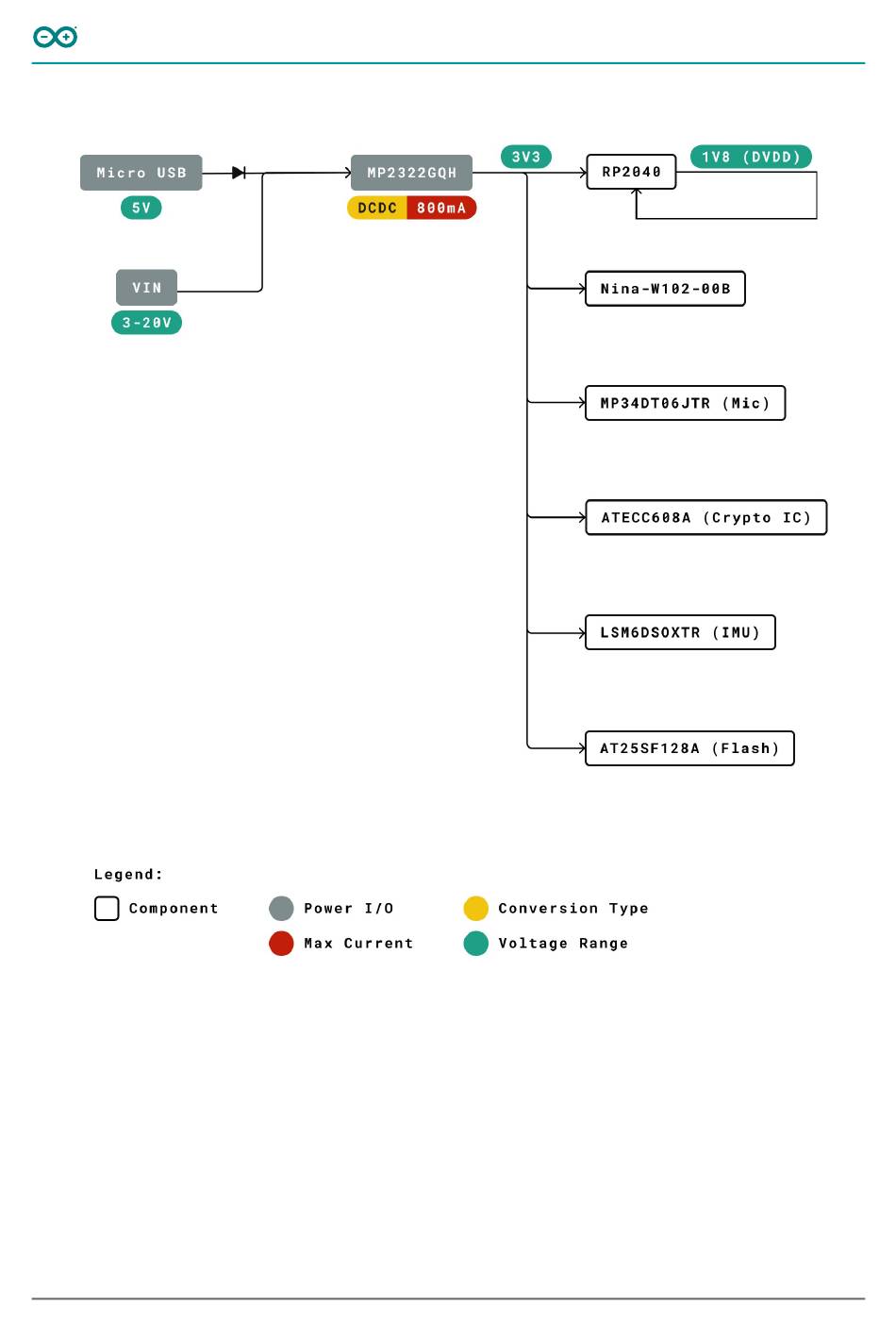

Power Tree of Arduino Nano RP2040 Connect Topology
The Arduino Nano RP2040 Connect can be powered by either the Micro USB port (J1) or alternatively via
VIN on JP2. An onboard buck converter provides 3V3 to the RP2040 microcontroller and all other
peripherals. Additionally, the RP2040 also has an internal 1V8 regulator.
12 / 19
Arduino® Nano RP2040 Connect / Rev. 01 - 14/05/2021
