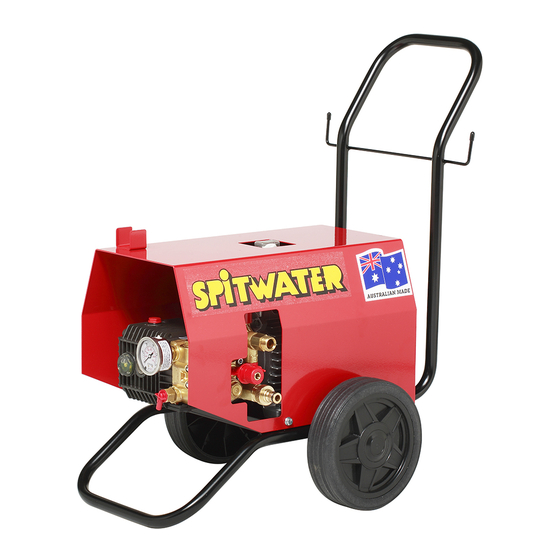

Spitwater SLD10 Operating And Maintenance Manual

Electric cold water high pressure cleaner

Hide thumbs

page of 21

/ 21
Bookmarks

Quick Links

Download this manual

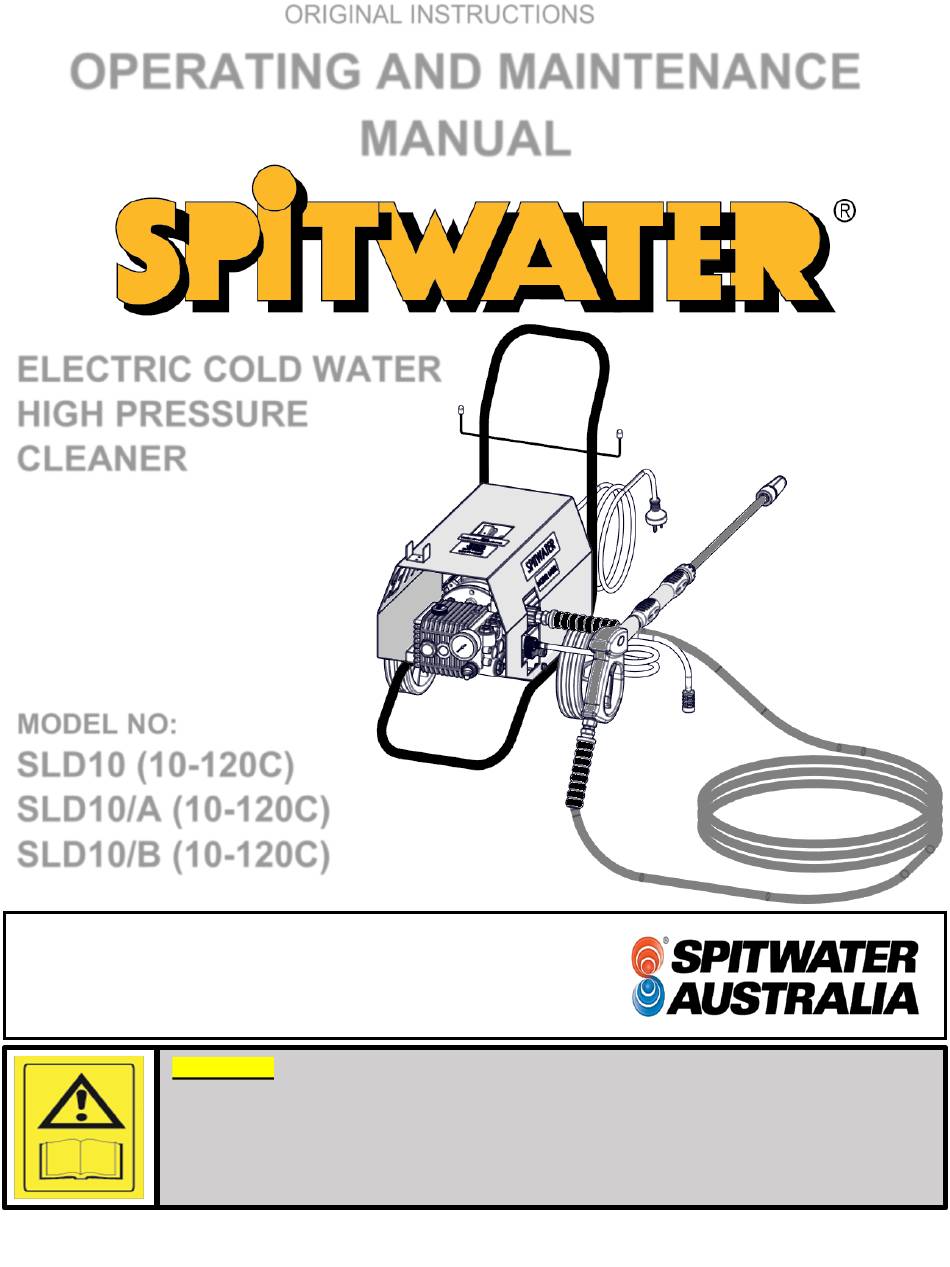

OPERATING AND MAINTENANCE

ELECTRIC COLD WATER

HIGH PRESSURE

CLEANER

MODEL NO:

SLD10 (10-120C)

SLD10/A (10-120C)

SLD10/B (10-120C)

MADE IN AUSTRALIA

SPITWATER AUSTRALIA PTY LTD

953 METRY STREET

NORTH ALBURY NSW 2640

AUSTRALIA

WARNING: Read and understand this instruction manual before operating this

unit and retain for future reference.

Failure to follow operating, safety and maintenance instructions outlined in this

manual releases the manufacturer from any responsibility for any accidents or

damage incurred and may render any warranty void.

ORIGINAL INSTRUCTIONS

MANUAL

Need help?

Do you have a question about the SLD10 and is the answer not in the manual?

Questions and answers

Summary of Contents for Spitwater SLD10

Page 1 CLEANER MODEL NO: SLD10 (10-120C) SLD10/A (10-120C) SLD10/B (10-120C) MADE IN AUSTRALIA SPITWATER AUSTRALIA PTY LTD 953 METRY STREET NORTH ALBURY NSW 2640 AUSTRALIA WARNING: Read and understand this instruction manual before operating this unit and retain for future reference.
Page 2 SPARE PARTS, ACCESSORIES AND AFTER SALES SERVICE Spitwater has an extensive range of spare parts and accessories to suit all your cleaning needs. For spare parts, accessories and service please contact 1800 SPITWATER (1800 774 892) and to view Spitwater's extensive range of high pressure cleaners online visit www.spitwater.com.au...
Page 3 TECHNICAL DATA MODEL 10-120C 10-120C 10-120C PRODUCT SLD10 SLD10/A SLD10/B UNIT PERFORMANCE FLOW RATE PRESSURE PRESSURE NOZZLE WATER INLET PRESSURE MAX TEMP MAX °C ELECTRICAL VOLTAGE PHASE FREQUENCY PLUG CONNECTED LOAD 3.15 3.15 3.15 RATED CURRENT 13.7 13.7 13.7 CLASS...
Page 4 DESCRIPTION OF SYMBOLS The following symbols are used throughout this instruction booklet in order to mark important paragraphs or sections that require particular attention. Their meaning is listed next to them for your attention. The following symbols are used on the unit, in order to warn user of potential injury if not cautious. Their meaning is listed next to them for your attention.
Page 5 Always pay attention to the safety instructions provided on each label. Do not alter or remove safety labels UNIT ON / OFF LANCE HOLDER SWITCH HANDLE PRESSURE PLUG HIGH / LOW (SLD10 ONLY) LANCE HOLDER CHEMICAL HOSE PRESSURE GAUGE LANCE HIGH PRESSURE WATER OUTLET CONNECTOR CHEMICAL FLOW...
Page 6 GENERAL SAFETY PRECAUTIONS 1. OBSERVE SAFETY INSTRUCTIONS • Make sure you have read and understood the whole instruction manual before installing, operating or carrying out any maintenance on this unit. • Warnings and data plates on the unit provide important directions and information on the safe use of the unit.
Page 7 5. EXTENSION CORD • If using an extension cord make sure it is according to cross section / maximum length requirements as shown to the right. • Inadequate extension cords can be dangerous. If an extension cord is used, it shall be suitable for outdoor use, and the connection has to be kept dry and off ground.
Page 8 OPERATIONAL SAFETY PRECAUTIONS All health and safety regulations applicable to general safe work practices, as well as safe operation of equipment, as well as any specific standard for safe operation of high pressure cleaners according to local regulations must be followed. When operating this unit, 1.
Page 9 Never exceed the maximum working temperature and pressure as indicated on the unit data plate and in this manual. • Only use this unit with cleaning chemicals recommended by Spitwater. The use of other cleaning agents or chemicals may adversely affect the safety of the unit. •...
Page 10 5. When not in use the unit must be stored in a dry building where there is no possibility for the temperature to be at or below 0°C. If necessary to store the unit at or below 0°C contact your authorized Spitwater service agent for advice.
Page 11 2. Remove carton and carefully remove the unit from the pallet keeping it upright. Visually check for any damage, leaks or other issues. If any problem is found, contact your Spitwater agent immediately. 3. Identify the unit from the information on the serial label affixed to the unit.
Page 12 • High pressure hoses, fittings and couplings are important for the safety of the machine. Use only high pressure hoses, couplings and fittings recommended by Spitwater. • Do not pull on high pressure hose in order to move the unit.
Page 13 Contact your Spitwater agent for advice and /or supply. • Make sure the water supply temperature and pressure meet the values specified in the technical data, then turn the water supply on. Visually check for leaks and contact your Spitwater service agent if found. •...
Page 14 LIST” in the SERVICE / CARE section as a guide. the nozzle and blocking it. If the unit is damaged or faulty in anyways, DO NOT use it, and immediately contact your authorized Spitwater service agent for advice. TO START 1. Always wear appropriate Personal Protective Equipment (PPE).
Page 15 1. To adjust spray angle, turn the nozzle head clock wise and anti-clock wise as desired. USING CLEANING AGENT 4. Fill the detergent tank/container with the cleaning solution and immerse the detergent suction tube into tank. Make sure the detergent filter reach container bottom and it is fixed securely.
Page 16 5. If the unit is to be left unused for an extended period be sure to clean the detergent line by running the water through it and dropping the detergent line into a container of clean water. 7. Never allow sprayed detergent to dry on the cleaning surface, as this may damage the surface.
Page 17 2. Carry out all regular maintenance and Spitwater recommends that all maintenance is inspections as listed in this manual using carried out by an authorized Spitwater service original Spitwater parts where required. agent using original Spitwater spare parts. 3. Always make sure before carrying out any...
Page 18 Check pump seals for any leak. Check proper functioning of STOP button. Assess any undue noise levels from the motor. STOP operting the unit, Unit is fit, proceed task Contact Spitwater service agent immediately Contact Spitwater service Do It Yourself, agent / Qualified person for...
Page 19 USAGE VS SERVICE FREQUENCY TABLE-A: Usage vs Service Frequency Time interval for checks and replacement listed above are for units subjected to normal operating conditions. Should the unit be subjected to abnormal conditions (e.g. heavy use, dirty water, extreme temperatures or conditions etc.) times should be reduced accordingly.
Page 20 OIL CHECK POINT PUMP OIL CHECK Ensure the unit is on a flat surface. Check the oil level in the pump using the dipstick or the sight glass on the back / side of the pump. Make sure the level is between min/max level notches on the dipstick, or is level with the indicator on the sight glass...
Page 21 TROUBLESHOOTING GUIDE If the fault cannot be identified or corrected using the below list (or remedy suggests contacting Spitwater service agent) stop using the unit immediately and contact your authorized Spitwater service agent to rectify. TROUBLESHOOTING GUIDE FAULT CAUSE REMEDY...
