IP5M-B1186EW-28MM / IP8M-B1186EB-28MM

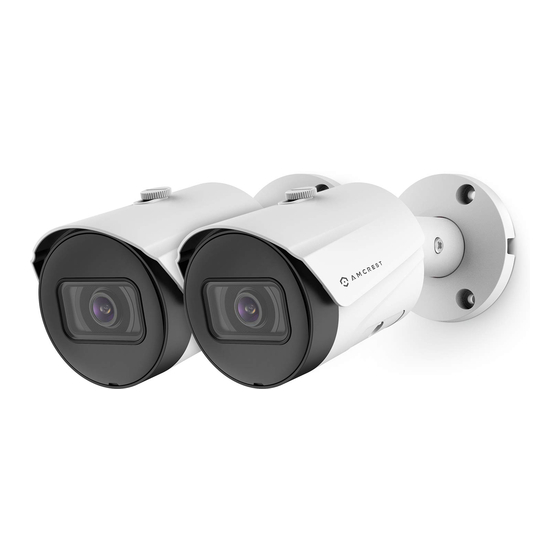

5MP UltraHD Bullet Camera
User Manual
Version 1.0.0.
th
September 11
, 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP5M-B1186EW-28MM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Amcrest IP5M-B1186EW-28MM

Summary of Contents for Amcrest IP5M-B1186EW-28MM

  • Page 1 IP5M-B1186EW-28MM / IP8M-B1186EB-28MM 5MP UltraHD Bullet Camera User Manual Version 1.0.0. September 11 , 2020...

  • Page 2: Table Of Contents

    Installation Guide ..................................5 Camera Access Setup ................................6 How to Setup the Camera ................................ 7 App Setup ....................................7 Amcrest Cloud App Setup ................................. 7 Amcrest View Pro Setup ................................10 Desktop Access Setup ................................12 Operation and Interface ................................13 Live......................................13 Playback ....................................13...

  • Page 3: Welcome

    Email Amcrest Customer Support support@amcrest.com Important Security Warning To keep your Amcrest camera secure and prevent unauthorized access, please make sure to follow the steps below: • Always make sure that your camera has the latest firmware as listed on www.amcrest.com/firmware...

  • Page 4: Features And Specifications

    Be sure to use only the accessories recommended by manufacturer. Before installation, please open the package and check to ensure that all the components are present. Contact the retailer that you purchased from, or Amcrest directly if anything is broken or missing in the package. Features and Specifications Overview Amcrest provides an excellent digital surveillance product that can be useful to a wide variety of users.

  • Page 5: Device Overview

    Amcrest offers premium cloud storage options to enable long-term storage. Amcrest Cloud also allows the user to easily locate and view recordings for playback from any internet connected computer or smartphone (iOS/Android). • Advanced Network Protocol Support This camera is UPnP compatible, and includes functionality for use with DDNS, and other protocols to allow remote and local connection with a large variety of network hardware.

  • Page 6: Camera Access Setup

    8. Adjust the device to the desired position. Camera Access Setup This section will provide information on how to setup and access your camera through the following methods: • Local PC (Web User Interface (Web UI), Amcrest Surveillance Pro, etc.) • Amcrest View Pro app •...

  • Page 7: How To Setup The Camera

    If you are setting up your camera for the first time, or you are setting up your camera for mobile viewing. Using the Amcrest Cloud app or Amcrest View app on your smartphone or tablet, you can view your camera live from anywhere, and access features such as taking snapshots, creating recordings, and more.
  • Page 8 Note: Connect your mobile device to the same network that your camera is on. 2. Register for an Amcrest Cloud account. To register click on Sign Up and fill out the form to complete registration. 3. Tap on Add Camera 4.
  • Page 9 When you have finished Finish. setting the password for your camera, enter the password again in the Confirm Camera Password section. Tap Next to continue. For more information about the Amcrest Cloud app and its features, visit amcrest.com/support...

  • Page 10: Amcrest View Pro Setup

    Download and install the Amcrest View Pro app for the App Store or Google Play Store. Open the app on your mobile device and allow the app to load.
  • Page 11 Note: IP/Domain/DDNS can be used to establish a DDNS connection. For more information on how to setup a DDNS connection, visit amcrest.com/support 7. Create a name for the device and enter a username 8. Update the default password for the device and tap “Start Live View”...

  • Page 12: Desktop Access Setup

    To access your camera from your computer you will need to first locate the camera’s IP address. To locate the camera’s IP address is it highly recommended to download our free Amcrest IP Config Tool software. The Amcrest IP Config Tool can be downloaded at the following web page: amcerest.com/downloads...

  • Page 13: Operation And Interface

    The live view tab has five main sections: Section 1: These options allow the user quick access to the live view screen, Playback, and Amcrest Cloud web site. Section 2: This section allows the user to switch between Main Stream and Sub stream.

  • Page 14: Cloud Storage

    4. Playback Bar: These options allow the user to play, stop, and adjust the audio levels of a recording. Cloud Storage The Cloud Storage tab allows the user quick access to the Amcrest Cloud website. At this website (amcrestcloud.com) users can register for new accounts as well as view or modify existing accounts.

  • Page 15: Camera

    There are 3 main sections to note in the Setup tab: 1. Menu Bar: The menu bar is composed of menu sections, which when clicked display any menu items that fall under their category. 2. Menu Items: These menu items each open a different menu that allows the user to change specific settings for the camera.
  • Page 16 Below is an explanation for each of the fields on the Configuration tab in the Configuration menu item: Picture • Profile: This dropdown box allows the user to select which profile to modify. The 3 options are Day, Night, and Normal.
  • Page 17 • Profile: This dropdown box allows the user to select which profile to modify. The 3 options are Day, Night, and Normal. • Anti-Flicker: These options allow the user to select what type of anti-flicker technology should be used for the video feed.
  • Page 18 • BLC: backlight compensation: Default will use the whole image to balance the lighting settings, and Customized will allow you to balance the lighting settings from the target area. • WDR: Wide Dynamic Range makes multiple scans of a scene to provide one balanced and unwashed image that is clear for the user.
  • Page 19 To reset to default settings, click the Reset Defaults button. To refresh the screen, click on Refresh. To save the settings, click the Save button. Day & Night Day & Night profiles are used to determine when black and white mode is turned on in a dark environment. Below is a screenshot of this menu: •...
  • Page 20 • Mode: This dropdown box allows the user to select different Day & Night balance modes. The 3 options are Auto, Color, and B&W. Auto - Uses D&N Sensitivity setting to change between color mode and infrared and black and white mode.

  • Page 21: Video

    Profile Management Below is a screenshot that shows the Profile Management tab in the Configuration menu item: Below is an explanation for each of the fields on the Profile Management tab in the Configuration menu item: Profile Management: This set of radio buttons allow the user to set what basis the profile management settings run on.
  • Page 22 MJPEG video compression protocols. • Smart Codec: Smart codec is a function in most Amcrest cameras which aim to reduce bandwidth consumption without losing visible image quality by intelligently increasing compression where it will not make a visible difference in the scene.
  • Page 23 Snapshot Below is a screenshot that shows the Snapshot tab in the Video menu item: Below is an explanation for each of the fields on the Snapshot tab in the Video menu item: Snapshot Type: This dropdown box allows the user to select a snapshot mode. There are two snapshot modes: General: Snapshots are taken as scheduled.
  • Page 24 The menu on the left allows the user to select which overlay to modify. Privacy Masking, Channel Title, Time, and Text Overlay can all be modified in this menu. For Privacy Masking, the radio button enables or disables the feature. To set a privacy mask, click one of the boxes in the live view window, and position or resize it as needed.

  • Page 25: Network

    Network This menu section allows the user to change network settings for the camera. TCP/IP The TCP/IP menu item has two tabs: TCP/IP and P2P. TCP/IP TCP/IP stands for Transmission Control Protocol/Internet Protocol and it is the language/protocol that allows communication between internet connected devices, whether on a local network, or a on the Internet at large.
  • Page 26 The P2P settings screen is where users can use a QR code to connect their smartphone or tablet to the camera. This feature needs to be enabled for use with the Amcrest View app, Amcrest Cloud, or AmcrestView.com. Below is a screenshot of the P2P settings tab:...
  • Page 27 QR code scanning feature cannot be used. • QR Code: This image is a Quick Response (QR) code. By scanning this image using the Amcrest View app, this camera can establish a connection with the app.
  • Page 28 For purposes of this guide, AmcrestDDNS will be used. AmcrestDDNS is a free DDNS service provided by Amcrest, and it must be renewed every year. A renewal reminder email will be sent to the email entered in the username field below.
  • Page 29 IP Filter This screen allows for the filtering of IP addresses, either blocking them, or granting them access to the camera. This feature helps make the camera more secure by limiting remote access only to approved users. Below is a screenshot of the IP Filter screen: Below is an explanation of fields on the IP Filter settings screen: •...
  • Page 30 Below is an explanation of fields on the SMTP (Email) settings screen: • SMTP Server: SMTP stands for Simple Mail Transfer Protocol. This field allows the user to enter the SMTP server used by the email service. • Port: This field allows the user to enter the port that corresponds to the selected SMTP server. •...
  • Page 31 • Keep Alive: This checkbox allows the user to enable a function to periodically check in with the SMTP server to ensure it can connect correctly. • Email Test: This button causes the system to automatically send out an email to test the connection is OK or not. Prior to the email test, please save the email setup information.

  • Page 32: Https

    The seventh column allows the user to open a dialog box and edit the service’s information. To reset to default settings, click the Reset Defaults button. To refresh the page, click the Refresh button. To save the settings, click the Save button. HTTPS This menu allows the user to enable and create HTTPS certificates.
  • Page 33 Below is an explanation of the fields on the Motion Detection tab: Enable: This checkbox enables motion detection for the camera. Schedule: Clicking this button opens a weekly schedule that can be used to set times.
  • Page 34 Click and drag to set motion detection for certain days of the week. Also, periods of motion detection can be set for each day and enabled using the period settings on the bottom half of the screen. There are a total of 6 periods that can be set.
  • Page 35 After the motion detection zone is set, click the enter button to exit the motion detection screen. Remember to click the save button on the motion detection settings screen, otherwise the motion detection zones will not go into effect. Clicking the cancel button to leave the motion detection zone and will not save the zone setup.

  • Page 36: Abnormality

    Click and drag to set video tampering for certain days of the week. Also, periods of video tampering can be set for each day and enabled using the period settings on the bottom half of the screen. There are a total of 6 periods that can be set.
  • Page 37 SD Card This tab allows the user to set the camera’s response to an SD card related abnormality. Below is a screenshot of the SD card tab screen: Below is an explanation of the fields on the SD Card tab: •...

  • Page 38: Storage

    Below is an explanation of the fields on the Network tab: • Event Type: This dropdown box allows the user to select which Network abnormality to set event triggers for. The 2 options are Disconnection and IP Conflict. • Enable: This checkbox enables the Network abnormality trigger for the camera. •...
  • Page 39 Record Schedule This tab is where video recording settings are configured. Below is a screenshot of the Record Schedule settings screen: Below is an explanation of the fields on the Record Schedule settings tab: There are 3 types of recordings: General: General recording means that the camera captures all footage for the specified time period.
  • Page 40 Below is an explanation of the fields on the Snapshot Schedule settings tab: There are 3 types of snapshots: General: General means that the camera will take snapshots during the specified time period. General recording is represented by the color green. Motion: Motion Detection means that the camera only takes snapshots when the motion detection alarm is activated.

  • Page 41: Destination

    Below is an explanation of the fields on the Holiday Schedule settings tab: • Record Type: These checkboxes allow the user to select which recording type they want to configure on the schedule. There are 2 types of recordings: Record: This checkbox is referring to video recording. Snapshot: This checkbox is referring to snapshot recording.
  • Page 42 Below is an explanation of the fields on the Path settings tab: • Event Type: This column designates storage options available to the camera. The options are FTP and NAS. • Record Type: These columns designate which recording type should be recorded to which event type. Check the box at the intersection of the record type and event type to designate where that recording should be sent to.
  • Page 43 Below is an explanation of the fields on the FTP settings tab: • Enable: This checkbox allows the user to enable FTP uploading for the camera’s recorded media. • Server Address: This field allows the user to designate a DDNS address for the FTP server. •...

  • Page 44: Cloud Storage

    To reset to default settings, click the Reset Defaults button. To refresh the page, click the Refresh button. To save the settings, click the Save button. Cloud Storage This menu redirects the user to the Amcrest Cloud web site. At this website (amcrestcloud.com) users can register for new accounts as well as view or modify existing accounts.

  • Page 45: System

    For more information on Amcrest Cloud visit: amcrestcloud.com System This menu section allows the user to change general settings for the camera. General This menu controls where general settings are configured. There are 2 tabs in this menu: General and Date & Time.
  • Page 46 Below is an explanation of the fields on the Date & Time settings tab: • Date Format: This dropdown box allows the user to change the date format used in the camera. • Time Format: This dropdown box allows the user to change the time format used in the camera. •...
  • Page 47 Manage Users This menu allows the user to change the user accounts on the camera. By default, the camera only has the admin account which has all rights/authorities. Additional accounts can be created on this screen. Below is a screenshot of the account screen: Below is an explanation of the fields on the Account screen: •...
  • Page 48 Below is an explanation of the items listed in this field: Default Settings: Only the IP address, user management, and other settings can be recovered after reset. Factory Default: Completely resets the camera to factory default settings. No settings can be recovered after the camera has been returned to its factory default settings.

  • Page 49: Information

    This menu allows the user to upgrade the camera’s firmware. Below is a screenshot of the Upgrade screen: To upgrade the firmware for your camera, follow the steps provided below: • Go to amcrest.com/firmware-subscribe • Search for the model number of your camera and download the latest firmware file. •...

  • Page 50: Version

    Version This screen allows the user to see various information about the camera’s software versions, as well as other information. Below is a screenshot of the camera’s version screen: On this screen, software version, web interface version, and ONVIF version are displayed. Also, the S/N (Token ID) is displayed here.
  • Page 51 To back up the log, click the Backup button. To clear the log, click the Clear button. Remote Log This screen allows the user to set a remote log of the camera’s activity. An IP address of the remote location must be applied to the interface.

  • Page 52: Alarm

    Click Refresh to refresh this table. Alarm This screen is where the alarm log is kept. Below is a screenshot of the alarm screen: The table on the right shows the alarm log and all the alarm instances that have occurred. The checkboxes allow the user to narrow down which alarms they want to see in the alarm log.
  • Page 53 6. Click the Connections menu item on the left-hand menu and ensure that the HTTP port has changed. 7. Click the DDNS menu item on the left-hand menu, pick Amcrest DDNS from the drop down box, click the checkbox next to Server Type, and then click the Save button on the bottom right.
  • Page 54 For example, if the DDNS domain name is http://abc123456789.AmcrestDDNS.com and your HTTP Port is 33333, the URL would be http://abc123456789.AmcrestDDNS.com:33333 23. Enter in login details into the username and password fields and click login. If the process above is not working, please contact Amcrest Support via one of the following options: Visit http://amcrest.com/contacts...

  • Page 55: Amcrest Cloud Desktop Setup

    4. View your camera live or watch recorded clips using the menu button on the top of the page. You can also use the Amcrest Cloud app on iOS and Android to add more cameras, play recordings, and view your camera live, from anywhere.
  • Page 56 2. Camera often automatically shuts down or stops running. Below are a few possible reasons why this may be occurring: • The input voltage is too low or is not stable. • The insides of the camera have accumulated too much dust. •...

  • Page 57: Glossary Of Terms

    • The network is not stable. • There may be an IP address conflict. • There may be a MAC address conflict. • The PC or camera network card may be defective. • The Ethernet cable is too long 9. The alarm signal cannot be disarmed. Below are a few possible reasons why this may be occurring: •...

  • Page 58: Fcc Statement

    • S/N – S/N stands for serial number. The S/N is unique to each camera and can be used to connect to different Amcrest apps and services to provide different methods of access to the camera. • Sensitivity – Sensitivity is the amount of change required to increase the motion detected by a percentage. The lower the sensitivity, the more movement is required to trigger an alarm.

  • Page 59: Ic Warning Statement

    manual in that alternative form, provided the user can reasonably be expected to have the capability to access information in that form. (b) For a Class B digital device or peripheral, the instructions furnished the user shall include the following or similar statement, placed in a prominent location in the text of the manual: NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 60: Appendix A: Toxic Or Hazardous Materials Or Elements

    Note: • To view setup videos for many of the steps outlined in this guide, go to http://amcrest.com/videos • This user manual is for reference only. Slight differences may be found in the user interface. •...
  • Page 61 To contact Amcrest support, please do one of the following: Visit http://amcrest.com/contacts and use the email form Call Amcrest Support using one of the following numbers: Toll Free US: (888) 212-7538 International Callers (Outside of US): +1-713-893-8956 USA: 713-893-8956 Canada: 437-888-0177...
