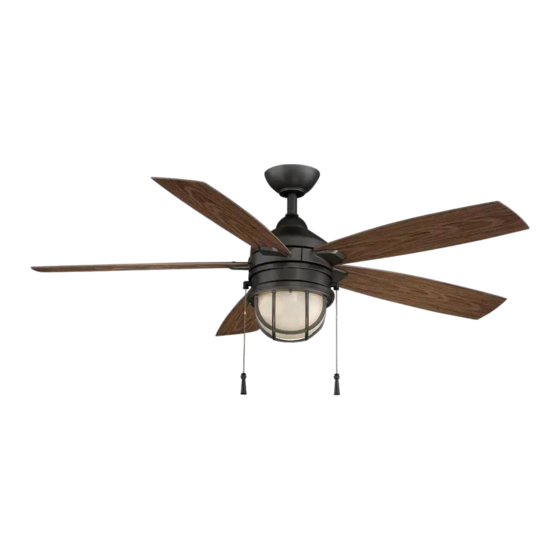

Summary of Contents for HAMPTON BAY SEAPORT AL634-NI
- Page 1 Model # AL634-NI USE AND CARE GUIDE SEAPORT 52 IN. CEILING FAN Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............Operation ..............Pull Chain Operating Instructions .......... Safety Information ............Reverse Switch Operating Instructions ........Warranty ................. Care and Cleaning ............Pre-installation .............. Troubleshooting ............Specifications ................Service Parts ............... Tools Required ................Hardware Included .............. -
Page 3: Safety Information
Safety Information To reduce the risk of electric shock, ensure electricity has However, there is no guarantee that interference will not occur been turned off at the circuit breaker or fuse box before in a particular installation. If this equipment does cause harmful beginning. -
Page 4: Warranty
Warranty We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser. We also warrant that all other fan parts, excluding any glass or acrylic blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the date of purchase by the original purchaser. -
Page 5: Hardware Included
Pre-Installation (continued) HARDWARE INCLUDED HARDWARE INCLUDED NOTE: Hardware shown to actual size unless noted otherwise in the table below. Part Part Description Description Quantity Quantity Plastic wire nut Canopy mounting screw (preassembled) Blade attachment screw and rubber washer (not to scale) Blade arm screw and lock washer (preassembled) Clevis pin (preassembled) Cotter pin (preassembled) -
Page 6: Package Contents
Pre-Installation (continued) PACKAGE CONTENTS PACKAGE CONTENTS Part Part Description Description Quantity Quantity Part Part Description Description Quantity Quantity Mounting bracket (preassembled) Blade Canopy Blade arm Canopy bottom cover (preassembled) Light kit mounting plate Hanger ball/downrod assembly Light kit Coupling cover Glass shade/decorative frame assembly Fan motor assembly... -
Page 7: Installation
Installation MOUNTING OPTIONS MOUNTING OPTIONS NOTE: WARNING: You may need a longer downrod to maintain proper To reduce the risk of fire, electric shock, or blade clearance when installing on a steep, sloped ceiling. personal injury, mount the fan to an outlet box marked The maximum angle allowable is 18°... -
Page 8: Assembly
Assembly Preparing the canopy Preparing the motor □ □ Remove the canopy bottom cover (C) from the canopy Remove the cotter pin (FF) and clevis pin (EE), and (B) by turning the canopy bottom cover (C) counter- loosen the two collar setscrews (GG) from the fan clockwise. -
Page 9: Hanging The Fan
Assembly — Hanging the Fan Hanging the fan from the Attaching the mounting bracket mounting bracket to the electrical box WARNING: To reduce the risk of fire, electric shock or WARNING: The tab in the ring must rest in the groove of other personal injury, mount the fan only to an outlet box or the hanger ball/downrod assembly (D). - Page 10 Assembly — Hanging the Fan (continued) Making the electrical connections Ground Black White conductor WARNING: To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring. WARNING: Check to see that all connections are tight, including ground, and that no bare wire is visible at the wire nuts (except for the ground wire).
- Page 11 Assembly — Hanging the Fan (continued) Attaching the canopy Installing the canopy bottom cover WARNING: Make sure the tab on the mounting bracket (A) NOTE: Adjust the canopy mounting screws (BB) as properly sits in the groove in the hanger ball/downrod necessary until the canopy (B) and canopy bottom cover (C) assembly (D) before attaching the canopy (B) to the mounting are snug.
-
Page 12: Attaching The Fan Blades
Assembly — Attaching the Fan Blades Attaching the blades to Fastening the blade the blade arms assemblies to the motor □ Attach the blades (G) to the blade arms (H) using the WARNING: To reduce the risk of personal injury, do not three blade attachment screws and rubber washers bend the blade arms (H) while installing, balancing the blades (CC). -
Page 13: Installing The Light Kit
Assembly — Installing the Light Kit Attaching the light kit mounting Attaching the light kit to plate to the mounting ring the light kit mounting plate □ Remove one of the three light kit mounting plate CAUTION: Before starting installation, disconnect the screws (HH) from the mounting ring (RR) and loosen power by turning off the circuit breaker or removing the fuse the other two screws. - Page 14 Assembly — Installing the Light Kit (continued) Installing the light bulbs and glass shade/decorative frame assembly CAUTION: Before starting installation, disconnect the power by turning off the circuit breaker or removing the fuse at the fuse box. Turning power off using the fan switch is not sufficient to prevent electric shock.
-
Page 15: Operation
Operation PULL CHAIN OPERATING INSTRUCTIONS PULL CHAIN OPERATING INSTRUCTIONS Install two pull chains and fobs (LL) onto the pull chains located in the light kit (J). Turn on the power and check the operation of the fan. The pull chain controls the fan speed as follows: 1 pull - High, 2 pulls - Medium, 3 pulls - Low, and 4 pulls - Off. -
Page 16: Care And Cleaning
Care and Cleaning Do Do Do not Do not □ Check the support connections, brackets, and blade □ Use water when cleaning. Water could damage the motor, attachments twice a year. Make sure they are secure. or the wood, or possibly cause an electrical shock. Because of the fan’s natural movement, some connections may become loose over time. - Page 17 Troubleshooting (continued) Problem Problem Solution Solution □ Check that all blade and blade arm screws are secure. □ Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a point on the ceiling above the tip of one of the blades. Measure from a point on the center of each blade The fan wobbles.
-
Page 18: Service Parts
Service Parts Part Part Description Description Part Part Description Description Mounting bracket (preassembled) Plastic wire nut Canopy Canopy mounting screw (preassembled) Canopy bottom cover (preassembled) Blade attachment screw and rubber washer Hanger ball/downrod assembly Blade arm screw and lock washer (preassembled) Coupling cover Clevis pin (preassembled) Fan motor assembly... - Page 19 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use. AL634NI0001-A...
