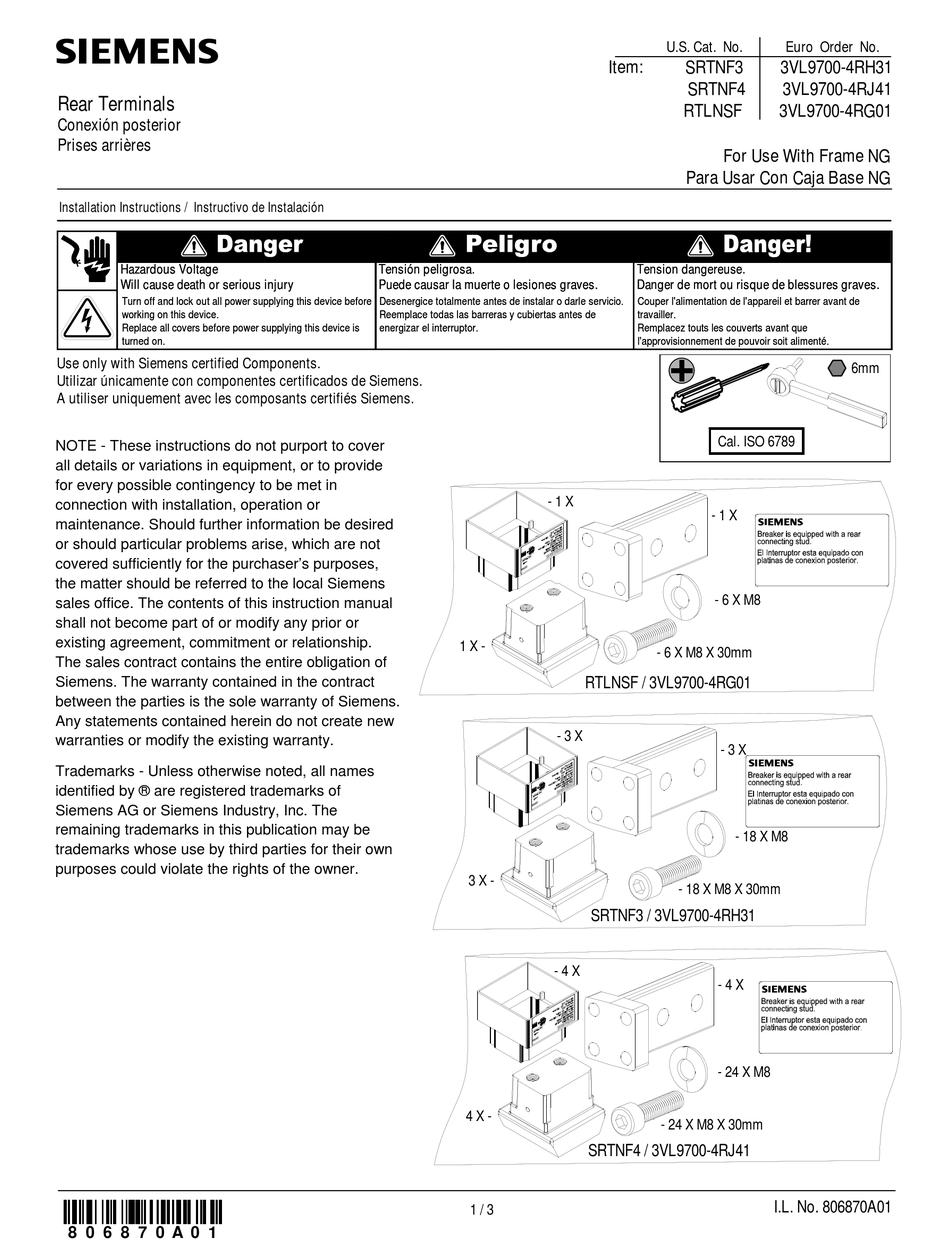

Siemens SRTNF3 Installation Instructions

s
Rear Terminals
Conexión posterior
Prises arrières
Installation Instructions / Instructivo de Instalación
Hazardous Voltage Hazardous Voltage
Will cause death or serious injury Will cause death or serious injury
Turn off and lock out all power supplying this device before Turn off and lock out all power supplying this device before
working on this device. working on this device.
Replace all covers before power supplying this device is Replace all covers before power supplying this device is
turned on. turned on.
Use only with Siemens certified Components.
Utilizar únicamente con componentes certificados de Siemens.
A utiliser uniquement avec les composants certifiés Siemens.
NOTE - These instructions do not purport to cover
all details or variations in equipment, or to provide
for every possible contingency to be met in
connection with installation, operation or
maintenance. Should further information be desired
or should particular problems arise, which are not
covered sufficiently for the purchaser's purposes,
the matter should be referred to the local Siemens
sales office. The contents of this instruction manual
shall not become part of or modify any prior or
existing agreement, commitment or relationship.
The sales contract contains the entire obligation of
Siemens. The warranty contained in the contract
between the parties is the sole warranty of Siemens.
Any statements contained herein do not create new
warranties or modify the existing warranty.
Trademarks - Unless otherwise noted, all names
identified by ® are registered trademarks of
Siemens AG or Siemens Industry, Inc. The
remaining trademarks in this publication may be
trademarks whose use by third parties for their own
purposes could violate the rights of the owner.
8 0 6 8 7 0 A 0 1
Tensión peligrosa. Tensión peligrosa.
Puede causar la muerte o lesiones graves. Puede causar la muerte o lesiones graves.
Desenergice totalmente antes de instalar o darle servicio. Desenergice totalmente antes de instalar o darle servicio.
Reemplace todas las barreras y cubiertas antes de Reemplace todas las barreras y cubiertas antes de
energizar el interruptor. energizar el interruptor.
- 1 X
1 X -
- 3 X
3 X -
- 4 X
4 X -
1 / 3
U.S. Cat. No.
Item: SRTNF3
SRTNF4
RTLNSF
For Use With Frame NG
Para Usar Con Caja Base NG
Tension dangereuse. Tension dangereuse.
Danger de mort ou risque de blessures graves. Danger de mort ou risque de blessures graves.
Couper l'alimentation de l'appareil et barrer avant de Couper l'alimentation de l'appareil et barrer avant de
travailler. travailler.
Remplacez touts les couverts avant que Remplacez touts les couverts avant que
l'approvisionnement de pouvoir soit alimenté. l'approvisionnement de pouvoir soit alimenté.
Cal. ISO 6789
- 1 X
- 6 X M8
- 6 X M8 X 30mm
RTLNSF / 3VL9700-4RG01
- 3 X
- 18 X M8
- 18 X M8 X 30mm
SRTNF3 / 3VL9700-4RH31
- 4 X
- 24 X M8
- 24 X M8 X 30mm
SRTNF4 / 3VL9700-4RJ41
Euro Order No.
3VL9700-4RH31
3VL9700-4RJ41
3VL9700-4RG01
6mm
I.L. No. 806870A01
