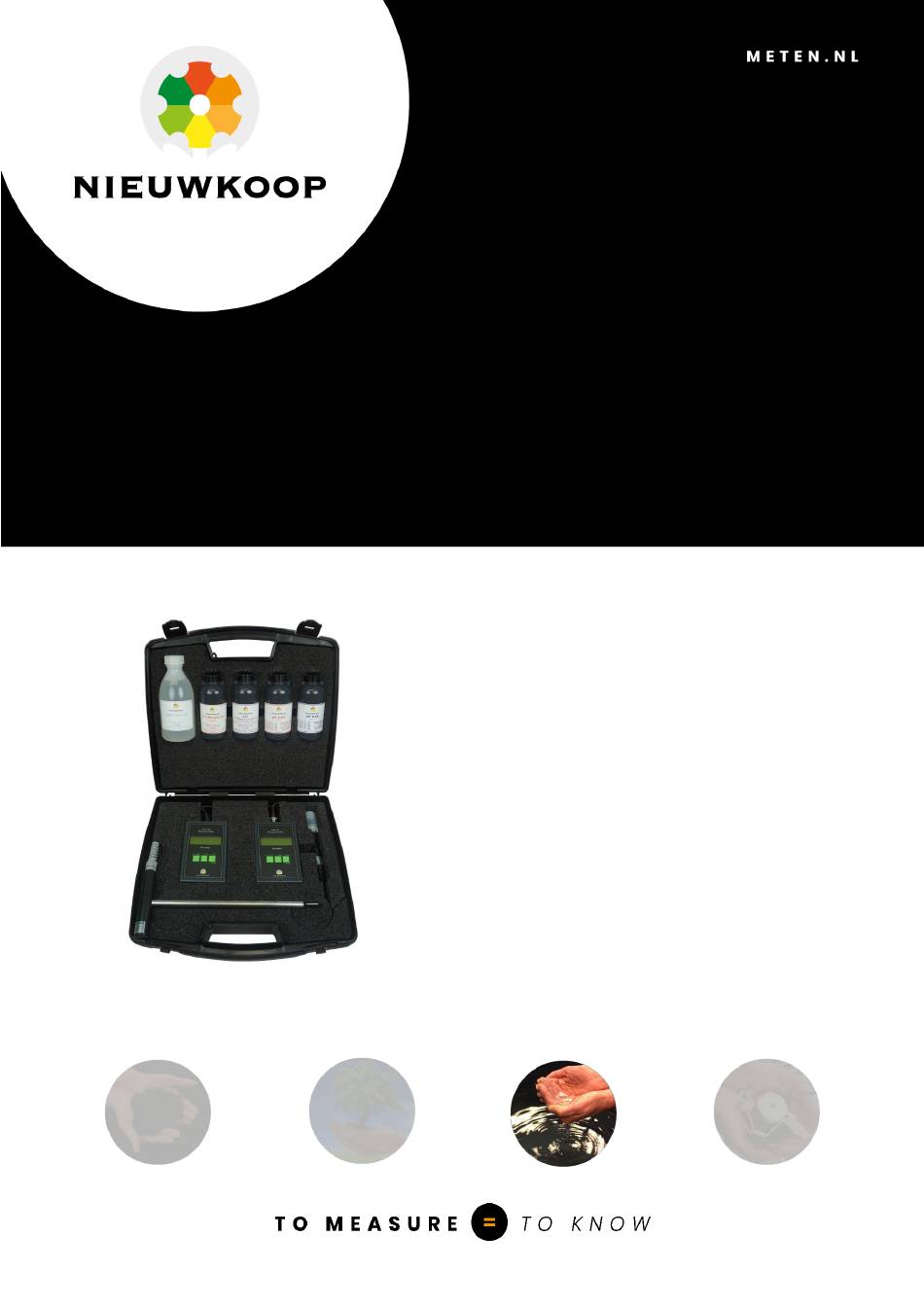

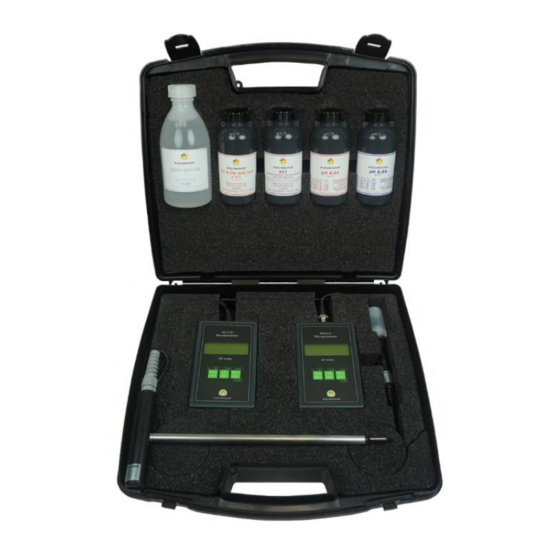

  • Page 1 USER MANUAL EP1310 EC-METER EC1210 AND PH-METER PH1210...

  • Page 2: Table Of Contents

    EP1310 EC-METER EC1210 AND PH-METER PH1210 _____________________________________________________________________________________________ Index EC1210 PRODUCT PRESENTATION..........................................4 Functional purpose of the unit ..................................... 4 Functional principles ........................................4 Sensors and accessories ......................................4 GENERAL WARNINGS AND INFORMATION FOR ALL USERS ..........................5 Warranty ................................................5 After sales service ..........................................
  • Page 3 EP1310 EC-METER EC1210 AND PH-METER PH1210 _____________________________________________________________________________________________ PH1210 PRODUCT PRESENTATION ............................................19 Functional purpose of the unit ....................................... 19 Functional principles ........................................... 19 Sensors and accessories ........................................20 GENERAL WARNINGS AND INFORMATION FOR ALL USERS ............................. 21 Warranty ..................................................21 After sale service ..............................................

  • Page 4: Product Presentation

    EP1310 EC-METER EC1210 AND PH-METER PH1210 _____________________________________________________________________________________________ PRODUCT PRESENTATION FUNCTIONAL PURPOSE OF THE EC1210 The basic system for EC and temperature measuring is made of three parts: the meter described in this instruction manual; a conductivity cell with 2 electrodes...

  • Page 5: General Warnings And Information For All Users

    Please take a look at the terms and conditions described on the Warranty Certificate at the end of the manual. 2.2 AFTER SALES SERVICE Nieuwkoop offers to all of its Customers the following services: a free of charge Technical Assistance over the phone for problems regarding installation, calibration and regular maintenance;...

  • Page 6: Instruction Manual Contents

    EP1310 EC-METER EC1210 AND PH-METER PH1210 _____________________________________________________________________________________________ INSTRUCTION MANUAL CONTENTS This chapter describes the manual and gives suggestions to all users on how to read it and use it. The manual is written according to the following norms: UNI 10893 “Instructions for use”.

  • Page 7: How To Read The Instruction Manual

    EP1310 EC-METER EC1210 AND PH-METER PH1210 _____________________________________________________________________________________________ 3.3 HOW TO READ THE INSTRUCTION MANUAL The manual includes all necessary information to fully comprehend the product, to use it and preserving it, and finally to achieve the performances for which You have selected it and purchased it.

  • Page 8: Specifications

    EP1310 EC-METER EC1210 AND PH-METER PH1210 _____________________________________________________________________________________________ SPECIFICATIONS FUNCTIONAL SPECIFICATION Display The instrument has an alphanumeric LCD display 8x1 characters. The display shows the measures values and the messages to the operator. After the switching-off time the display will switch off automatically.

  • Page 9: Technical Specifications

    EP1310 EC-METER EC1210 AND PH-METER PH1210 _____________________________________________________________________________________________ 4.2 TECHNICAL SPECIFICATIONS The DISP number next to the standard default shows the location of the data in the menu. SETUP parameters are displayed as: “S x.y” Default DISP 1.0 SECONDARY MEASURE TEMPERATURE EC (conductivity) 1.01...
  • Page 10 EP1310 EC-METER EC1210 AND PH-METER PH1210 _____________________________________________________________________________________________ Default DISP 2.0 SECONDAIR MEASURE TEMPERATURE Input EC1210: RTD Pt1000 Cables: 3-wire direct on PCB Temperature unit : °C / °F °C S3.0 Temp. Compensation: EC1210 automatic with sensor EC5015 Temperature range: -10.0 / 110.0°C 14.0 / 230.0 °F...
  • Page 11 EP1310 EC-METER EC1210 AND PH-METER PH1210 _____________________________________________________________________________________________ 6.0 KEYBOARD 3 Key push button: Push < 3 seconds Push > 3 seconds 1. MODE / ON-ES 2. LOG / INCR Z.CAL 3. SET-UP / SHIFT S.CAL ENTER KEY push button functionality: 1.

  • Page 12: Operating Procedures

    EP1310 EC-METER EC1210 AND PH-METER PH1210 _____________________________________________________________________________________________ OPERATING PROCEDURES OPERATING INSTRUCTIONS 5.1.1. Main measuring EC measuring The model EC1210 is delivered with sensor already connected. Immerse the sensors in the sample. Press the key [MODE]. The meter will switch ON and it will show the scale of the last calibration and the date entered at the end of the last zero or sensitivity calibration or reset.

  • Page 13: Ec Calibration

    EP1310 EC-METER EC1210 AND PH-METER PH1210 _____________________________________________________________________________________________ 5.1.2. EC calibration The meter can perform the manual/automatic calibration with the recognition of the following KCl standard solutions: (only for 2000 μS, 20 mS, 200 mS scales). The recognition is performed when the reading is within ± 30% of the standard solution value.
  • Page 14 EP1310 EC-METER EC1210 AND PH-METER PH1210 _____________________________________________________________________________________________ Sensitivity calibration Switch-on the meter and dip the sensor into the standard solution. [S.CAL] push the key for 3 seconds. It appears the D1.2 display and message Sens Cal alternate to the EC value.
  • Page 15 EP1310 EC-METER EC1210 AND PH-METER PH1210 _____________________________________________________________________________________________ Manual temperature This calibration can be done when the Pt1000 sensor is not connected or malfunctioning and the user wants to adjust the manual temperature compensation value. [MODE] push the key from the main display in order to reach the D2.0 display.

  • Page 16: Data Logger

    EP1310 EC-METER EC1210 AND PH-METER PH1210 _____________________________________________________________________________________________ 5.1.3 Data Logger This function allows the memorization and the reading of the memorized measuring values. [LOG] push the key to memorize the actual value of the EC and the temperature. The meter will memorize the Tref. and the temperature coefficient as well.
  • Page 17 EP1310 EC-METER EC1210 AND PH-METER PH1210 _____________________________________________________________________________________________ Response time The meter is delivered with response time of 2 seconds and it can be modified up to 10 seconds by means of the following procedure. [SHIFT] push the key from the main display. The message Set-up will appear.

  • Page 18: Maintenance Of The Unit

    EP1310 EC-METER EC1210 AND PH-METER PH1210 _____________________________________________________________________________________________ Switching off time The meter will switch off automatically if any keys is not pressed within the time configured in the Set- up menu. The meter is delivered with the automatic switching off time of 90 seconds but it can be modified to 30/600 seconds by means of the following procedure.
  • Page 19 EP1310 EC-METER EC1210 AND PH-METER PH1210 _____________________________________________________________________________________________ PRODUCT PRESENTATION FUNCTIONAL PURPOSE OF THE PH1210 The basic system for pH and temperature measuring is made of three parts: the meter described in this instruction manual; a pH sensor a Pt1000 temperature sensor The instrument has the necessary electric circuits and firmware to perform the following functions: 6) as the proper sensor is connected, it displays the pH and temperature values;...
  • Page 20 EP1310 EC-METER EC1210 AND PH-METER PH1210 _____________________________________________________________________________________________ SENSORS AND ACCESSORIES Electrodes PH5110 pH sensor, PVDF body with glass point, 1 m cable + BNC Temperature probes TP5710 Pt1000 probe in epoxy, 1.5 m cable + stereo jack Optional accessories ZZ7310 ABC sample cup for measurements in soil.
  • Page 21 WARRANTY This product is guaranteed for all manufacturing defects. 2.2 AFTER SALES SERVICE Nieuwkoop offers to all of its Customers the following services: a free of charge Technical Assistance over the phone for problems regarding installation, calibration and regular maintenance;...
  • Page 22 EP1310 EC-METER EC1210 AND PH-METER PH1210 _____________________________________________________________________________________________ INSTRUCTION MANUAL CONTENTS This chapter describes the manual and gives suggestions to all users on how to read it and use it. The manual is written according to the following norms: UNI 10893 “Instructions for use”.
  • Page 23 EP1310 EC-METER EC1210 AND PH-METER PH1210 _____________________________________________________________________________________________ 3.3 HOW TO READ THE INSTRUCTION MANUAL The manual includes all necessary information to fully comprehend the product, to use it and preserving it, and finally to achieve the performances for which you have selected it and purchased it.
  • Page 24 The temperature display will show the messages °CM or °FM and the manual value. Calibration During the pH calibration, the meter recognize automatically the Nieuwkoop buffer solution pH 4 – pH 7 – pH 9. Power supply The meter is operated by a 9VDC battery.
  • Page 25 EP1310 EC-METER EC1210 AND PH-METER PH1210 _____________________________________________________________________________________________ 4.2 TECHNICAL SPECIFICATIONS The DISP number next to the default values shows the location of data in the menu. SETUP parameters are indicated by : “S x.y” | DEFAULT DISP MAIN MEASURE SENSOR TYPE | pH S1.0...
  • Page 26 EP1310 EC-METER EC1210 AND PH-METER PH1210 _____________________________________________________________________________________________ | DEFAULT SET-UP PARAMETERS P/N and Release FW: PH1210 Rev 1.XX S1.0 Sensor type: | pH S2.0 Response time 90%: 0 / 10 s | 2 s S3.0 Temperature unit: °C / °F | °C...
  • Page 27 EP1310 EC-METER EC1210 AND PH-METER PH1210 _____________________________________________________________________________________________ KEYBOARD 3 Key push button: 1) MODE/ON-ES 2) LOG/INCR Z.CAL RESET 3) SET-UP SHIFT S.CAL ENTER RESET KEY push button functionality: 1) MODE/ON-ES (OFF) - ON Instrument switch ON - ESC Escape - MODE Scrolling display - OFF Instrument switch OFF for action >3 seconds...
  • Page 28 The meter must be configured for pH measuring. The meter recognize automatically the Nieuwkoop buffer solutions at values pH 4 – pH 7 – pH 9. Before performing the calibration through the buffer solutions, verify that the glass membrane of the sensor has been kept wet while in storage.
  • Page 29 EP1310 EC-METER EC1210 AND PH-METER PH1210 _____________________________________________________________________________________________ Zero calibration Dip the sensor into the buffer solution pH=7 to perform the first point calibration (zero calibration). [Z.CAL] push the key for 3 seconds. It appears the D1.1 display and message Zero cal alternate to the pH value.
  • Page 30 EP1310 EC-METER EC1210 AND PH-METER PH1210 _____________________________________________________________________________________________ If the memorized buffer solution value doesn’t correspond to the buffer solution used for the calibration, proceed as follow: [SHIFT] push the key to read the memorized buffer solution value with the flashing cursor under the digit XX.XX pH...
  • Page 31 EP1310 EC-METER EC1210 AND PH-METER PH1210 _____________________________________________________________________________________________ Manual temperature This calibration can be done when the Pt1000 sensor is not connected or malfunctioning and the user wants to adjust the manual temperature compensation value. [MODE] push the key from the main display in order to reach the D2.0 display.
  • Page 32 EP1310 EC-METER EC1210 AND PH-METER PH1210 _____________________________________________________________________________________________ 5.1.5 SET-UP This function allow the user to: choose the filter software response time select the temperature measuring unit °C/°F choose the time of the automatic switch-off Sensor selection The instrument is delivered with the pH configuration...
  • Page 33 EP1310 EC-METER EC1210 AND PH-METER PH1210 _____________________________________________________________________________________________ Switching off time The meter will switch off automatically if any keys is not pressed within the time configured in the SET UP menu. The meter is delivered with the automatic switching off time of 90 seconds but it can be modified to 30/600 seconds by means of the following procedure.
