Summary of Contents for NIEUWKOOP GT1050
- Page 1 USER MANUAL GT1050 – GT1060 /TEMP/RH-METER...
-
Page 2: Material Supplied
CO The CO measurement to stop the beeps) and the readings won’t be displayed. Please (press any key but replace with fresh batteries or connect with an adaptor. GT1050 GT1060... -
Page 3: Lcd Display

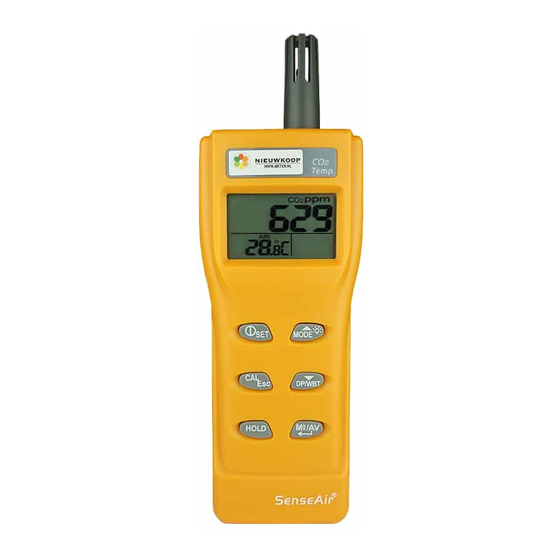

CGT1050 – GT1060 /TEMP/RH METER _____________________________________________________________________________________________ LCD DISPLAY Symbols: Time weighted average( 8 hours) STEL Short-term exposure limit (15 minutes weighted average) HOLD Readings are freezed unchanged MIN/MAX Minimum/Maximum readings Low battery indicator Dew point temperature(GT1060 RH) Air temperature Wet bulb temperature(GT1060 RH) Unit of relative humidity oE (C/F) Celsius/Fahrenheit... -
Page 4: Operation
30 seconds countdown (Fig.2) for instrument warm up, then enters normal mode with current , temperatures, and humidity(GT1060 RH) readings displayed (Fig.3). Model GT1050 Model GT1060 RH The meter starts measurement when power on and update readings every second. In the condition of operating environment change (ex. - Page 5 CGT1050 – GT1060 /TEMP/RH METER _____________________________________________________________________________________________ Hold down for more than 1 second to activate and cancel backlight function. Under normal mode press to see the minimum, maximum, and weighted average readings. Each press of it displays MIN, MAX, STEL, TWA in sequence and returns to normal mode.
-
Page 6: Auto Power Off
CGT1050 – GT1060 /TEMP/RH METER _____________________________________________________________________________________________ The meter features audible alarm to give warnings when CO concentration exceeds the limit. (See P1.0 in setup for setting alarm threshold). It emits beeps(Abt.80dB)when CO level goes over the set value and stops when any key (but ) was pressed or readings fall below the set value. - Page 7 CGT1050 – GT1060 /TEMP/RH METER _____________________________________________________________________________________________ CALIBRATION The meter defaults to be calibrated manually in the ambient air where CO concentration is around 400ppm. CAUTION: Do not calibrate the meter in the air with unknown CO concentration. Otherwise, it will be calibrated as 400ppm by default and leads to inaccurate measurements.
- Page 8 CGT1050 – GT1060 /TEMP/RH METER _____________________________________________________________________________________________ Plug the sensor probe into 33% salt bottle. Hold down under normal mode to enter 33% calibration (Fig.15). “CAL” and calibrating value (32.7% if at 25 C) are blinking on the LCD with current temperature at the left.
-
Page 9: Troubleshooting
The meter can do PC link for on-line logging and data analysis via RS232 interface and software. The protocol is as follows. A. 9600 bps, 8 data bits, no parity. B. B.Format (ASCII) Model GT1050 Cxxxxppm:Txxx.xC(F) LRC CRLF Description: $CO2:Air LRC CRLF Model GT1060 Cxxxxppm:Txxx.xC(F):Hxx.x%: dxxx.xC(F):wxxx.xC(F) LRC CRLF Description: $CO... -
Page 10: Specification
CGT1050 – GT1060 /TEMP/RH METER _____________________________________________________________________________________________ SPECIFICATION Model GT1050 Model GT1060... -
Page 11: Co2 Levels And Guidelines
RA (Return Authorization), please include data regarding the defective reason, the meters are to be returned along with good packing to prevent any damage in delivery and insured against possible damage or loss. Nieuwkoop BV Aalsmeerderweg 249-s 1432 CM Aalsmeer-Holland Tel.
