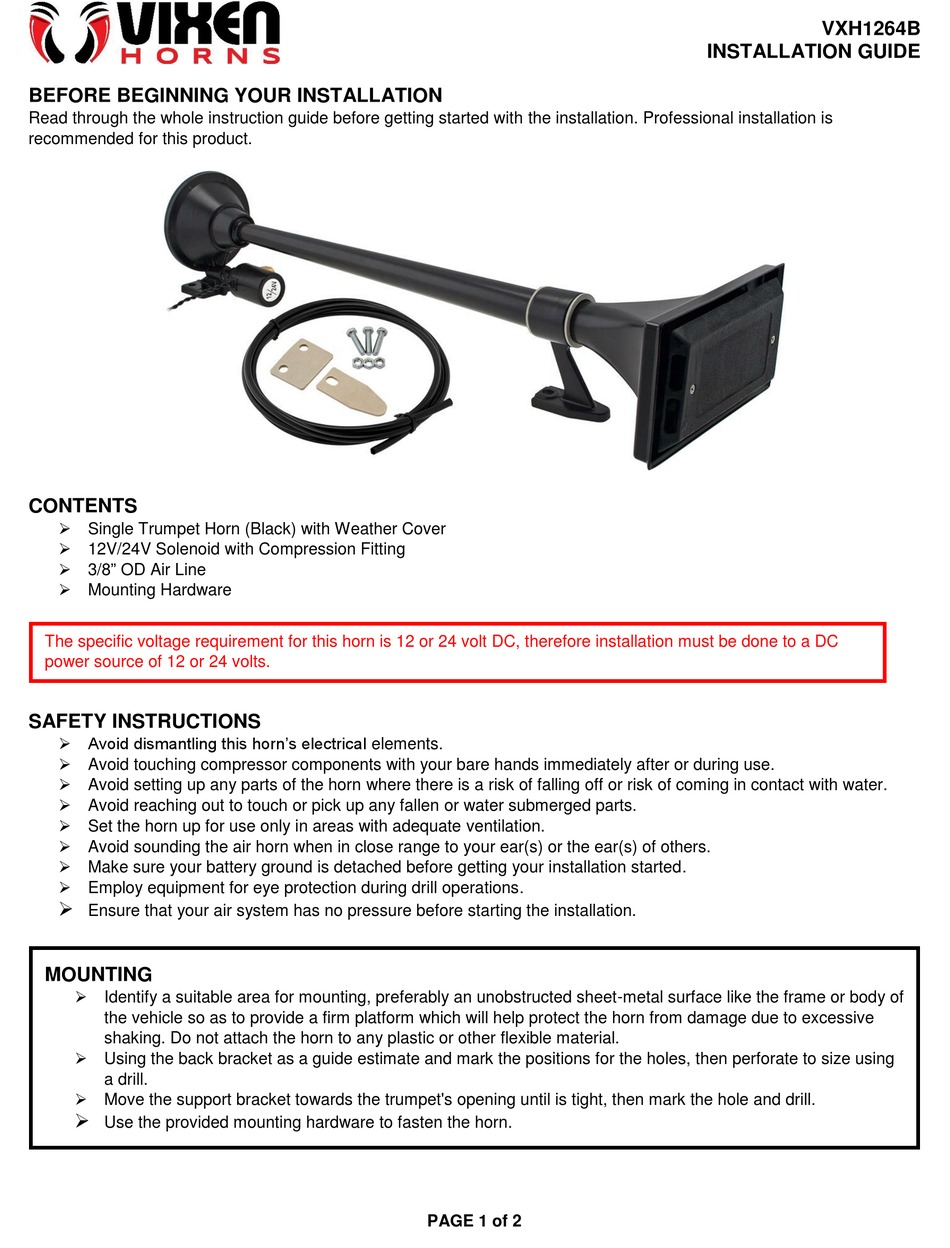

Vixen Horns VXH1264B Installation Manual

BEFORE BEGINNING YOUR INSTALLATION

Read through the whole instruction guide before getting started with the installation. Professional installation is
recommended for this product.

CONTENTS

 Single Trumpet Horn (Black) with Weather Cover
 12V/24V Solenoid with Compression Fitting
 3/8" OD Air Line
 Mounting Hardware
The specific voltage requirement for this horn is 12 or 24 volt DC, therefore installation must be done to a DC
power source of 12 or 24 volts.

SAFETY INSTRUCTIONS

 Avoid dismantling this horn's electrical elements.
 Avoid touching compressor components with your bare hands immediately after or during use.
 Avoid setting up any parts of the horn where there is a risk of falling off or risk of coming in contact with water.
 Avoid reaching out to touch or pick up any fallen or water submerged parts.
 Set the horn up for use only in areas with adequate ventilation.
 Avoid sounding the air horn when in close range to your ear(s) or the ear(s) of others.
 Make sure your battery ground is detached before getting your installation started.
 Employ equipment for eye protection during drill operations.

Ensure that your air system has no pressure before starting the installation.

MOUNTING

 Identify a suitable area for mounting, preferably an unobstructed sheet-metal surface like the frame or body of
the vehicle so as to provide a firm platform which will help protect the horn from damage due to excessive
shaking. Do not attach the horn to any plastic or other flexible material.
 Using the back bracket as a guide estimate and mark the positions for the holes, then perforate to size using
a drill.
 Move the support bracket towards the trumpet's opening until is tight, then mark the hole and drill.

Use the provided mounting hardware to fasten the horn.
PAGE 1 of 2
VXH1264B
INSTALLATION GUIDE
