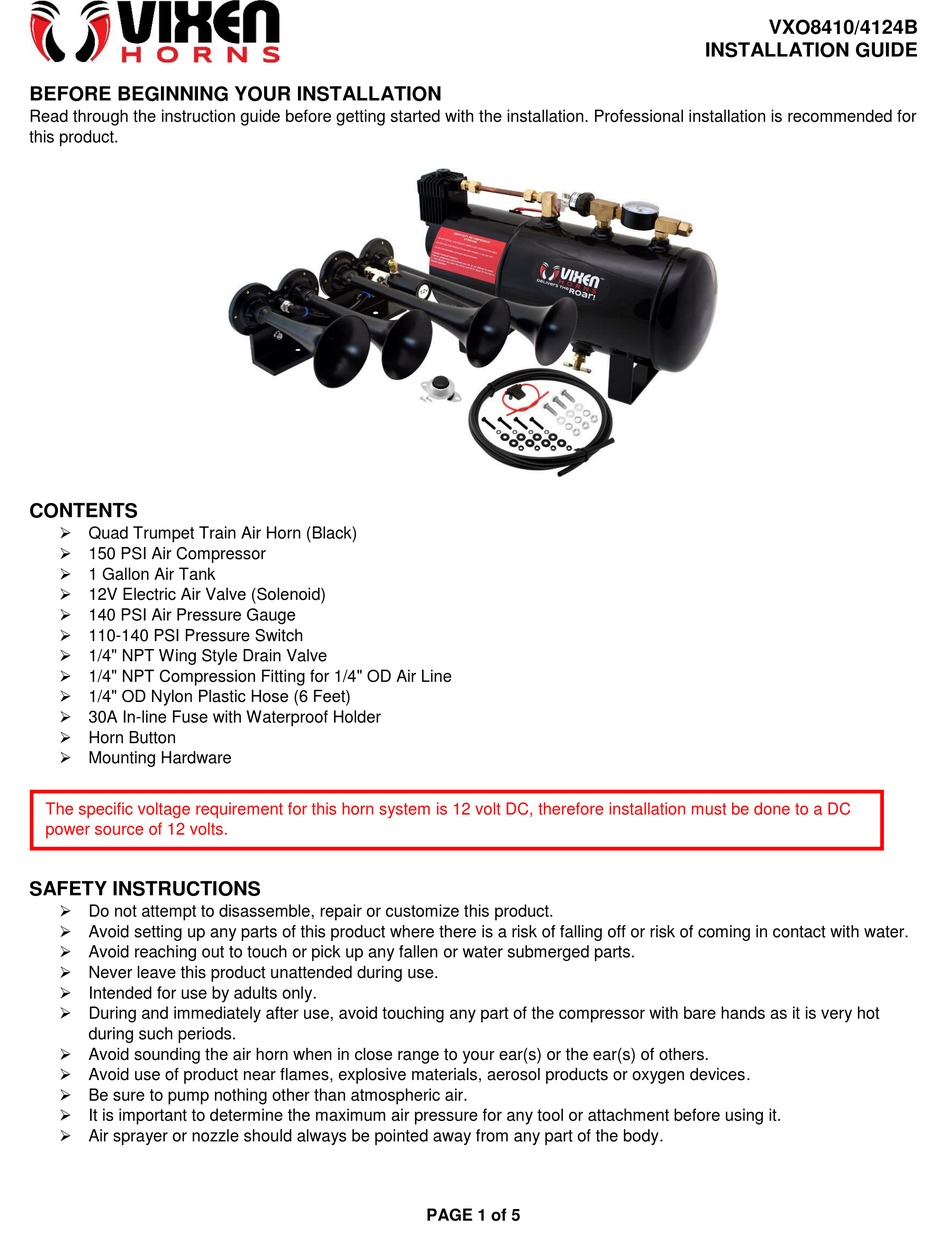

Vixen Horns VXO8410/4124B Installation Manual

BEFORE BEGINNING YOUR INSTALLATION
Read through the instruction guide before getting started with the installation. Professional installation is recommended for
this product.

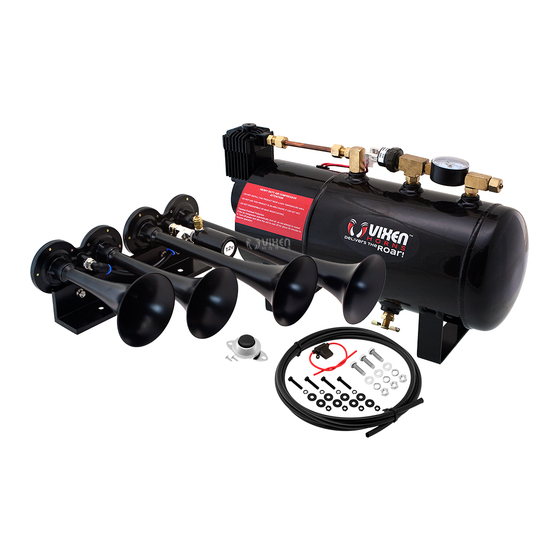

CONTENTS
 Quad Trumpet Train Air Horn (Black)
 150 PSI Air Compressor
 1 Gallon Air Tank
 12V Electric Air Valve (Solenoid)
 140 PSI Air Pressure Gauge
 110-140 PSI Pressure Switch
 1/4" NPT Wing Style Drain Valve
 1/4" NPT Compression Fitting for 1/4" OD Air Line
 1/4" OD Nylon Plastic Hose (6 Feet)
 30A In-line Fuse with Waterproof Holder
 Horn Button
 Mounting Hardware
The specific voltage requirement for this horn system is 12 volt DC, therefore installation must be done to a DC
power source of 12 volts.

SAFETY INSTRUCTIONS

 Do not attempt to disassemble, repair or customize this product.
 Avoid setting up any parts of this product where there is a risk of falling off or risk of coming in contact with water.
 Avoid reaching out to touch or pick up any fallen or water submerged parts.
 Never leave this product unattended during use.
 Intended for use by adults only.
 During and immediately after use, avoid touching any part of the compressor with bare hands as it is very hot
during such periods.
 Avoid sounding the air horn when in close range to your ear(s) or the ear(s) of others.
 Avoid use of product near flames, explosive materials, aerosol products or oxygen devices.
 Be sure to pump nothing other than atmospheric air.
 It is important to determine the maximum air pressure for any tool or attachment before using it.
 Air sprayer or nozzle should always be pointed away from any part of the body.
PAGE 1 of 5
