DwarfConnection DC-LINK-LR2 Manual page 7

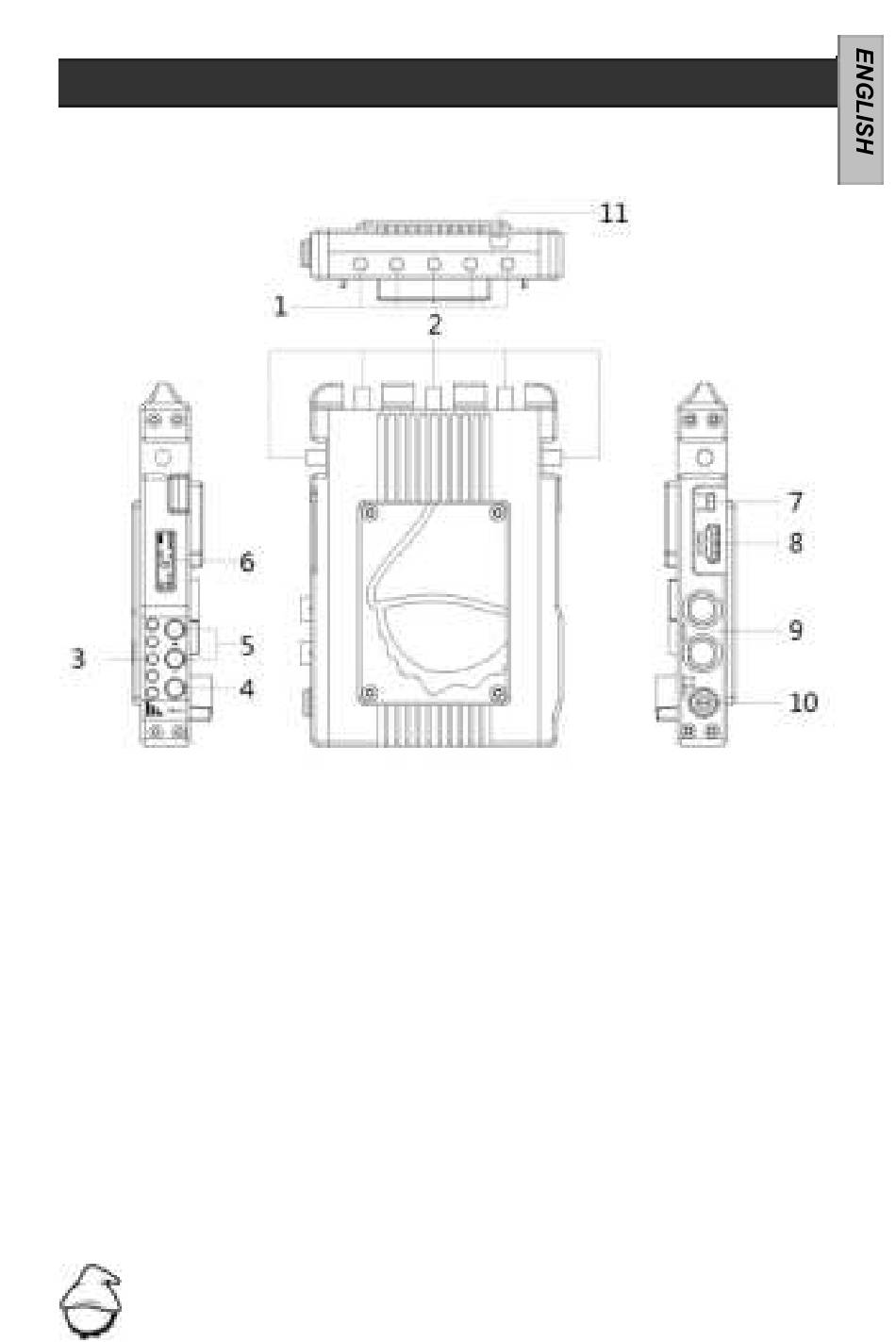

Product Description
Receiver:
¼" Tripod Mount
1)
Antenna Connection: RP-SMA (male) Connector
2)
RSSI Status Display: Signal Strength
3)
4) Menu button: Unlock/lock screen
Control button: Press to change the channels
5)
LCD screen: Display channel, BAT voltage, temperature
6)
info.
ON-OFF: Power Switch
7)
HDMI-OUT: HDMI Output (Type A Female Connector)
8)
9)
Dual SDI-OUT: 3G/HD/SD-SDI Output, (BNC Female Connector)
10) DC-IN: 9.0 – 18.0V DC
11) Mini USB: For firmware upgrade use.
