Summary of Contents for Progress Lighting AirPro P250071

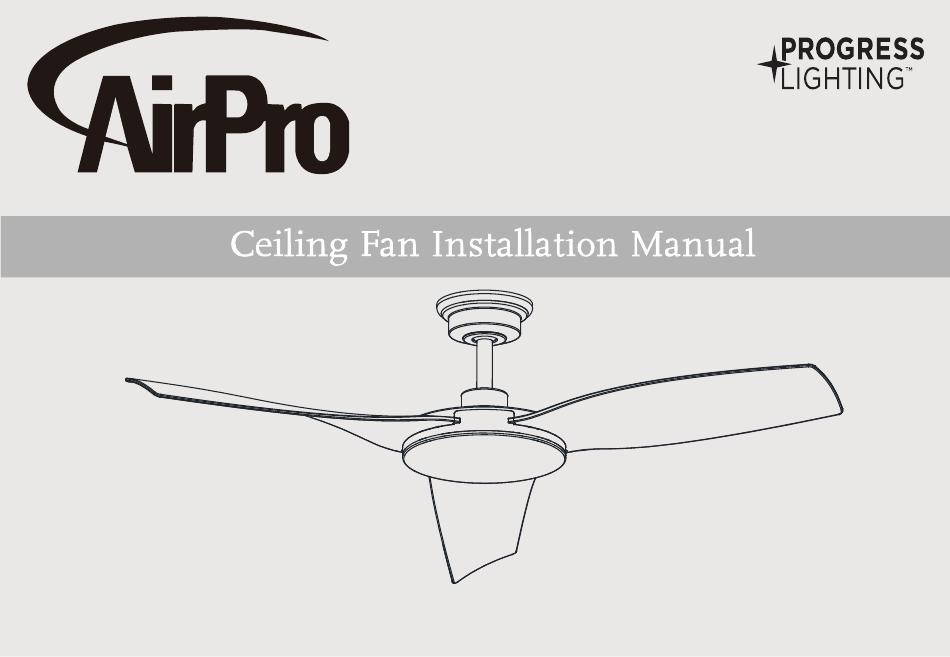

- Page 1 ® P250071 93153460_A...
- Page 2 Limited Lifetime Warranty Date Purchased Progress Lighting fan motors are warranted to the original purchaser to be free of electrical and/or mechanical defects for so long as the original purchaser owns the fan. Pull chain switches, reverse switches, capacitors and...
-
Page 3: Table Of Contents
Safety Rules Unpacking Your Fan Installing Your Fan Making the Electrical Connections Operating Your Fan Care of Your Fan Troubleshooting Specifications Table of Contents... -
Page 4: Safety Rules
READ AND SAVE THESE INSTRUCTIONS To reduce the risk of electric shock, insure electricity has been To avoid personal injury or damage to the fan and other items, turned off at the circuit breaker or fuse box before beginning. be cautious when working around or cleaning the fan. All wiring must be in accordance with the National Electrical Do not use water or detergents when cleaning the fan or fan Code ANSI/NFPA 70-1999 and local electrical codes. -
Page 5: Unpacking Your Fan
Unpack your fan and check the contents. You should have the following items: a. Blade attachment hardware (10 screws) b. Electrical hardware and balancing kit 1. Mounting Bracket (inside canopy) 5. Fan Motor Assembly (1 plastic wire connector, blade balancing 2. -
Page 6: Installing Your Fan
Tools Required Figures 1, 2, and 3 are examples of different ways to mount the electrical box. Phillips screw driver or straight slotted screw driver, adjustable wrench, step ladder, and wire cutters. Figure 3 Mounting Options Note: You may need a longer downrod to maintain proper blade clearance when If there isn’t an existing electrical box, then installing on a steep, sloped ceiling. - Page 7 Attaching the Fan Blades Screw Screw Screw Screw 1. Remove the three screws from the top Blade of fan motor assembly , then take off Screw the top housing (Figure 5) 2. Attach the blades to the fan motor Screw assembly by aligning the notches on the blades with alignment post on the flywheel and put the blade on...
- Page 8 Hanging the Fan 7. Re-tighten the set screws on the collar on top of the motor housing. Turn Canopy Ring to Remove REMEMBER to turn off the power. Follow 8. Make sure the grommet is properly installed the steps below to hang your fan properly. in the collar cover, then slide the collar cover on the downrod until it rests on the motor NOTE: This fan is recommended for...
-
Page 9: Making The Electrical Connections
Installing Fan to Installing the the Electrical Box Receiver into the Mounting Bracket WHEN USING THE STANDARD BALL/DOWNROD 1. Position the house supply wires to one MOUNTING, THE TAB IN THE RING AT THE BOTTOM OF THE MOUNTING BRACKET MUST side of the slide-on mounting bracket;... - Page 10 Wiring the Receiver to SUPPLY CIRCUIT the Household Wiring 1. Connect the green wire to the household ground wires using a wire connecting nut. BLACK WHITE 2. Connect the receiver black wire to the household black wire using a wire GREEN Remote connecting nut.
- Page 11 Finishing the Fan 1. Check that all blade screws are secure. Installation 2. Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a point on the ceiling STANDARD CEILING MOUNTING above the tip of one of the blades. Measure from a point on the center of each blade to the point on the ceiling.
- Page 12 Preparing the Remote Mounting the remote Control control holder NOTE: The remote control has already NOTE: Screw wall anchors are included been paired to the ceiling fan for your for extra support. The included screws are convenience. If you have two of the designed to screw easily into the wall.
-
Page 13: Operating Your Fan
Remote Control Timer: Timer While the fan is on press 2h - turns on a 2 hour run timer. Comfort Comfort While the fan is on press 4h - turns on a 4 hour run timer. Breeze Breeze While the fan is on press 8h - turns on a 8 hour run timer. (speeds 1-3) (speeds 4-6) Comfort Breeze (speeds 1-3):... -
Page 14: Care Of Your Fan
Troubleshooting Care of Your Fan Here are some suggestions to help you Problem Solution maintain your fan. Check main and branch circuit fuses or breakers Fan will not start 1. Because of the fan’s natural movement, Check line wire connections to the fan and switch wire connections in some connections may become loose. -
Page 15: Specifications
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ©2017 Progress Lighting, Inc. 701 Millennium Blvd., Greenville, SC 29607 12.
