Summary of Contents for Progress Lighting AirPro P250003

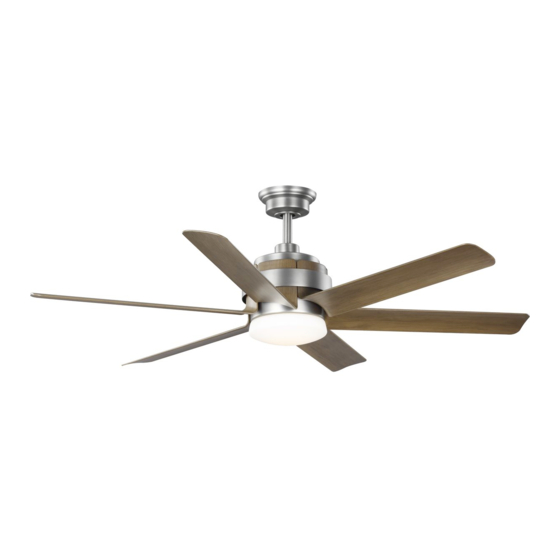

- Page 1 ® P250003...
- Page 2 Limited Lifetime Warranty Date Purchased Progress Lighting fan motors are warranted to the original purchaser to be free of electrical and/or mechanical defects for so long as the original purchaser owns the fan. Pull chain switches, reverse switches, capacitors and...
-
Page 3: Table Of Contents
Safety Rules Unpacking Your Fan Installing Your Fan Setting the Codes Making the Electrical Connections Operating Your Fan Care of Your Fan Troubleshooting Specifications Table of Contents... -
Page 4: Safety Rules
READ AND SAVE THESE INSTRUCTIONS To reduce the risk of electric shock, insure electricity To avoid personal injury or damage to the fan and other has been turned off at the circuit breaker or fuse box items, be cautious when working around or before beginning. -
Page 5: Unpacking Your Fan
Unpack your fan and check the contents. You should have the following items: 1. Mounting Bracket (inside canopy) 7. Decorative ring a. Blade attachment hardware (25 screws) 2. 6” Ball/Downrod Assembly (hanger pin 8. Light Kit Pan b. Electrical hardware and Balancing kit and locking pin pre-attached) 9. -
Page 6: Installing Your Fan
Tools Required Figures 1, 2, and 3 are examples of different ways to mount the electrical box. Phillips screw driver or straight slotted screw driver, adjustable wrench, step ladder, and wire cutters. Figure 3 Mounting Options Note: You may need a longer downrod to maintain proper blade clearance when If there isn’t an existing electrical box, then installing on a steep, sloped ceiling. - Page 7 Attaching the Fan Blades Attaching the Decorative Blade Screws Ring 1. Put the fan upside -down as shown. Attach the blades to the fan motor 1. Remove the three screws from the tab of assembly by aligning the notches on fan-motor assembly.
- Page 8 Hanging the Fan 6. Align the holes at the bottom of the Turn Canopy to Remove downrod with the holes in the collar on REMEMBER to turn off the power. Follow top of the motor housing. (Figure 10 ) the steps below to hang your fan properly. 7.
- Page 9 Installing Fan to Connecting the Safety the Electrical Box Cable UL Listed Electrical 1. Turn the wood screw (LL)(not provided) into the ceiling. 1. Pass the 120-volt supply wires through the center hole in the ceiling mounting bracket Ceiling 2. Place the looped end of the safety cable (S) Mounting as shown in Figure 11.
- Page 10 Installing the Wiring the Fan to the SUPPLY CIRCUIT Receiver into the Receiver Mounting Bracket 1. If using the 6 in. ball downrod assembly BLACK WHITE provided, wire the receiver to the fan wires 1. Position the house supply wires to one side GREEN Remote by connecting the molded adaptor plug...
- Page 11 Finishing the Fan Blade Balancing Installation Touching All blades are grouped by weight. Because Ceiling natural woods vary in density, the fan may STANDARD CEILING MOUNTING wobble even though the blades are weight matched. 1. Align the locking slots of the ceiling canopy with the two screws in the The following procedure should correct most mounting plate.
- Page 12 Installing the Light Kit 4. Push the light kit fitter assembly up so that the two loosened screw heads fit into Pan/Light Kit Fitter the keyhole slots. Turn the light kit fitter Assembly/ Glass Bowl assembly clockwise, tighten the screws. Re- install the screw that was removed in step 3 and tighten firmly.
- Page 13 Preparing the Remote Control NOTE: The remote control has already been paired to the ceiling fan for your convenience. If you have two of the same model fans in your home , please follow the steps below to control each fan independently.
-
Page 14: Operating Your Fan
Remote Control Timer: Timer While the fan is on press 2h - turns on a 2 hour run timer. Forward/ Comfort While the fan is on press 4h - turns on a 4 hour run timer. Reverse Breeze While the fan is on press 8h - turns on an 8 hour run timer. -
Page 15: Care Of Your Fan
Troubleshooting Care of Your Fan Here are some suggestions to help you Problem Solution maintain your fan. Check main and branch circuit fuses or breakers Fan will not start 1. Because of the fan’s natural movement, Check line wire connections to the fan and switch wire connections in some connections may become loose. -
Page 16: Specifications
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ©2017 Progress Lighting, Inc. 701 Millennium Blvd.,...
