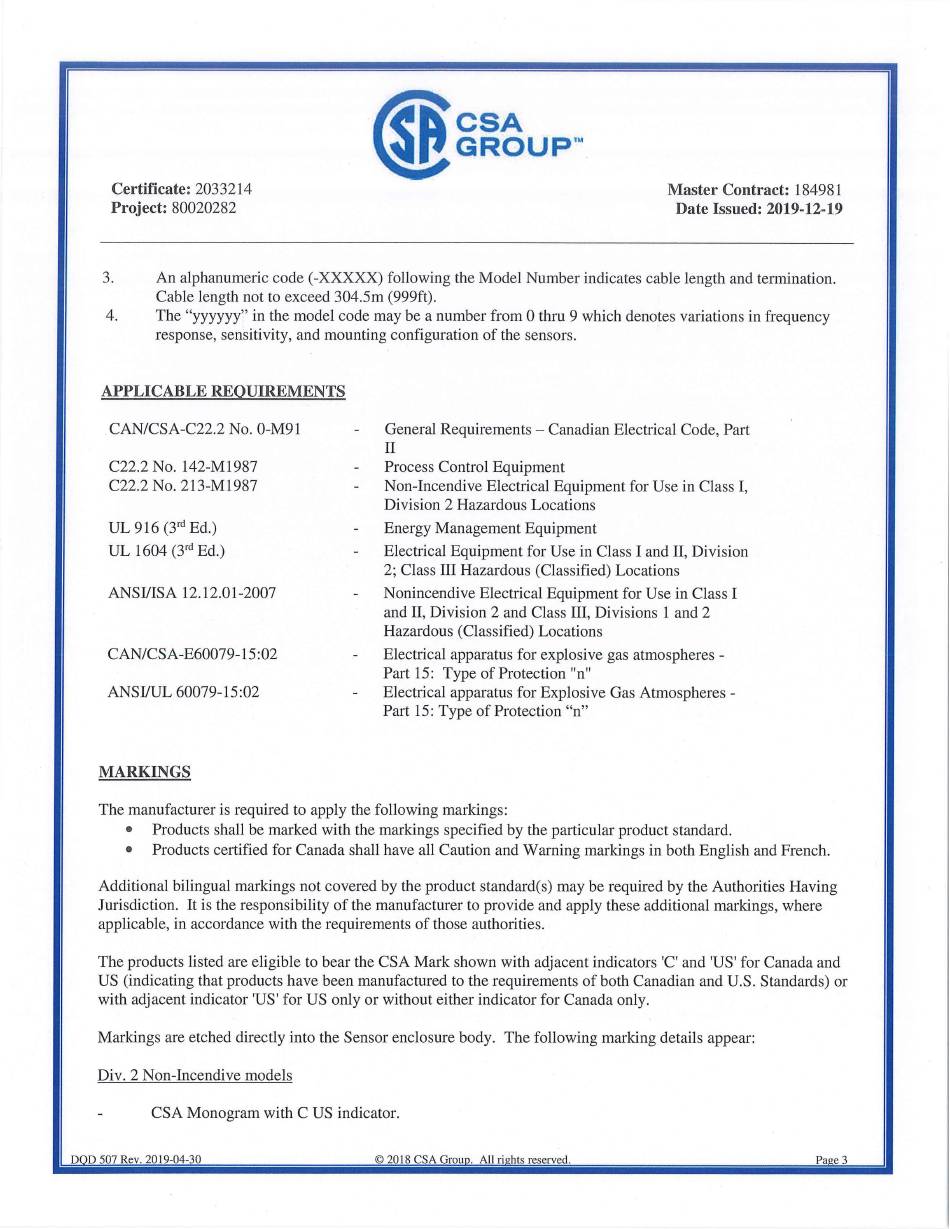

Certificate:
2033214
Project: 80020282
CSA
(
E
p
GROUP
Master Contract: 184981
Date Issued: 2019-12-19
3.
An alphanumeric code (-XXXXX) following the Model Number indicates cable length and termination.
Cable length not to exceed 304.5m (999ft).
4.
The
"yyyyyy"
in the model code may be a number from 0 thru 9 which denotes variations in frequency
response, sensitivity, and mounting configuration of the sensors.
APPLICABLE REQUIREMENTS
CAN/CSA-C22.2 No. 0-M91
-
General Requirements
-
Canadian Electrical Code, Part
II
C22.2 No. 142-M1987
-
Process Control Equipment
C22.2 No. 213-M1987
-
Non-Incendive Electrical Equipment for Use in Class I,
Division 2 Hazardous Locations
UL 916 (31d Ed.)
-
Energy Management Equipment
UL 1604 (3rd Ed.)
-
Electrical Equipment for Use in Class I and II, Division
2; Class III Hazardous (Classified) Locations
ANSL'ISA 12.12.01-2007
-
Nonincendive Electrical Equipment for Use in Class I
and II, Division 2 and Class III, Divisions 1 and 2
Hazardous (Classified) Locations
CAN/CSA-E60079-15:02
-
Electrical apparatus for explosive gas atmospheres
-
Part 15: Type of Protection 'n'
ANSI/UL 60079-15:02
-
Electrical apparatus for Explosive Gas Atmospheres
-
Part 15: Type of Protection "n"
MARKINGS
The manufacturer is required to apply the following markings:
Products shall be marked with the markings specified by the particular product standard.
Products certified for Canada shall have all Caution and Warning markings in both English and French.
Additional bilingual markings not covered by the product standard(s) may be required by the Authorities Having
Jurisdiction. It is the responsibility of the manufacturer to provide and apply these additional markings, where
applicable, in accordance with the requirements of those authorities.
The products listed are eligible to bear the CSA Mark shown with adjacent indicators 'C' and 'US' for Canada and
US (indicating that products have been manufactured to the requirements of both Canadian and U.S. Standards) or
with adjacent indicator 'US' for US only or without either indicator for Canada only.
Markings are etched directly into the Sensor enclosure body. The following marking details appear:
Div. 2 Non-Incendive models
CSA Monogram with C US indicator.
