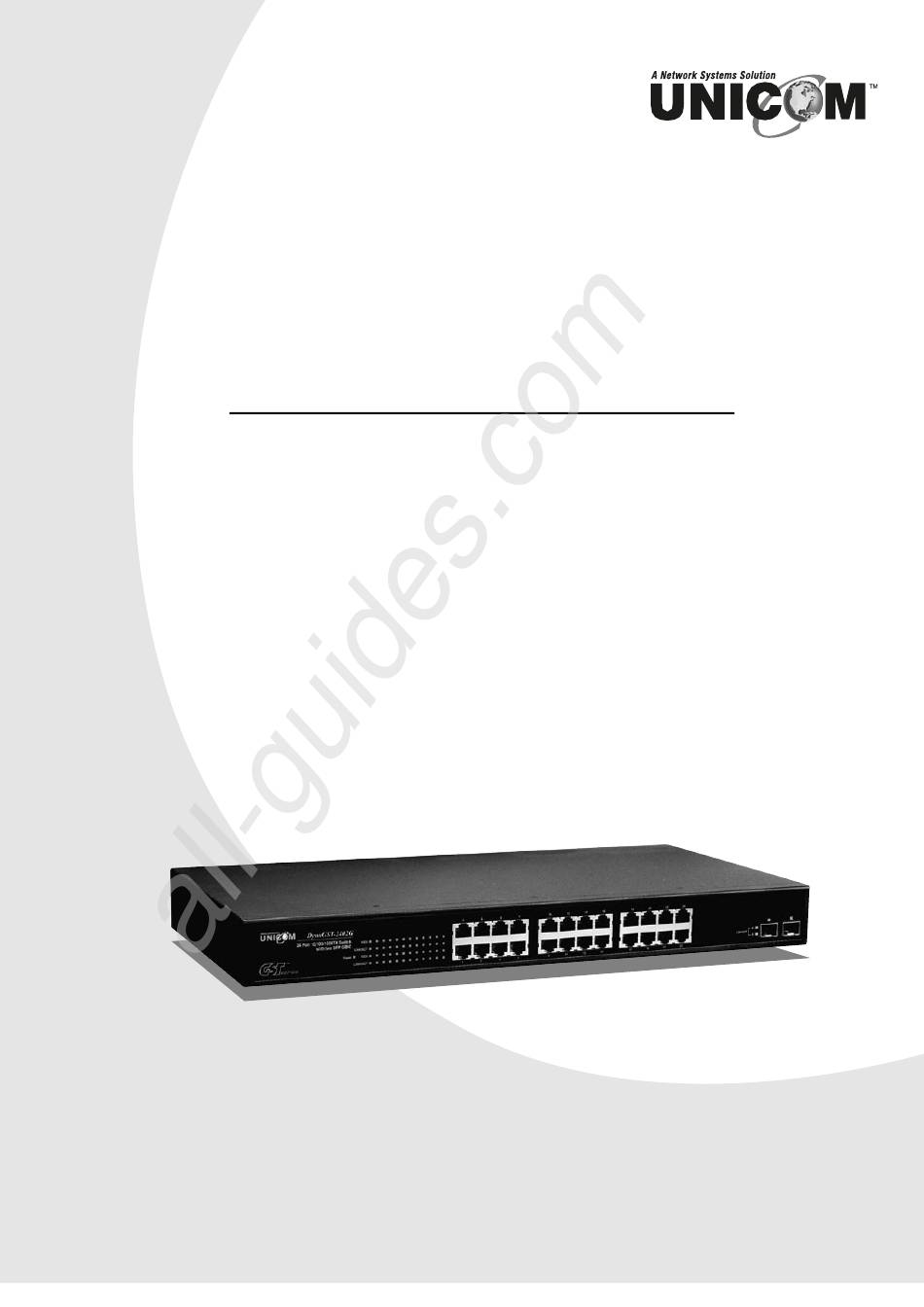

- Page 1 All manuals and user guides at all-guides.com DynaGST/2402G 24 Port 10/100/1000Base-T Gigabit Ethernet Switch with two SFP (mini) GBIC Slots GEP-33224T-1 SER’S ANUAL...
-
Page 2: Table Of Contents
All manuals and user guides at all-guides.com Content 1. Introduction .............. 1 Features ..............2 Package Contents............3 2. Hardware Description ..........5 Front Panel..............5 Rear Panel ..............6 Indicators............6 3. Installation ..............9 4. Network Application ..........10 5. - Page 3 All manuals and user guides at all-guides.com...
-
Page 4: Introduction
All manuals and user guides at all-guides.com 1. Introduction Gigabit Ethernet over copper technology is a proven cost-effective way for network equipment to be upgraded from Fast Ethernet to Gigabit speeds. Standard 4-pair Category 5e/6 copper cabling eliminates the need for expensive fiber optic cabling for Gigabit speeds. -
Page 5: Features
All manuals and user guides at all-guides.com Features Compatible with IEEE 802.3 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3z Gigabit fiber and IEEE802.3ab 1000Base-T 24 Port Gigabit switch with two Mini SFP GBIC ports Automatic MDIX for all ports 48Gbps Back plane 8K entry MAC address table 500byte Memory buffer IEEE802.3x flow control: Pause frame for 10/100/1000Mbps full duplex... -
Page 6: Package Contents
All manuals and user guides at all-guides.com Package Contents DynaGST/2402G Gigabit Ethernet switch Power Cord Four Rubber Feet User Manual DynaGST/2402G Gigabit Ethernet switch Power Cord User Guide Rubber Feet Figure 1-1. Package Contents Compare the contents of your DynaGST/2402G Gigabit Ethernet switch package with the standard checklist above. - Page 7 All manuals and user guides at all-guides.com...
-
Page 8: Hardware Description
All manuals and user guides at all-guides.com 2. Hardware Description This Section describes the hardware of the DynaGST/2402G Gigabit Ethernet switch. The physical dimensions of the DynaGST/2402G Gigabit Ethernet switch is: 440 x 161 x 44 mm (W x D x H) Front Panel The Front Panel of the DynaGST/2402G Gigabit Ethernet switch consists of twenty four (24) auto-negotiation 10/100/1000Mbps Ethernet RJ-45... -
Page 9: Rear Panel
All manuals and user guides at all-guides.com them. It doesn’t matter if the Gigabit copper port is connected before or after the Mini GBIC port is connected. The Mini GBIC port always has higher priority for connection. When the Mini GBIC port is connected, the Gigabit copper ports are disabled. - Page 10 All manuals and user guides at all-guides.com Figure 2-3. LED Indicators Status Description Green Power On Power Power is not connected Green Port is operating at 1000Mbps. 1000 No device attached or in 10/100Mbps mode Green Port is connecting with the device. LNK/ACT Blinking Port is receiving or transmitting data.
- Page 11 All manuals and user guides at all-guides.com Mini GBIC LED Each Mini GBIC port has an LED indicator – LNK /ACT. The following table provides descriptions of LED status. Figure 2-4. Mini GBIC Port LED Indicators Status Description Green The port is connecting with device Blinking The port is transmitting or receiving the data LNK/ ACT...
-
Page 12: Installation
All manuals and user guides at all-guides.com 3. Installation Set the Switch on a sufficiently large flat space with a power outlet nearby. The surface should be clean, smooth, level, and sturdy. Ensure there is enough clearance around the Switch to allow air circulation and the attachment of the power cord and cables. -
Page 13: Network Application
All manuals and user guides at all-guides.com 4. Network Application This section provides a sample of network topology in which the DynaGST/2402G is used. In general, the DynaGST/2402G Gigabit Ethernet switch is designed as a high-bandwidth backbone switch. You can use the DynaGST/2402G to connect servers, switches, workstations, and PCs to each other by connecting these devices directly to the Switch. -
Page 14: Troubleshooting
All manuals and user guides at all-guides.com 5. Troubleshooting The Switch can be easily monitored through panel indicators to assist in identifying problems. This section describes common problems you may encounter and where you can find possible solutions. Diagnosing LED Indicator If the Link indicator does not light up after connection, check whether the network interface (e.g., a network adapter card on the attached device), network cable, or switch port is defective. - Page 15 All manuals and user guides at all-guides.com Cabling RJ-45 ports: Use unshielded twisted-pair (UTP) or shield twisted-pair (STP) cable for RJ-45 connections: 100m. of Category 3,5e, or 6 cable for 10Mbps connections, 100m. of Category 5e/6 cable for 100Mbps connections , or 100m.
-
Page 16: Technical Specification
All manuals and user guides at all-guides.com 6. Technical Specification The following table provides the technical specification of the DynaGST/2402G Gigabit Ethernet switch. IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000Base-T Standard IEEE 802.3z Gigabit Fiber IEEE 802.3x Flow Control and Back-pressure IEEE 802.1p Class of Service Protocol... -
Page 17: Related Products
All manuals and user guides at all-guides.com 10Base-T: 2 pairs UTP/STP CAT. 3/4/5 cable EIA/TIA 568 100 Ohm (up to 100m) 100Base-TX: 2 pairs UTP/STP CAT. 5/5e cable Network Cable EIA/TIA 568 100Ohm (up to 100m) Gigabit Copper: 4 pairs UTP/STP CAT. 5e/6 cable EIA/TIA 568 100Ohm (up to 100m) Per RJ-45 port: 1000 (green) Link/Activity (Green) - Page 18 All manuals and user guides at all-guides.com 908 Canada Court City of Industry, CA 91748 U.S.A. Phone: 626.964.7873 or 800.346.6668 Fax: 626.964.7880 www.unicomlink.com e-mail: info@unicomlink.com UNIDOC021005 rev.071306...
