PRODUCT DETAILS
Multi-stage rainwater filters with
self-cleaning pre-filter for two and three
stage water filtration.
WFRW23
10" Two-stage filtration system
WFRW31
10" Three-stage filtration system
WFRW123
10" Two-stage filtration system (US)
WFRW131
10" Three-stage filtration system (US)
Two and Three-Stage
Filtration Systems
Installation Guide
FEATURES AND BENEFITS
•
High quality UV-resistant heavy-duty housings
•
Designed for rainwater supply to reduce
sediment, scale, taste, colour, odour and
chlorine.
•
Self-cleaning 90 micron pre-filter to remove
large particles and sediment.
•
Protect internal appliances from sediment
damage and tannin stains
Advertisement
Table of Contents
Related Manuals for Blue Mountain WFRW23
Summary of Contents for Blue Mountain WFRW23

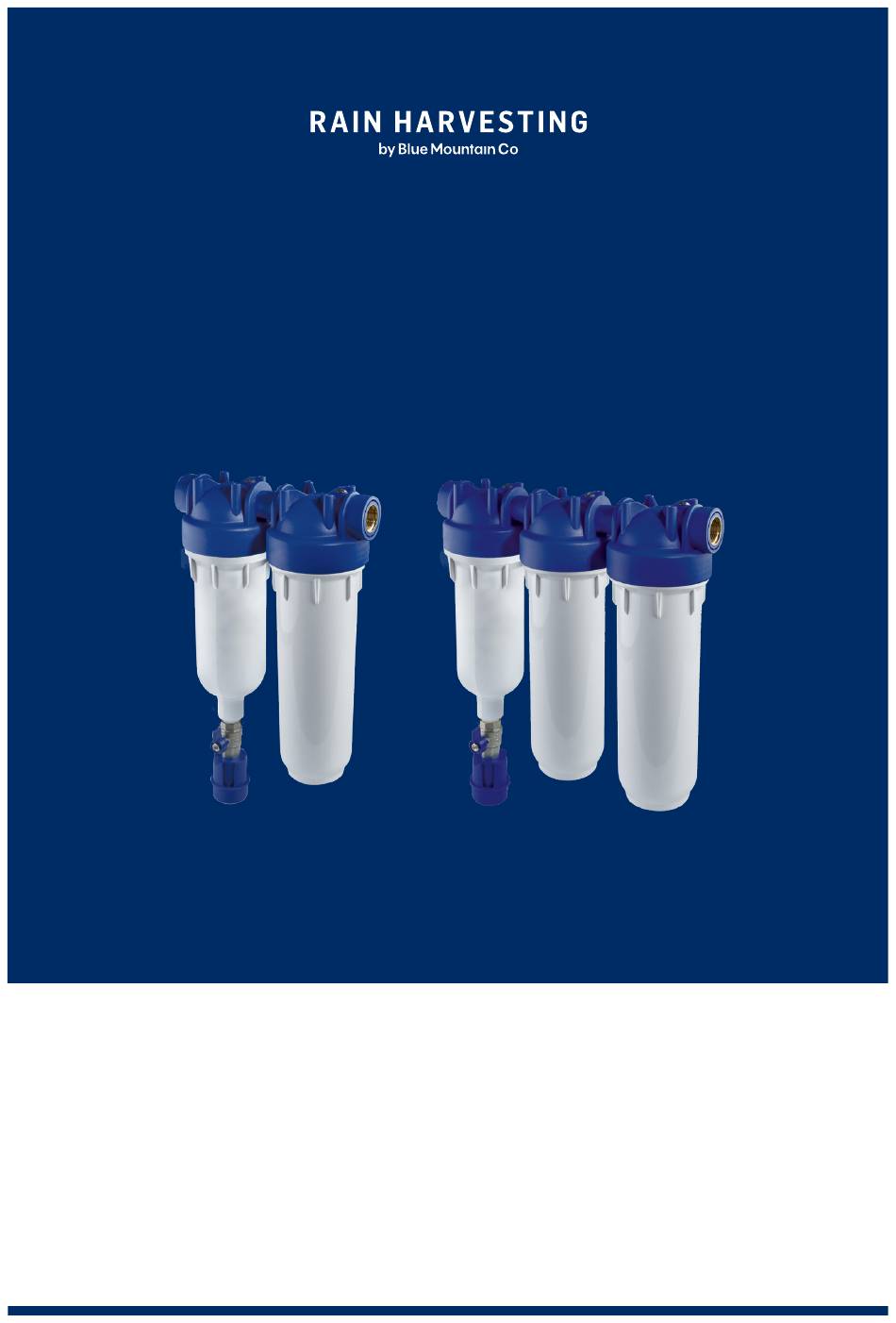

- Page 1 • Designed for rainwater supply to reduce sediment, scale, taste, colour, odour and stage water filtration. chlorine. WFRW23 10” Two-stage filtration system • Self-cleaning 90 micron pre-filter to remove WFRW31 10” Three-stage filtration system large particles and sediment.
-
Page 2: What's In The Box
Install an “anti-water hammer” system to protect the filter. • Keep away from light sources. • Keep away from excessive heat and cold (min. 4ºC, max 45ºC). • Only use original Blue Mountain Co cartridges. The use of non-original cartridges may void the warranty. - Page 3 FEATURES The Whole House Self-Cleaning Two and Three-Stage Filtration Systems have been designed and constructed with an innovative self-cleaning pre-filter cartridge cleaning system that washes in counter-current to remove more substances deposited on the cartridge surface. The self-cleaning filter has a nominal filtration of 90 micron with a stainless steel net. FIGURE 1 FIGURE 2 FIGURE 3...
-
Page 4: Installation Layout
INSTALLATION • Before the installation, carefully lubricate the housing o-ring which is located at the bowl top. • Before the installation, check if the hydraulic system has been set-up according to local authority guidelines. • Install the products in sheltered areas and protect from freezing and excessive heat. •... - Page 5 INSTALLATION (Continued) Discharge kit Screw the plastic nipple with o-ring to the threaded port for discharge on the bottom of the housing. Screw on the ball valve to the nipple, making sure that the gasket of the valve is in place. Screw the ball valve to the drain funnel, making sure that the gasket is in place.
- Page 6 INSTALLATION START-UP AND FIRST USE Turn-off water mains. Avoid all kind of tensions by using original wall brackets as a support The installation of a by-pass is recommended. Connect the inlet to the product’s side with the indication IN and the outlet to the side with the indication OUT.
-
Page 7: Technical Specifications
TECHNICAL SPECIFICATIONS Whole House Self-Cleaning Two-Stage Filtration System 10” (Slim) Filter Housing 107mm (d) 228mm WORKING PRESSURE TEMPERATURE RANGE 50kPa (7.25psi/0.5bar) 4 to 45ºC to 1205kPa (174psi/12bar) MAX FLOW IN/OUT 3/4” Brass BSP (20mm) 83 litres/min* US - 3/4” Plastic NPT *Flow rate will depend on cartridge selection, supply pipe pressure and size. - Page 8 Whole House Self-Cleaning Three-Stage Filtration System 10” (Slim) 107mm (d) Filter Housing 336mm WORKING PRESSURE TEMPERATURE RANGE 50kPa (7.25psi/0.5bar) 4 to 45ºC to 1205kPa (174psi/12bar) MAX FLOW IN/OUT 3/4” Brass BSP (20mm) 83 litres/min* US - 3/4” Plastic NPT *Flow rate will depend on cartridge selection, supply pipe pressure and size. Thread Type BSP parallel NPT tapered...
-
Page 9: Corrective Maintenance
MAINTENANCE Thanks to the self-cleaning pre-filter, the Whole House Self-Cleaning Two and Three Stage Filtration Systems can provide long-last improved performance if maintenance is correctly and regularly performed following the instructions indicated in Routine Maintenance. • Periodically clean the housing with cold water and a soft sponge. Routine Maintenance STAGE 1 –... - Page 10 MAINTENANCE (Continued) Corrective Maintenance (cont’d) Heavy-duty Sediment and Multi-Action Filter Cartridge Replacement: In the event of prolonged filter disuse, disconnect the device from the mains and remove cartridges, storing them in a cool and dry place until next use. • Flush system for 10 minutes after any period of non-use more than two days.
-
Page 11: Troubleshooting
TROUBLESHOOTING Whole House Self-Cleaning Two- and Three-Stage Filtration Systems are constructed following strict quality controls and are subject to stringent efficiency and resistance tests. Following are a series of problems that may occur due to incorrect installation or maintenance or improper use, possible negligence or due to filter or part wear. -
Page 12: Warranty Information
WARRANTY INFORMATION Blue Mountain Co guarantees this product for 12 months from date of purchase. Under this warranty we will replace the product or repair it free of charge. Claims must be received by Blue Mountain Co (info@bluemountainco.com.au) within 12 months of the date of purchase.
