PRODUCT DETAILS
With UV-resistant components and
corrosion-resistant fittings, this single stage
filtration system is equipped to handle
high flow rates and water volumes.
WFRW11

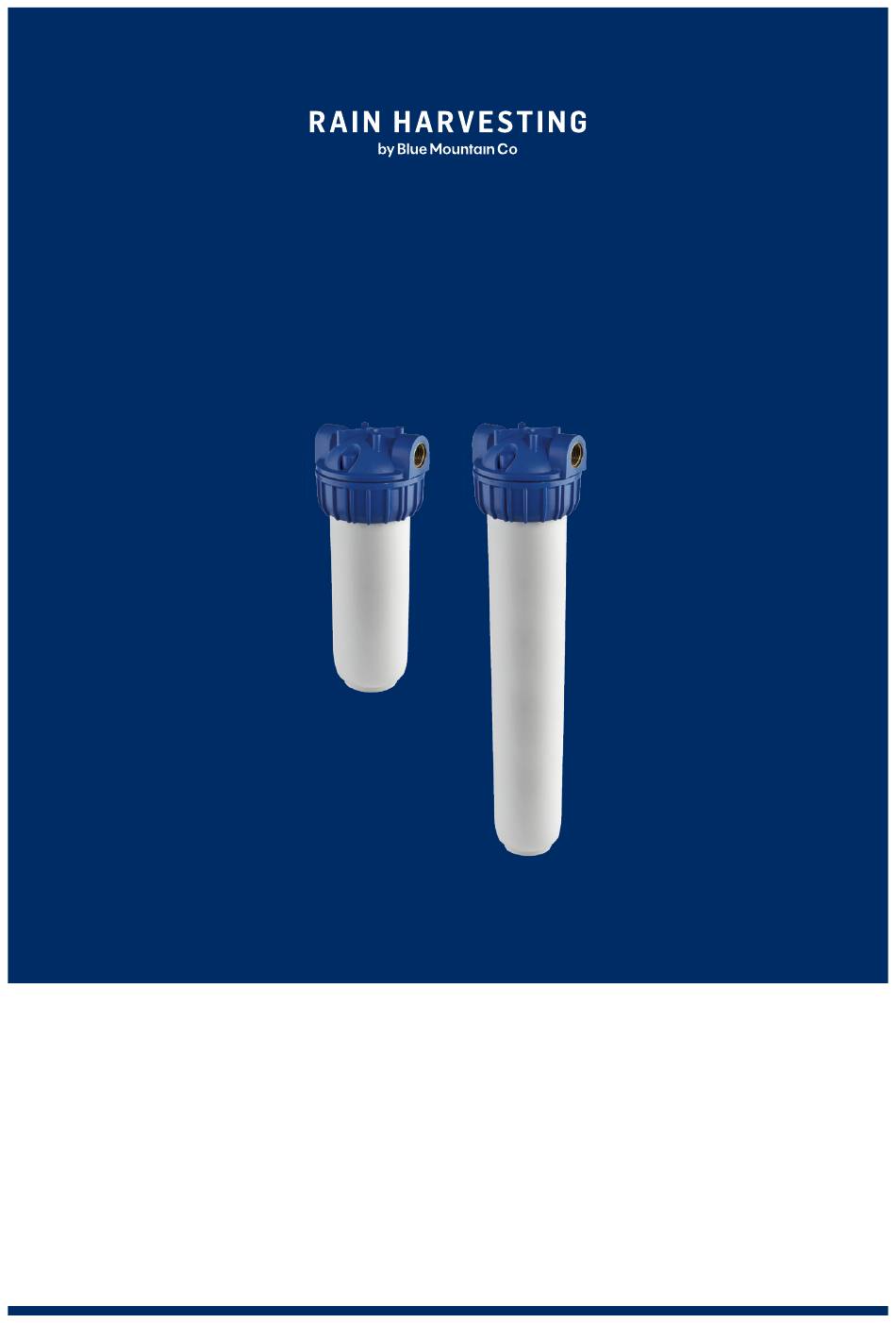

10" Triple Action Filtration System – Slim
WFRW12
20" Triple Action Filtration System – Slim
WFRW111
10" Triple Action Filtration System – Slim (US)
WFRW112
20" Triple Action Filtration System – Slim (US)
Triple Action
Filtration System
(Slim)
Installation Guide
FEATURES AND BENEFITS
•
Designed for rainwater supply
to reduce taste, colour, odour
and chlorine
•
Protect internal appliances from
sediment damage and tannin stains
•
Includes triple action filter
cartridge to remove particles
as small as 10 micron
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Blue Mountain RAIN HARVESTING WFRW11
Summary of Contents for Blue Mountain RAIN HARVESTING WFRW11
- Page 1 Triple Action Filtration System (Slim) Installation Guide FEATURES AND BENEFITS PRODUCT DETAILS • Designed for rainwater supply With UV-resistant components and to reduce taste, colour, odour corrosion-resistant fittings, this single stage and chlorine filtration system is equipped to handle high flow rates and water volumes. •...
-
Page 2: What's In The Box
Install an “anti-water hammer” system to protect the filter. • Keep away from light sources. • Keep away from excessive heat and cold (min. 4ºC, max 45ºC). • Only use original Blue Mountain Co cartridges. The use of non-original cartridges may void the warranty. -
Page 3: Installation Layout
INSTALLATION • Before the installation, carefully lubricate the housing o-ring which is located at the bowl top. • Before the installation, check if the hydraulic system has been set-up according to local authority guidelines. • Install the products in sheltered areas and protect from freezing and excessive heat. •... - Page 4 INSTALLATION START-UP AND FIRST USE Turn-off water mains. Avoid all kind of tensions by using original wall brackets as a support The installation of a by-pass is recommended. Connect the inlet to the product’s side with the indication IN and the outlet to the side with the indication OUT.
-
Page 5: Technical Specifications
TECHNICAL SPECIFICATIONS 10” System 20” System 130mm (d) 133mm 130mm (d) 133mm Filter Housing TEMPERATURE RANGE WORKING PRESSURE MAX FLOW IN/OUT 3/4” Brass BSP (20mm) 50kPa (7.25psi/0.5bar) 4 to 45ºC 83 litres/min* to 1205kPa (174psi/12bar) US - 3/4” Plastic NPT *Flow rate will depend on cartridge selection, supply pipe pressure and size. -
Page 6: Maintenance
Blue Mountain Co guarantees this product for 12 months from date of purchase. Under this warranty we will replace the product or repair it free of charge. Claims must be received by Blue Mountain Co (info@bluemountainco.com.au) within 12 months of the date of purchase. The benefits conferred by this warranty are in addition to all other rights and remedies available in law in respect to the goods and services to which it relates.
