& Whole House Two-Stage
PRODUCT DETAILS

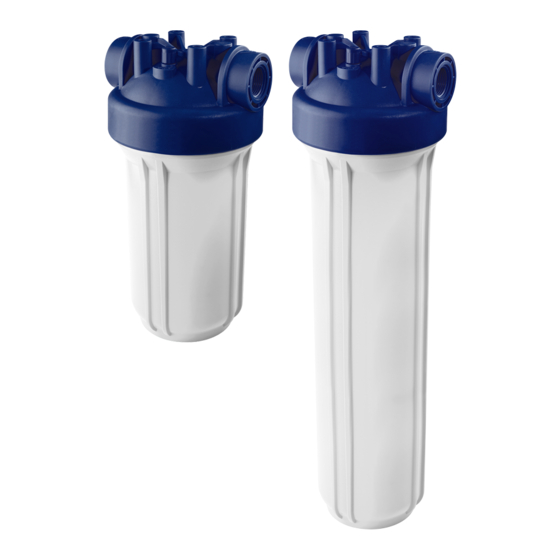

With UV-resistant components and corrosion-resistant fittings, these whole of house filtration
systems are equipped to handle high flow rates and water volumes.
WFRW13
10" Triple Action Filtration System – Large
WFRW14
20" Triple Action Filtration System – Large
WFRW21
10" Whole House Two-stage
Filtration System – Large
WFRW22
20" Whole House Two-stage
Filtration System – Large
Triple Action
Filtration Systems
(Large)
Installation Guide
WFRW113
10" Triple Action Filtration System – Large (US)
WFRW114 20" Triple Action Filtration System – Large (US)
WFRW121
10" Whole House Two-stage
Filtration System – Large (US)
WFRW122 20" Whole House Two-stage
Filtration System – Large (US)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Blue Mountain RAIN HARVESTING WFRW13
Summary of Contents for Blue Mountain RAIN HARVESTING WFRW13

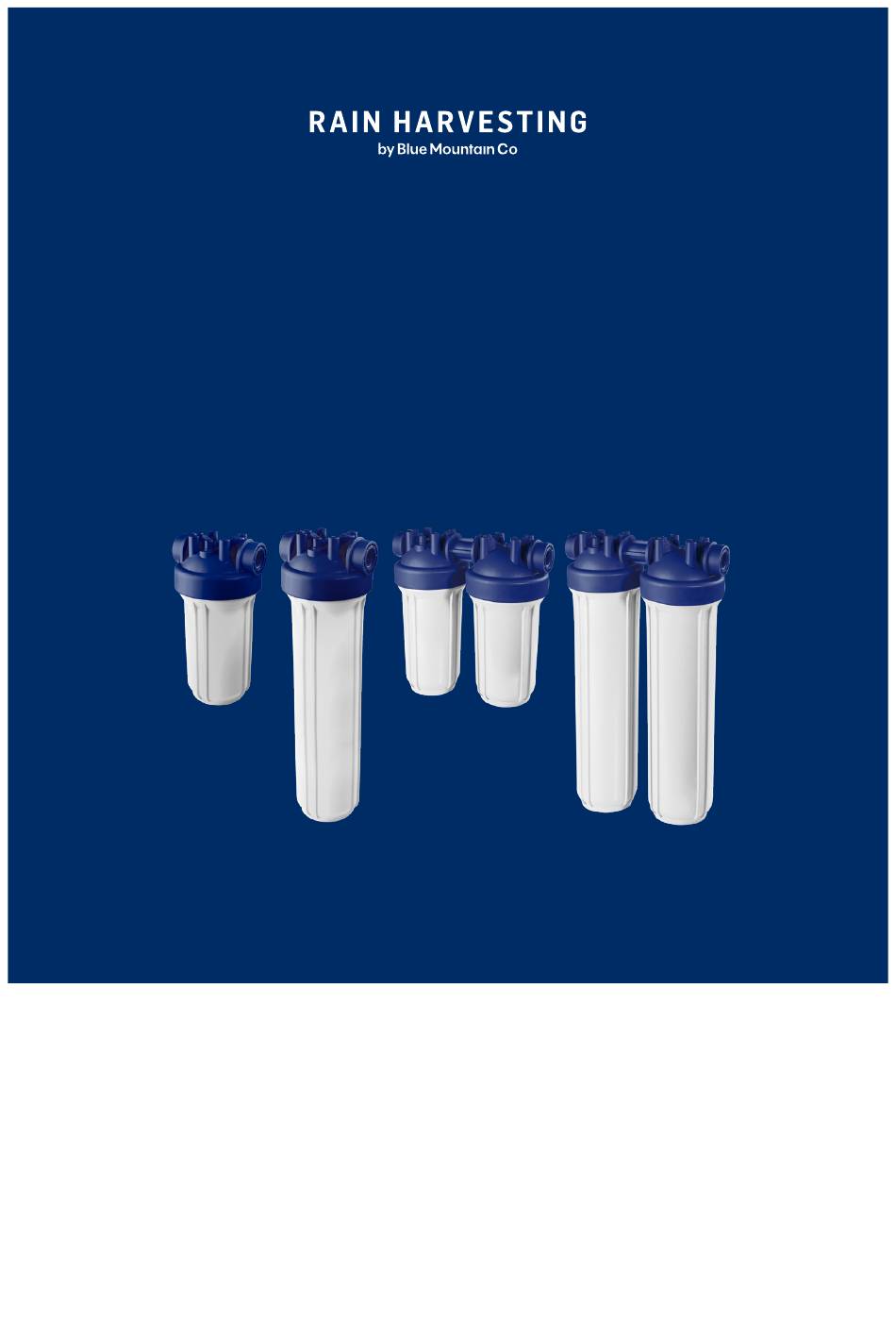

- Page 1 Triple Action & Whole House Two-Stage Filtration Systems (Large) Installation Guide PRODUCT DETAILS With UV-resistant components and corrosion-resistant fittings, these whole of house filtration systems are equipped to handle high flow rates and water volumes. WFRW13 10” Triple Action Filtration System – Large WFRW113 10”...
-
Page 2: What's In The Box
Install an “anti-water hammer” system to protect the filter. • Keep away from light sources. • Keep away from excessive heat and cold (min. 4ºC, max 45ºC). • Only use original Blue Mountain Co cartridges. The use of non-original cartridges may void the warranty. -
Page 3: Installation Layout
INSTALLATION • Before the installation, carefully lubricate the housing o-ring which is located at the bowl top. • Before the installation, check if the hydraulic system has been set-up according to local authority guidelines. • Install the products in sheltered areas and protected from freeze and excessive heat. •... - Page 4 INSTALLATION START-UP AND FIRST USE Turn-off water mains. Avoid all kind of tensions by using original wall brackets as a support The installation of a by-pass is recommended. Connect the inlet to the product’s side with the indication IN and the outlet to the side with the indication OUT.
-
Page 5: Technical Specifications
TECHNICAL SPECIFICATIONS Triple Action Filtration Systems (Large) 10” System 20” System 185mm (d) 190mm 185mm (d) 190mm Filter Housing TEMPERATURE RANGE WORKING PRESSURE MAX FLOW IN/OUT 1” Plastic BSP (25mm) 50kPa (7.25psi/0.5bar) 4 to 45ºC 95 litres/min* to 1205kPa (174psi/12bar) US - 1”... - Page 6 Whole House Two-Stage Filtration Systems (Large) 10” System 20” System 185mm (d) 390mm 185mm (d) 390mm Filter Housing TEMPERATURE RANGE WORKING PRESSURE MAX FLOW IN/OUT 1” Plastic BSP (25mm) 50kPa (7.25psi/0.5bar) 4 to 45ºC 95 litres/min* to 1205kPa (174psi/12bar) US - 1” Plastic NPT *Flow rate will depend on cartridge selection, supply pipe pressure and size.
-
Page 7: Maintenance
Blue Mountain Co guarantees this product for 12 months from date of purchase. Under this warranty we will replace the product or repair it free of charge. Claims must be received by Blue Mountain Co (info@bluemountainco.com.au) within 12 months of the date of purchase. The benefits conferred by this warranty are in addition to all other rights and remedies available in law in respect to the goods and services to which it relates.
