USER MANUAL
Thank you very much for choosing the iiyama
LCD monitor.
We recommend that you take a few minutes
to read this comprehensive manual carefully
before installing and switching on the monitor.
Please keep this manual in a safe place for
your future reference.
ENGLISH
DEUTSCH
FRANCAIS
NEDERLANDS
POLSKI
Advertisement
Table of Contents

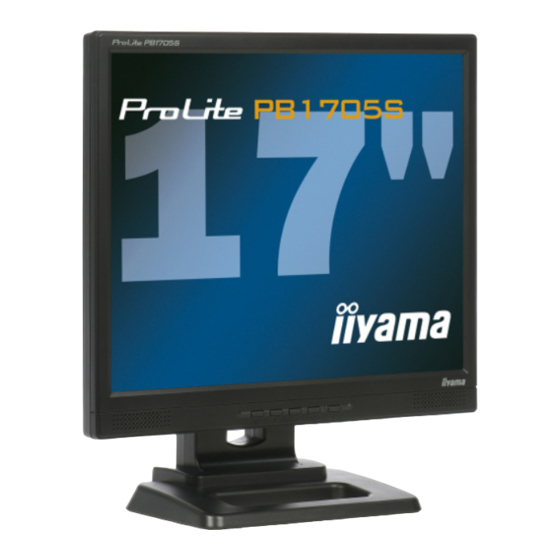

Related Manuals for Iiyama ProLite PB1705S-1
Summary of Contents for Iiyama ProLite PB1705S-1
- Page 1 USER MANUAL ENGLISH DEUTSCH FRANCAIS NEDERLANDS Thank you very much for choosing the iiyama POLSKI LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for...
- Page 3 ) shall be used. Alternative a fl exible cord be of synthetic rubber according to IEC 60245 (designation H05RR-F 3G 0.75mm ) shall be used. We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of different countries from there.
-
Page 4: Table Of Contents
TABLE OF CONTENTS FOR YOUR SAFETY ....................1 SAFETY PRECAUTIONS ................1 SPECIAL NOTES ON LCD MONITORS ............3 CUSTOMER SERVICE ..................3 CLEANING ....................... 3 BEFORE YOU OPERATE THE MONITOR ............4 FEATURES ...................... 4 CHECKING THE CONTENTS OF THE PACKAGE ......... 4 FITTING AND REMOVAL OF BASE : ProLite P1705S / ProLite P1905S .. -
Page 6: For Your Safety
STOP OPERATING THE MONITOR WHEN YOU SENSE TROUBLE If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the monitor and contact your dealer or iiyama service center immediately. Further use may be dangerous and can cause fi re or electric shock. - Page 7 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
-
Page 8: Special Notes On Lcd Monitors
Power Switch for hours. Contact your dealer or iiyama service center for the backlight replacement when the screen is dark, fl ickering or not lighting up. Never attempt to replace it by yourself. CUSTOMER SERVICE ... -
Page 9: Before You Operate The Monitor
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce. Power Cable*... -
Page 10: Fitting And Removal Of Base : Prolite P1705S / Prolite P1905S
FITTING AND REMOVAL OF BASE : ProLite P1705S / ProLite P1905S Put the monitor on a stable surface. The monitor may cause injury or damage if it CAUTION falls or is dropped. Do not give a strong impact to the monitor. It may cause damage. ... -
Page 11: Fitting And Removal Of Base : Prolite Pb1705S
FITTING AND REMOVAL OF BASE : ProLite PB1705S Put the monitor on a stable surface. The monitor may cause injury or damage if it CAUTION falls or is dropped. Do not give a strong impact to the monitor. It may cause damage. ... -
Page 12: Controls And Connectors
CONTROLS AND CONNECTORS <Front> <Back> Power Switch ( ) / Power Indicator NOTE Blue: Normal operation Orange: Power Management The monitor enters into power management mode which reduces the power consumption to less than 1W when receiving no horizontal and/or vertical sync signal. -
Page 13: Connecting Your Monitor
The cable supplied with the monitor is for a standard 15 pin D-Sub connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce. For connection to Macintosh computers, contact your local iiyama dealer or regional iiyama offi... -
Page 14: Computer Setting
Change to the desired signal timing listed on page 26: COMPLIANT TIMING. Windows 95/98/2000/Me/XP/Vista/7 Plug & Play The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs on Windows 95/98/2000/Me/XP/Vista/7 by connecting the monitor to DDC2B compliant computer with the Signal Cable supplied. -
Page 15: Adjusting The Height And The Viewing Angle : Prolite Pb1705S
ADJUSTING THE HEIGHT AND THE VIEWING ANGLE : ProLite PB1705S For optimal viewing it is recommended to position yourself directly opposite the full face of the monitor, then adjust the monitor’s height and angle to your own preference. Hold the panel so that the monitor does not topple when you change the monitor’s height or angle. -
Page 16: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 26. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 16 for SCREEN ADJUSTMENTS. -
Page 17: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Auto Image Adjust Auto Image Adjust Adjustment Item Problem / Option Button to Press Adjust H. / V. Position, Horizontal Size and Fine Tune Direct Auto Image Adjust * automatically. Only Analog Input NOTE The screen becomes dark for approximately fi ve seconds during the adjustment. For best results, use the Auto Image Adjust in conjunction with the adjustment pattern. - Page 18 Input Select Input Select Adjustment Item Problem / Option Button to Press Analog Select the D-sub input. Input Select Digital Select the DVI input. NOTE When only one of the two signal inputs is connected to the signal source, the one connected is automatically selected.
- Page 19 Information Information Displays information regarding the current input signal coming from the Information Analog H.Frequency: 63.9KHz graphic card in your computer. V.Frequency: 60.0Hz Resolution: 1280 x 1024 NOTE Pixel Clock: 107.8MHz Serial Number: 1108901000001 See your graphic card user guide for more information about changing Model Number: PLP1705S the resolution and refresh.
- Page 20 Memory Recall Memory Recall Adjustment Item Problem / Option Button to Press Factory-preset data is restored. Memory Recall Direct You can display an adjustment scale directly by using the following button operations. KEY LOCK (OSD and POWER SWITCH) : Lock : Press the 1 Button and Button and hold down for 10 seconds.
-
Page 21: Screen Adjustments
If the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Image Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA website (http://www. iiyama.com). - Page 22 Press the 2 Button. (Auto Image Adjust) Adjust the image manually by following procedure below when the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Image Adjust. Adjust the V.Position so that the top and bottom of the picture frame will fi...
- Page 23 Adjust the Fine Tune to correct horizontal wavy noise, fl icker or blur in the zebra pattern. In case the strong fl icker or blurs remain on a part of the screen, repeat steps NOTE NOTE because the Horizontal Size may not be adjusted correctly. If the fl icker or blurs still remain, set the refresh rate of computer to low (60Hz) and repeat steps from again.
-
Page 24: Power Management Feature
POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of ENERGY ® STAR and VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. -
Page 25: Trouble Shooting
2. Consult the following items if you cannot fi nd an appropriate adjustment item in OPERATING THE MONITOR or if the problem persists. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem... -
Page 26: Recycling Information
The Audio Cable is properly connected. A strange noise is heard. RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our website: www.iiyama.com/recycle for monitor recycling. TROUBLE SHOOTING / RECYCLING INFORMATION... -
Page 27: Appendix
APPENDIX Design and specifi cations are subject to change without prior notice. SPECIFICATIONS : ProLite P1705S Size Category 17" LCD Panel Driving system a-Si TFT Active Matrix Size Diagonal: 17" Pixel pitch 0.264mm H × 0.264mm V Brightness 250cd/m (Typical) Contrast ratio 1000 : 1 (Typical) Viewable angle... -
Page 28: Specifications : Prolite Pb1705S
SPECIFICATIONS : ProLite PB1705S Size Category 17" LCD Panel Driving system a-Si TFT Active Matrix Size Diagonal: 17" Pixel pitch 0.264mm H × 0.264mm V Brightness 250cd/m (Typical) Contrast ratio 1000 : 1 (Typical) Viewable angle Right / Left : 85 degrees each, Up / Down : 80 degrees each (Typical) Response time 5ms (Black, White, Black) Display Colors... -
Page 29: Specifications : Prolite P1905S
SPECIFICATIONS : ProLite P1905S Size Category 19" LCD Panel Driving system a-Si TFT Active Matrix Size Diagonal: 19" Pixel pitch 0.294mm H × 0.294mm V Brightness 250cd/m (Typical) Contrast ratio 1000 : 1 (Typical) Viewable angle Right / Left : 85 degrees each, Up : 85 degrees, Down : 75 degrees (Typical) Response time 5ms (Black, White, Black) Display Colors... -
Page 30: Dimensions : Prolite P1705S
DIMENSIONS : ProLite P1705S 369.0mm/14.5" 339.5mm/13.4" 59.5mm/2.34" 201.5mm/7.93" DIMENSIONS : ProLite PB1705S 369.0mm/14.5" 59.5mm/2.34" 339.5mm/13.4" ‑TOP‑ ‑TOP‑ 210.0mm/8.27" ( ): Maximum adjustment range DIMENSIONS : ProLite P1905S 414.5mm/16.3" 378.0mm/14.9" 70.5mm/2.78" 201.5mm/7.93" APPENDIX... -
Page 31: Compliant Timing
PC Input COMPLIANT TIMING Horizontal Vertical Dot Clock Video Mode Frequency Frequency 25.175MHz 31.469kHz 59.940Hz 31.500MHz 37.500kHz 75.000Hz 640 × 480 31.500MHz 37.861kHz 72.809Hz 35.156kHz 56.250Hz 36.000MHz 37.879kHz 60.316Hz 40.000MHz SVGA 800 × 600 48.077kHz 72.188Hz 50.000MHz VESA 46.875kHz 75.000Hz 49.500MHz 65.000MHz 48.363kHz...
