USER MANUAL
ENGLISH
Thank you very much for choosing the iiyama
LCD monitor.
We recommend that you take a few minutes
to read this comprehensive manual carefully
before installing and switching on the monitor.
Please keep this manual in a safe place for
your future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

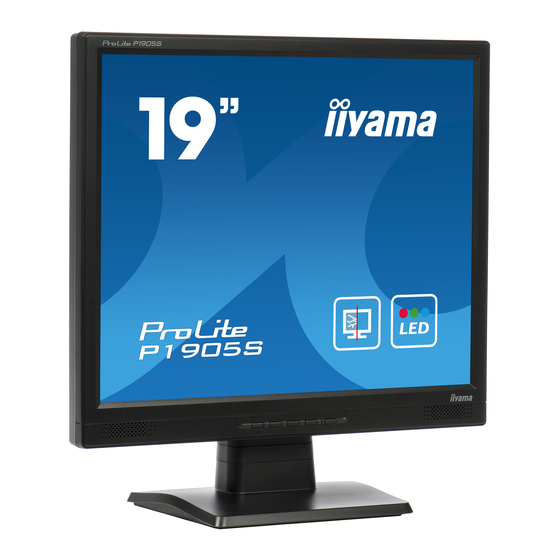

Do you have a question about the ProLite P1905S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Iiyama ProLite P1905S

Summary of Contents for Iiyama ProLite P1905S

  • Page 1 USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for...
  • Page 3 IEC 60245 (designation H05RR-F 3G 0.75mm ) shall be used. We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of diff...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS FOR YOUR SAFETY ....................1 SAFETY PRECAUTIONS ................... 1 SPECIAL NOTES ON LCD MONITORS ............. 3 CUSTOMER SERVICE ..................3 CLEANING ......................3 BEFORE YOU OPERATE THE MONITOR ............... 4 FEATURES ......................4 CHECKING THE CONTENTS OF THE PACKAGE ..........4 WALL MOUNTING ....................

  • Page 5: For Your Safety

    Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fi re, electric shock or damage.
  • Page 6 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.

  • Page 7: Special Notes On Lcd Monitors

    Power Switch for hours.  Contact your dealer or iiyama service center for the backlight replacement when the screen is dark, fl ickering or not lighting up. Never attempt to replace it by yourself.

  • Page 8: Before You Operate The Monitor

    CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce.

  • Page 9: Wall Mounting

    WALL MOUNTING  When you use with the wall mounting, in consideration of thickness of the mounting WARNING stage, tighten the M4 Screws (4pcs) with washer which “L” length is 7mm to fasten the monitor. Using the screw longer than this may cause electric shock or damage because it may contact with the electrical parts inside the monitor.

  • Page 10: Fitting And Removal Of Base

    FITTING AND REMOVAL OF BASE CAUTION  Put the monitor on a stable surface. The monitor may cause injury or damage if it falls or is dropped.  Do not give a strong impact to the monitor. It may cause damage. ...

  • Page 11: Controls And Connectors

    CONTROLS AND CONNECTORS <Front> <Back> Power Switch  ( ) / Power Indicator NOTE Blue: Normal operation Orange: Power Management Select / Input select Button ( Scroll up / Audio Adjust Button ( Scroll Down / i-Style Color Button (  ) Menu Button ( Speakers VGA Connector (VGA)

  • Page 12: Connecting Your Monitor

    An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce.

  • Page 13: Computer Setting

    COMPUTER SETTING  Signal Timing Change to the desired signal timing listed on page 24: COMPLIANT TIMING. ADJUSTING THE VIEWING ANGLE  For optimal viewing it is recommended to look at the full face of the monitor.  Hold the stand so that the monitor does not topple when you change the monitor’s angle.

  • Page 14: Operating The Monitor

    OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 24. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 17 for SCREEN ADJUSTMENTS.

  • Page 15: Adjustment Menu Contents

    ADJUSTMENT MENU CONTENTS Auto Image Adjust Auto Image Adjust Only Analog Input Adjustment Item Problem / Option Button to Press Adjust H. / V. Position, Clock and Phase automatically. Auto Image Adjust * Direct * For best results, use the Auto Image Adjust in conjunction with the adjustment pattern. See page 17 for SCREEN ADJUSTMENTS.
  • Page 16 Input Select Direct Input Select Adjustment Item Problem / Option Button to Press Select the VGA input. Select the DVI input. Input Select Search for an available input source and select Auto automatically. Input source is fi xed, not selected automatically when VGA and DVI which are selected. NOTE Direct You can skip the Menu items and display an adjustment scale directly by using the following button...
  • Page 17 Color Adjust Color Adjust Adjustment Item Problem / Option Button to Press Cool Bluish white Normal Reddish white Warm Greenish white Too weak User Color Green Too strong Blue Return to a state set by color adjustment except Off i-Style Color. For general windows environment and monitor Standard default setting.
  • Page 18 Manual Image Adjust Manual Image Adjust Adjustment Item Problem / Option Button to Press Too left H. Position Too right H./V. Position * Too low V. Position Too high Too narrow Clock * Too wide Phase * To correct fl ickering text or lines 0 1 2 3 You can change the picture quality from 0 to 3 (soft to sharp).
  • Page 19 5 / 15 / 30 / 60 seconds The background of OSD is mode transparent. OSD Background* Off Retune the background of OSD. iiyama Logo displayed when the monitor is turned on. Opening Logo* iiyama Logo does not display when the monitor is Off turned on.
  • Page 20 ● Lock Mode <OSD Menu> 1. The OSD lock will be activated by pressing the front buttons 1 and for about 10 seconds. If you try to access the OSD by pressing any of the buttons 1 , and 2 , message "OSD Locked"...

  • Page 21: Screen Adjustments

    If the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Image Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA website (http:// www.iiyama.com).
  • Page 22 Pressing and holding of the Button for about 2 seconds when the Menu is not displayed. (Auto Image Adjust) Adjust the image manually by following procedure below when the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Image Adjust. Adjust the V.Position so that the top and bottom of the picture frame will fi...
  • Page 23 Adjust the Fine Tune to correct horizontal wavy noise, fl icker or blur in the zebra pattern. NOTE  In case the strong fl icker or blurs remain on a part of the screen, repeat steps because the Horizontal Size may not be adjusted correctly. ...

  • Page 24: Power Management Feature

    POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. There is a power management step the monitor takes as described below.

  • Page 25: Trouble Shooting

    MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem...

  • Page 26: Recycling Information

    A strange noise  The Audio Cable is properly connected. is heard. RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our website: www.iiyama.com for monitor recycling. 22 TROUBLE SHOOTING / RECYCLING INFORMATION...

  • Page 27: Appendix

    APPENDIX Design and specifi cations are subject to change without prior notice. SPECIFICATIONS Size Category 19" LCD Panel Panel technology TN Size Diagonal: 19" (48cm) Pixel pitch 0.294mm H × 0.294mm V Brightness 240cd/m (Typical) Contrast ratio 1000 : 1 (Typical), Adv. Contrast Function Available Viewable angle Right / Left : 85 degrees each, Up / Down : 80 degrees each (Typical) Response time...

  • Page 28: Dimensions

    DIMENSIONS 414.5mm/16.3" 378.0mm/14.9" 70.5mm/2.78" 201.5mm/7.93" COMPLIANT TIMING Horizontal Vertical Dot Clock Video Mode Frequency Frequency 31.469kHz 59.940Hz 25.175MHz 37.500kHz 75.000Hz 31.500MHz 640 × 480 37.861kHz 72.809Hz 31.500MHz 35.156kHz 56.250Hz 36.000MHz 37.879kHz 60.316Hz 40.000MHz SVGA 800 × 600 48.077kHz 72.188Hz 50.000MHz VESA 46.875kHz 75.000Hz...
