Larson Electronics RCL360-LED-40 Quick Start Manual

Larson Electronics LLC www.LarsonElectronics.com sales@larsonelectronics.com
9419 E US HWY 175, Kemp, TX 75143 - P: (800) 369-6671 - F: (903) 498-3364

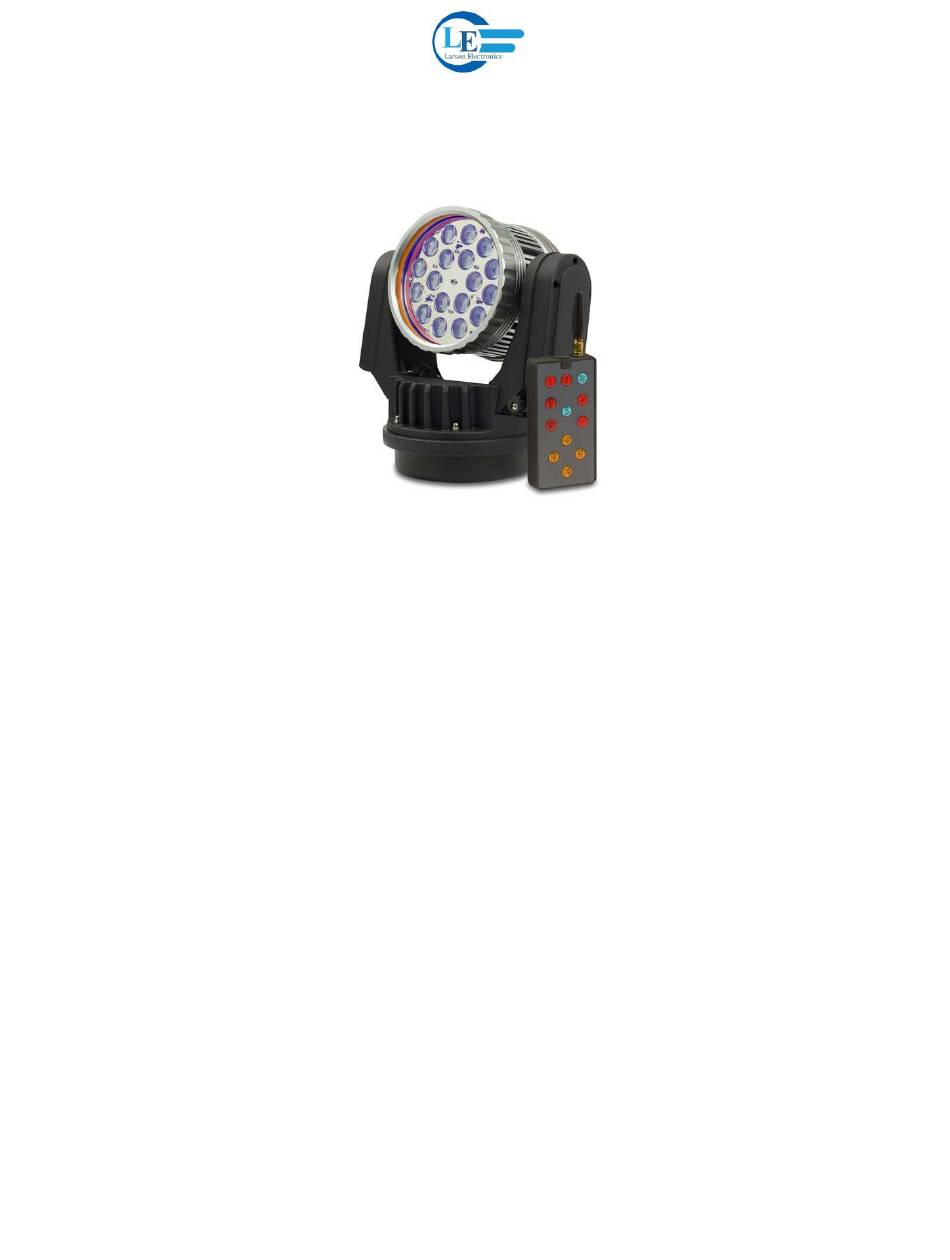

RCL360-LED-40
INTRODUCTION

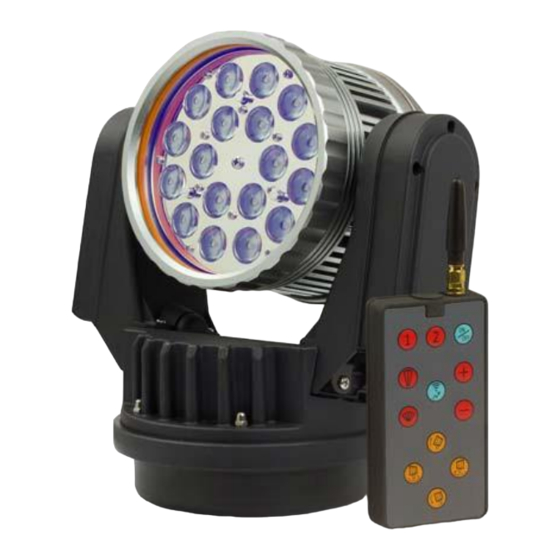

Encased in a durable hard anodized aluminum and stainless steel housing with high power LEDs and
patented optics and electronic technology, this searchlight produces concentrated, high intensity and
focus-adjustable brilliant light beams up to 3,888'. These light function under the most severe and
harsh conditions. This versatile searchlight is suitable in a wide range of applications including search,
rescue, riot control, firefighting, military, border patrol, marine, vehicles, planes, drones, airport,
seaports, transportation stations, public areas, jails, sports and any outdoor activities.
These searchlights are available in 40W and 80W models. Constant current voltage technology
optimizes power from any rechargeable battery for extended portable use and ensures light beam to
remain steady regardless of battery discharging status. For example, a 24V 26AH rechargeable battery
can power a 40W light continuously at regular intensity for up to 60 hours. This light may also be
powered directly by an optional 110/220 VAC to 12/24 VDC converter. An optional adapter cable is
available to connect these searchlights to cigarette lighter sockets of automobiles. A specially coated
telescope grade lenses project even illuminating and focus-adjustable light beams suitable for both
long distance illumination at minimum beam angle (spot mode) or near-field peripheral illumination at
a wider beam angle (flood mode).
Two groups of multiple lights can be controlled by a single handheld wireless remote control. The
controller can change the light beam angle and cycle operation modes through: Steady Light – Strobe –
SOS. The remote control can also control the panning and tilting of the light. With the pan-tilt, the
searchlight can be controlled to cover surrounding space in all hemispherical directions. The wireless
operation does not interfere with other wireless applications. IPX6 waterproof rating keeps out
moisture and dirt.
