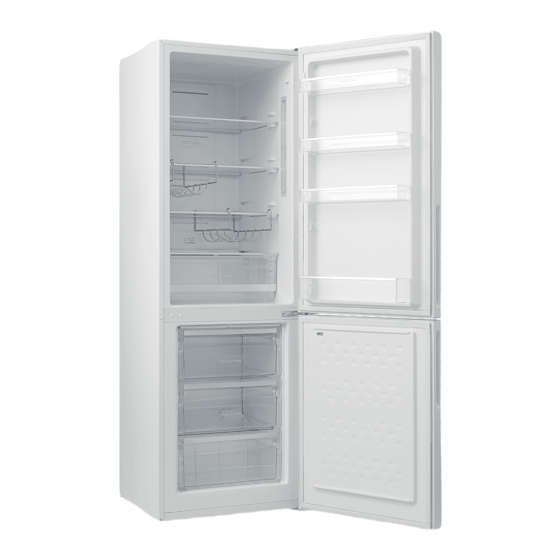

60cm Wide Total No Frost Free
Fridge Freezer
Instruction Manual
Model number(s):
RH60FF186 WG BG SG RG SS
For Customer Services & Spare Parts please call 0345 208 8750
Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm
or visit us at www.productcare.co.uk
IMPORTANT:
RETAIN FOR FUTURE REFERENCE
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Russell Hobbs RH60FF186
Summary of Contents for Russell Hobbs RH60FF186
- Page 1 Fridge Freezer Instruction Manual Model number(s): RH60FF186 WG BG SG RG SS For Customer Services & Spare Parts please call 0345 208 8750 Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm or visit us at www.productcare.co.uk...
-
Page 2: Table Of Contents
Contents Safety Instructions ………………………………………. Electrical Safety ………………………………………. Transportation & Handling ………………………………………. Installing & Switching on your Appliance ………………………………………. Before Switching On ………………………………………. Product Overview ………………………………………. Unit & Spare Parts ………………………………………. Control Panel ………………………………………. Usage ………………………………………. 9 -15 Door Reversal ………………………………………. 16-22 Replacing the Bulb ………………………………………. -
Page 3: Safety Instructions
Safety Instructions Important note: Please read this booklet before installing and switching on this appliance. The manufacturer assumes no responsibility for incorrect installation and usage as described in this booklet. • This model uses natural refrigerant gas as part of its cooling system. This gas is known as R600a (Isobutene) and is environmentally friendly but can be combustible. -
Page 4: Electrical Safety
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 5: Transportation & Handling
Transportation and Handling For safe lifting, tilt the appliance backwards by no more than 45 degrees, hold the base and rear corners of cabinet. Lift the refrigerator carefully. Never use the door handles for lifting. To move the refrigerator on a flat level surface, tilt it slightly backwards and push backwards. -
Page 6: Before Switching On
• Choose a dry and well-ventilated space. • The appliance should be positioned so that the plug is easily accessible. • If you need help or are unsure how to install the unit, please contact Customer Services on 0345 208 8750 or visit www.productcare.co.uk. Before Switching On •... -
Page 7: Product Overview
Product Overview Light Adjustable feet Adjustable shelves Door racks Non-adjustable shelf 2 x 2 bottle wine rack Crisper Control panel & display Freezer drawers 1 x egg tray, 1 x ice cube tray Unit Parts & Spare Parts Before installation, check that all parts detailed in the product overview are present. -
Page 8: Control Panel
Usage Information Control panel Alarm Fridge compartment temperature Freezer compartment temperature Fast Cooling icon Fast Freezing icon Vacation icon Smart ECO icon Fridge compartment temperature adjustment button Freezer compartment temperature adjustment button Function button Select/OK button For Customer Services & Spare Parts please call 0345 208 8750 Opening times: Monday - Friday 8am –... - Page 9 Usage Information Temperature setting Important note: The display will only be illuminated when a button is pressed or a compartment door opened, at all other times the display will be in a standby state. Note: The standard operating temperature for the fridge compartment should be between 0°C and 4°C and the standard operating temperature for the freezer compartment should be between -18°C and -25°C.
- Page 10 Usage Information Freezer compartment temperature adjustment To change the temperature of the freezer compartment, press the freezer temperature adjustment button. The temperature of the freezer can be set between -16°C and -24°C. Press the freezer temperature adjustment button until the required temperature is shown on the display.
- Page 11 Usage Information Fast Cooling This function is designed for times when the refrigerator warms past the point of cooling, such as when the weather is extremely warm, the refrigerator door is opened frequently, or a large batch of warm food is placed inside the refrigerator.
- Page 12 Usage Information to what it was previously set at). If the temperature of freezer goes below -32°C during the 26 hours then the appliance will exit the Fast Freezing function automatically. The temperature of the freezer compartment cannot be changed when this function has been selected even if the freezer temperature adjustment button is pressed (by press this button the display will just show the temperature of the compartment but will not allow them to be adjusted).
- Page 13 Usage Information buttons the display will just show the temperature of the compartments but will not allow them to be adjusted). To use the Fast Cooling and Freezing function you must press the function button until the Fast Cooling icon flashes on the display, press the okay button to select/confirm this function.
- Page 14 Usage Information to this function being selected. Important note: If this function is selected then all food and drinks must be removed from the fridge compartment. Smart ECO By selecting this function the temperature of the freezer and fridge compartments will automatically be set to -18°C and 4°C. The temperature of the freezer or fridge compartment cannot be changed when this function has been selected even if the freezer or fridge temperature adjustment buttons are pressed (by pressing these buttons the display will just show the...
- Page 15 Usage Information General Information 1. High freezer temperature alarm - when the freezer temperature is higher than 10℃, the temperature of the freezer compartment will light up and flicker. This will happen when the appliance is first switched on. Press any button or wait for 5 seconds, flickering stops and it goes back to the temperature that was set.
-
Page 16: Door Reversal
Door Reversal To reverse the door you will need to tilt the appliance backward to access the lower hinge which holds screws. Do not tilt the appliance more than 45 degrees and do not lay the appliance flat on its side. For your own safety, a minimum of 2 people should lift or tilt this product. - Page 17 Door Reversal 3. On the right side of the appliance remove the screws from the top hinge cover and remove the cover. Hinge cover 4. Gently pull the communication line until the connectors come out of the hole in the cabinet. Disconnect the communication line and the communication connector (this is for the control panel and display) by pressing on the bottom part of the clip that is on the connector of the communication line and carefully pulling it away.
- Page 18 Door Reversal 5. Put the communication connector into the hole on the top of the cabinet, you must ensure it does not protrude but can still be accessed if reversing the door back to its original orientation in the future. 6.
- Page 19 Door Reversal 8. Take off the middle hinge by removing the screws. Carefully lift the freezer door up and move it away. 9. Tilt the appliance carefully, no more 45 degrees and remove the adjustable feet from both sides. Remove the lower hinge by removing the 4 screws and remove the 1 screw from the opposite side.
- Page 20 Door Reversal 11. Remove the screws from the door stopper on the bottom of the fridge and freezer doors and fix the stoppers to the opposite sides. 12. Remove the axel and the 2 stoppers from the lower hinge and then assemble them as shown below: Right door Left door...
- Page 21 Door Reversal 13. Fit the lower hinge to the opposite side and reinstall the adjustable feet. Reinstall the 1 screw to the opposite. 14. Flip over the middle hinge 180º and put the pin of the middle hinge into the top of the freezer door and screw the middle hinge back onto the opposite side the fridge.
- Page 22 Door Reversal 15. Place the fridge door back on to the middle hinge, put the communication line into the open side of the top hinge pin and carefully put the pin of the top hinge into the door bush on the top of the door and fix the hinge in to place by screwing it to the top of the fridge (use a spanner to tighten it if necessary).
-
Page 23: Replacing The Bulb
Replacing the Bulb The lights are energy efficient, long life LEDs. Therefore should not need replacing throughout the life of the product however if it does it has to be replaced by a qualified engineer. Please call the service team on 0345 208 8750. For Customer Services &... -
Page 24: Energy Saving Advice
Energy Saving Advice • Do not install the appliance close to sources of heat, such as a cooker, dishwasher or radiator. • Locate the appliance in a cool well-ventilated room and make sure that the air vents are clear. • Try to avoid keeping the doors open for a long time, as warm air will enter the cabinet and may cause a build-up of ice as well as affecting the energy consumption. -
Page 25: Power Failure
Power Failure If there is a power failure during the storage of frozen foods, keep the door closed. If the temperature within your freezer should rise, do not refreeze the food without checking it's condition. • Ice Cream: Once thawed should be discarded. •... -
Page 26: Maintenance & Cleaning
Maintenance & Cleaning Disconnect the appliance from the power supply before cleaning. Internal Cleaning • Do not pour water over the appliance. • The cavity should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water (5ml to 0.5 litre of water) •... -
Page 27: Defrosting
Maintenance & Cleaning Defrosting Note: Care must be taken when performing the following procedure. • The appliance is frost free, so there shouldn’t be any requirement to defrost the freezer. However, in the unlikely event the appliance does need defrosting please follow the below steps: •... -
Page 28: Trouble Shooting
Trouble shooting Problem Solution Check that the appliance is switched on. Check that there has not been a power cut. Check that the plug is not faulty. Check that the fuse has not blown. The fridge/freezer doesn't work Check that the voltage is correct for the appliance. Are there any faults with the socket? For this purpose, try the plug of your appliance by connecting it to a socket which you are sure is working. - Page 29 Trouble shooting Problem Solution Check all the food and drink that is in the fridge is in date and correctly packaged. If it isn’t then it should be removed immediately or repackaged. Check for spillages on each shelf, rack and drawer. You may need to remove the drawers to check that no spillages have settled underneath them.
-
Page 30: Connection To The Mains Supply
Connection to the Mains Supply WARNING- THIS APPLIANCE MUST BE EARTHED This appliance is designed to operate from a mains supply of AC220V - 240V; 50HZ. Check that the voltage marked on the product corresponds with your supply voltage. For UK use only – Plug fitting details (where applicable): As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The GREEN/YELLOW wire is the EARTH and must be connected to the terminal which... -
Page 31: Guarantee
Guarantee This product is guaranteed for 12 months from the date of the original purchase. If any defect arises due to faulty materials or workmanship you must contact Product Care with the original proof of purchase so a replacement or refund can be arranged. Refund or replacement is at the discretion of Product Care. -
Page 32: Technical Specification
Technical Specification Model number RH60FF186 WG BG SG RG SS Rated Voltage 220V – 240V ~ 50Hz Capacity 297L External Dimensions(HxWxD) 1855mm x 595mm x 638mm For Customer Services & Spare Parts please call 0345 208 8750 Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm... -
Page 33: Notes
Notes For Customer Services & Spare Parts please call 0345 208 8750 Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm or visit us at www.productcare.co.uk... - Page 34 Notes For Customer Services & Spare Parts please call 0345 208 8750 Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm or visit us at www.productcare.co.uk...
- Page 35 Notes For Customer Services & Spare Parts please call 0345 208 8750 Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm or visit us at www.productcare.co.uk...
- Page 36 For Customer Services & Spare Parts please call 0345 208 8750 Opening times: Monday – Friday 8am – 8pm & Saturday 9am – 1pm or visit us at www.productcare.co.uk This symbol is known as the 'Crossed-out wheelie bin Symbol'. When this symbol is marked on a product/batteries, it means that the product/batteries should not be disposed of with your general household waste.
