Stem Mounting, Thermal Type – K4100 Series

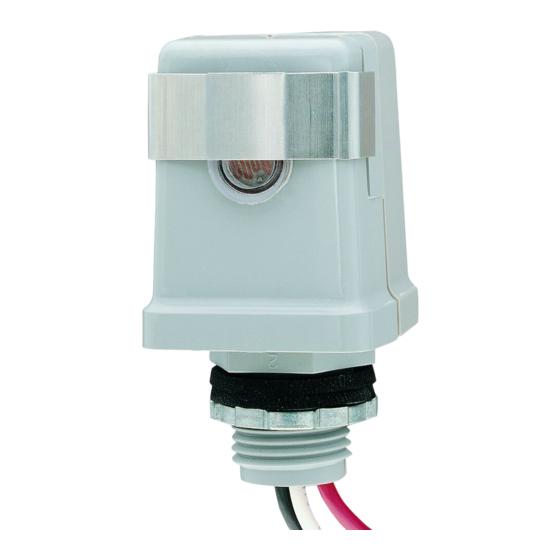

This series features single and multivolt models in both stem mount and stem mount with a swivel . All models
are equipped with a light level slide adjustment and provide a 1/2"-14 threaded stem . A washer gasket and
locking nut are packaged with each photo control . Models with "M" suffix have heavy duty die cast housings .
Model K4251 and K4253 have photo eye located on top and are designed for spot/flood type fixtures .
Size – K4100 Series - 1-9/16" (4 .0 cm) Square, 3" (7 .6 cm) Long;
K4200 Series - 1/2"-14 threaded swivel, 1-9/16" (4 .0 cm) Square, 5-1/2" (14 .0 cm) Long;
Model K4236 - 5-3/4" (14 .6 cm) High, 3" (7 .6 cm) Diameter .
Model # Watts Tungsten
K4121C
K4121M
K4421M
K4124
K4122
K4123C
K4423M***
K4133
K4127****
K4135*
K4136M
**K4141C*
* Not UL listed or CSA certified.
** 1 year warranty.
*** Model K4423M replaces K4123M
**** Certified by CSA to US and Canadian Standards.
UL773A C22 .2-55
E42722 LR38068
Stem & Swivel Mounting, Thermal Type – K4200 Series
Model # Watts Tungsten
K4221C
K4224
K4222
K4223C
K4233
K4227***
K4235*
K4236C
K4251***
K4253***
* Not UL listed or CSA certified.
***Certified by CSA to US and Canadian Standards.
UL773A C22 .2-55
E42722 LR38068
