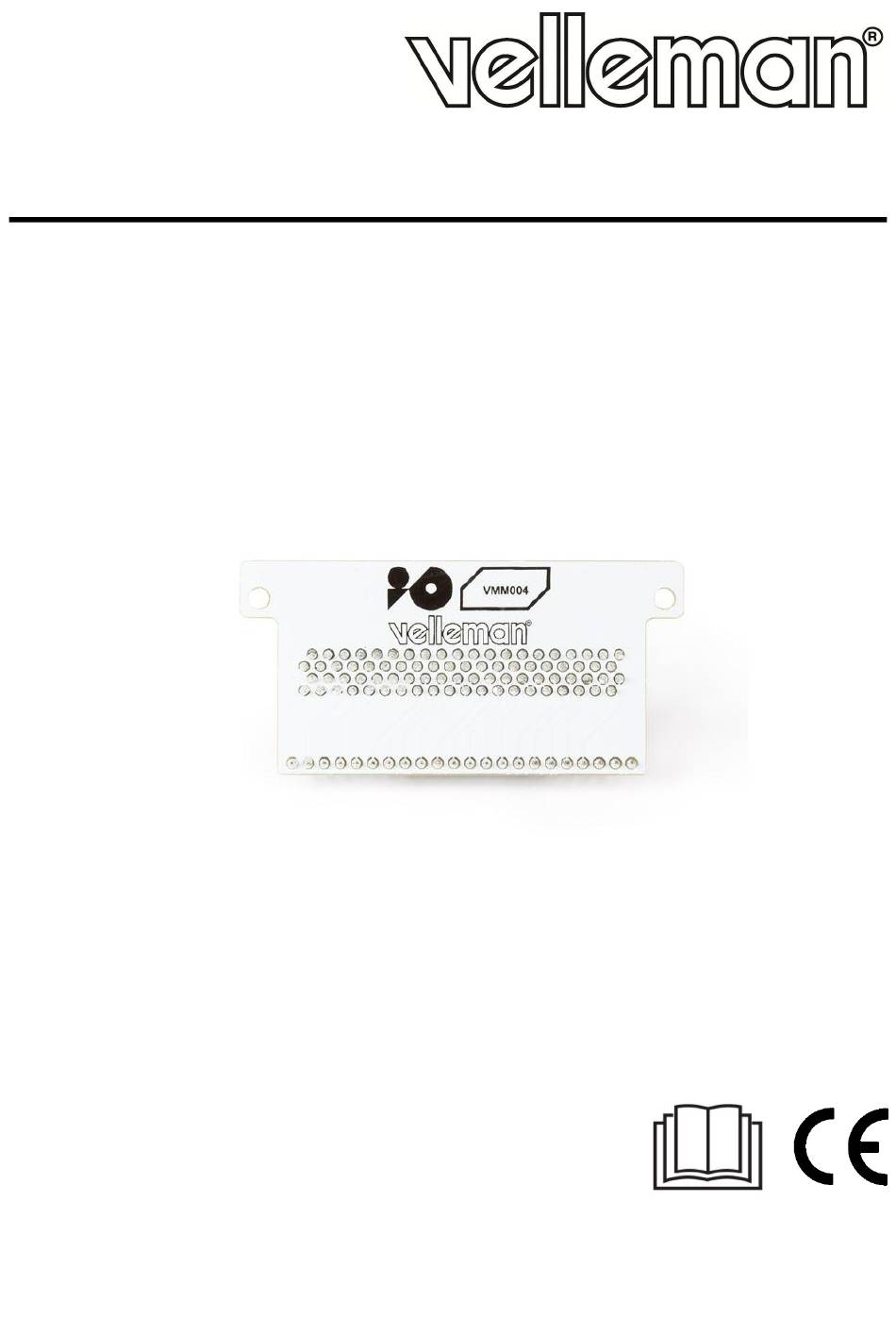

- Page 1 VMM004 GPIO ADAPTOR BOARD FOR MICRO:BIT USER MANUAL...
-
Page 2: Safety Instructions
Nor Velleman nv nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) – of any nature (financial, physical…) arising from the possession, use or failure of this product. -
Page 3: Pin Layout

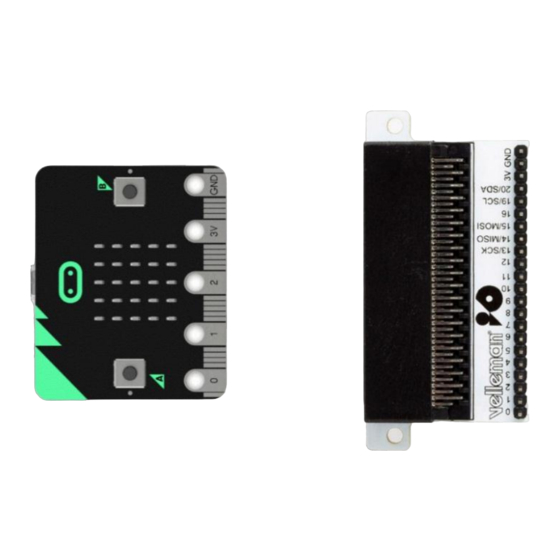

PC, tablet or mobile. Overview VMM004 The VMM004 offers an easy way to connect additional circuits to the edge connector on the micro:bit. The mounting holes allow you to fix the VMM004 and micro:bit combination into a housing. 22 pins pinheader... -
Page 4: Power Connection
VMM004 analogue in LED col 3 button B reserved SPI1 - SCK SPI1 - MISO SPI1 - MOSI I2C - SCL I2C - SDA More info on http://microbit.org/guide/hardware/pins/. Power Connection The micro:bit uses 3.3 V, 5 mA. Do not apply more than 3.3 VDC on the I/O pins! V. - Page 5 © COPYRIGHT NOTICE The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.
- Page 6 • Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.
