Summary of Contents for Gazebo penguin W1608

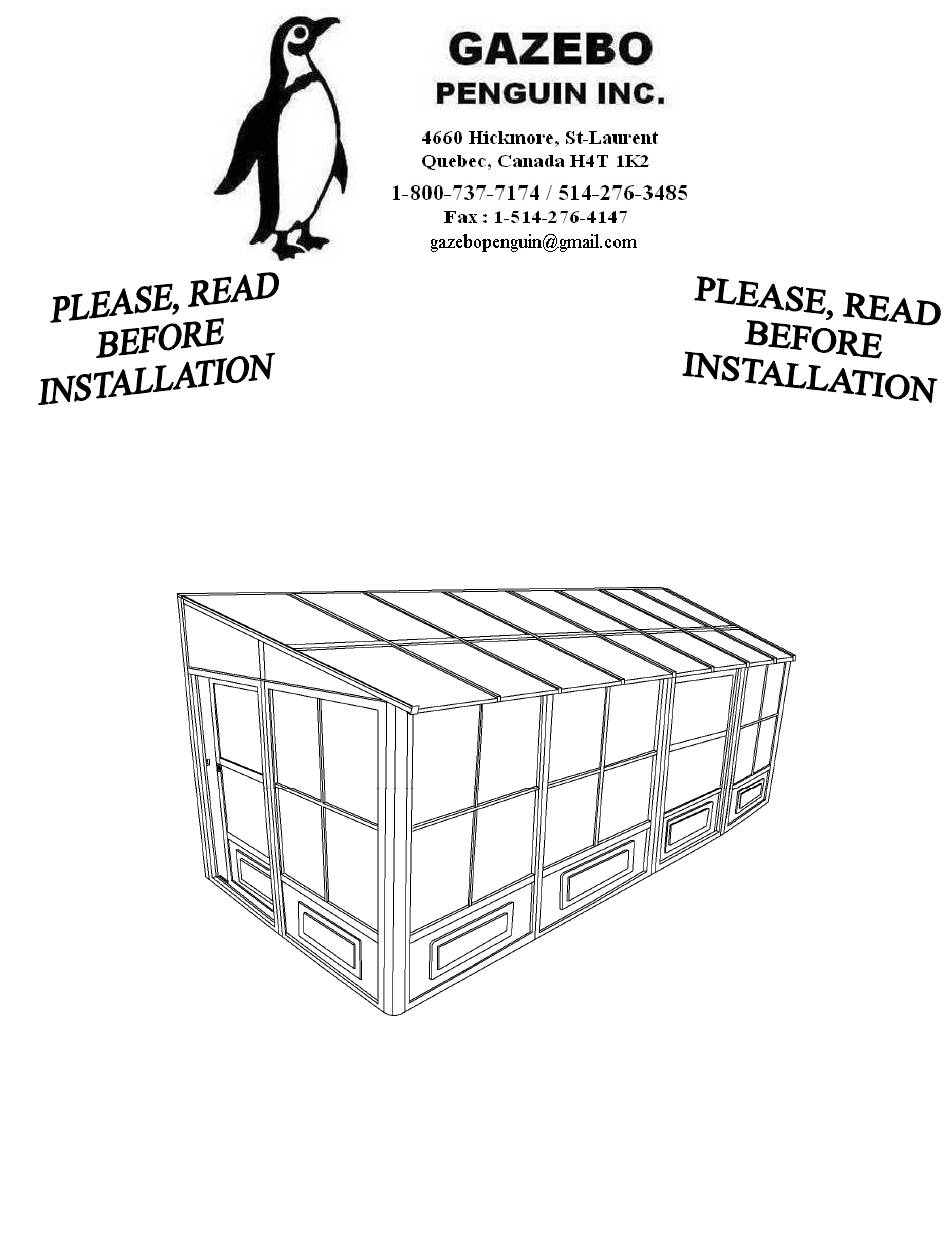

- Page 1 W1608 8 X 16 SOLARIUM ASSEMBLY INSTRUCTIONS Assembly by more than one person is suggested. Base Dimensions 190’’x 94 1/2’’, Largest Dimensions 190’’x98 1/2’’ (see pg.13) L:\WP51\Instructions\SOLARIUMS INSTRUCTION BOOKS\W1608\ZZZ-188.W1608.GP.EN.REV5.doc SUN-HO-REV5...
-
Page 2: Tools Required
Next, slide three (3) Yy-3 and one (1) Zz-3 from left side to right on top of the frame. The groove should be towards the interior of the unit. Repeat from right side and space evenly. L:\WP51\Instructions\SOLARIUMS INSTRUCTION BOOKS\W1608\ZZZ-188.W1608.GP.EN.REV5.doc SUN-HO-REV5... - Page 3 P-3 joint and one (1) Ss-3 panel, then do the right side with one (1) Tt-3 panel, one (1) Q-3 joint and one (1) Uu-3 panel over the J-3 horizontal panel. Secure P-3 and Q-3 to I-3 and J-3 respectively with self-tapping screws. L:\WP51\Instructions\SOLARIUMS INSTRUCTION BOOKS\W1608\ZZZ-188.W1608.GP.EN.REV5.doc SUN-HO-REV5...
- Page 4 Set U-3 rafters over the middle of each panel with Bb-3 screws at the top and two (2) Z-3 screws over the brackets on frame manually. Set U-3 rafter on each joint screws manually. Do not use power drill. L:\WP51\Instructions\SOLARIUMS INSTRUCTION BOOKS\W1608\ZZZ-188.W1608.GP.EN.REV5.doc SUN-HO-REV5...
- Page 5 Make sure the panels are inside the aluminum middle roof joint groove. Insert a V-3 at either end, then insert all W-3 and then the remaining V-3. Tap gently with rubber mallet if needed. L:\WP51\Instructions\SOLARIUMS INSTRUCTION BOOKS\W1608\ZZZ-188.W1608.GP.EN.REV5.doc SUN-HO-REV5...
- Page 6 Starting at either end, add X-3 edging and one (1) R-3 bracket and screw with Bb-3 manually, do not use power drill. Add Y-3 edging and repeat until you reach the end, then add the X-3 edging. L:\WP51\Instructions\SOLARIUMS INSTRUCTION BOOKS\W1608\ZZZ-188.W1608.GP.EN.REV5.doc SUN-HO-REV5...
- Page 7 Use bolt Bb-3 to affix the plastic stopper H-3 on each end of top door rail F-3. Use Oo-3 screws to affix upper door rail and cap Nn-3, at each end of top rail door. L:\WP51\Instructions\SOLARIUMS INSTRUCTION BOOKS\W1608\ZZZ-188.W1608.GP.EN.REV5.doc SUN-HO-REV5...
- Page 8 (Ww) and washers (Gg-3) on the inside and female bolts (Cc-3-2) on the outside for the top assembly. See diagram below. Attach lower track with bolts (Cc-3) and washers (Gg-3). Set up door latch on the side required for your door to lock, adjust latch as required. L:\WP51\Instructions\SOLARIUMS INSTRUCTION BOOKS\W1608\ZZZ-188.W1608.GP.EN.REV5.doc SUN-HO-REV5...
-
Page 9: Cleaning Instructions
Use only mild or warm soapy water, no strong or abrasive cleaning products. Be sure to remove heavy snow and/or ice. WARNING: 1) Do not use BBQ or any other flammable product inside the solarium. 2) Remove snow from the roof. L:\WP51\Instructions\SOLARIUMS INSTRUCTION BOOKS\W1608\ZZZ-188.W1608.GP.EN.REV5.doc SUN-HO-REV5... - Page 10 RAIL STOPPER 10-500 10-501 LEFT SIDE RIGHT SIDE RECEIVER RECEIVER 10-502 10-532 CORNER TRACK CONNECTOR ML-3 10-533 10-505 TRACK TRACK JOINT MR-3 10-506 10-507 RAFTER LEFT GABLE BRACKET JOINT 10-508 10-509 RIGHT GABLE ROOF RAFTER JOINT L:\WP51\Instructions\SOLARIUMS INSTRUCTION BOOKS\W1608\ZZZ-188.W1608.GP.EN.REV5.doc SUN-HO-REV5...
- Page 11 BOLT Bb-3 Cc-3 08-165 12-037 RIGHT DOOR FEMALE BOLT LATCH Cc-3-2 Dd-R-3 08-169 08-167 LEFT DOOR SCREW LATCH Ee-3 Dd-L-3 08-168 08-187 BOLT WASHER Ff-3 Gg-3 10-517 08-193 END ROOF PLASTIC PLUG CROSS BAR Ii-3 Jj-3 L:\WP51\Instructions\SOLARIUMS INSTRUCTION BOOKS\W1608\ZZZ-188.W1608.GP.EN.REV5.doc SUN-HO-REV5...
- Page 12 RIGHT FRONT LEFT WALL GABLE PANEL GUIDE Uu-3 Vv-3 10-528 10-529 RIGHT WALL SCREW FOR GUIDE FIXING TO Ww-3 WALL Xx-3 10-530 10-531 REGULAR TOP END TOP FILLER FILLER Yy-3 Zz-3 12-036 12-047 PHILLIPS #2 BOLT SCREWDRIVER L:\WP51\Instructions\SOLARIUMS INSTRUCTION BOOKS\W1608\ZZZ-188.W1608.GP.EN.REV5.doc SUN-HO-REV5...
- Page 13 L:\WP51\Instructions\SOLARIUMS INSTRUCTION BOOKS\W1608\ZZZ-188.W1608.GP.EN.REV5.doc SUN-HO-REV5...
-
Page 14: Maintenance Notes
Warranty set forth below, it is warranted to be free of material and manufacturing defects for a period of one year from the date of purchase. Should the product become damaged, or the warranty period has expired, please contact Gazebo Penguin Customer Service Department for a complete schedule of replacement parts and prices.
