Gazebo penguin W1207-32 Assembly Instructions Manual

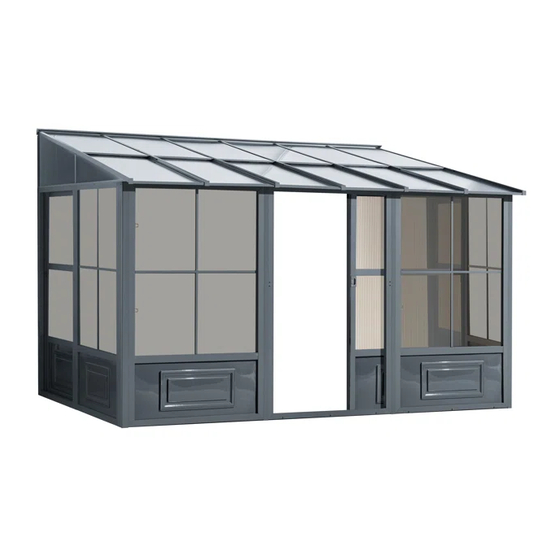

8 x 12 solarium
Hide thumbs Also See for W1207-32:
Table of Contents

Advertisement

Quick Links

Download this manual
customerservice@gazebopenguin.com

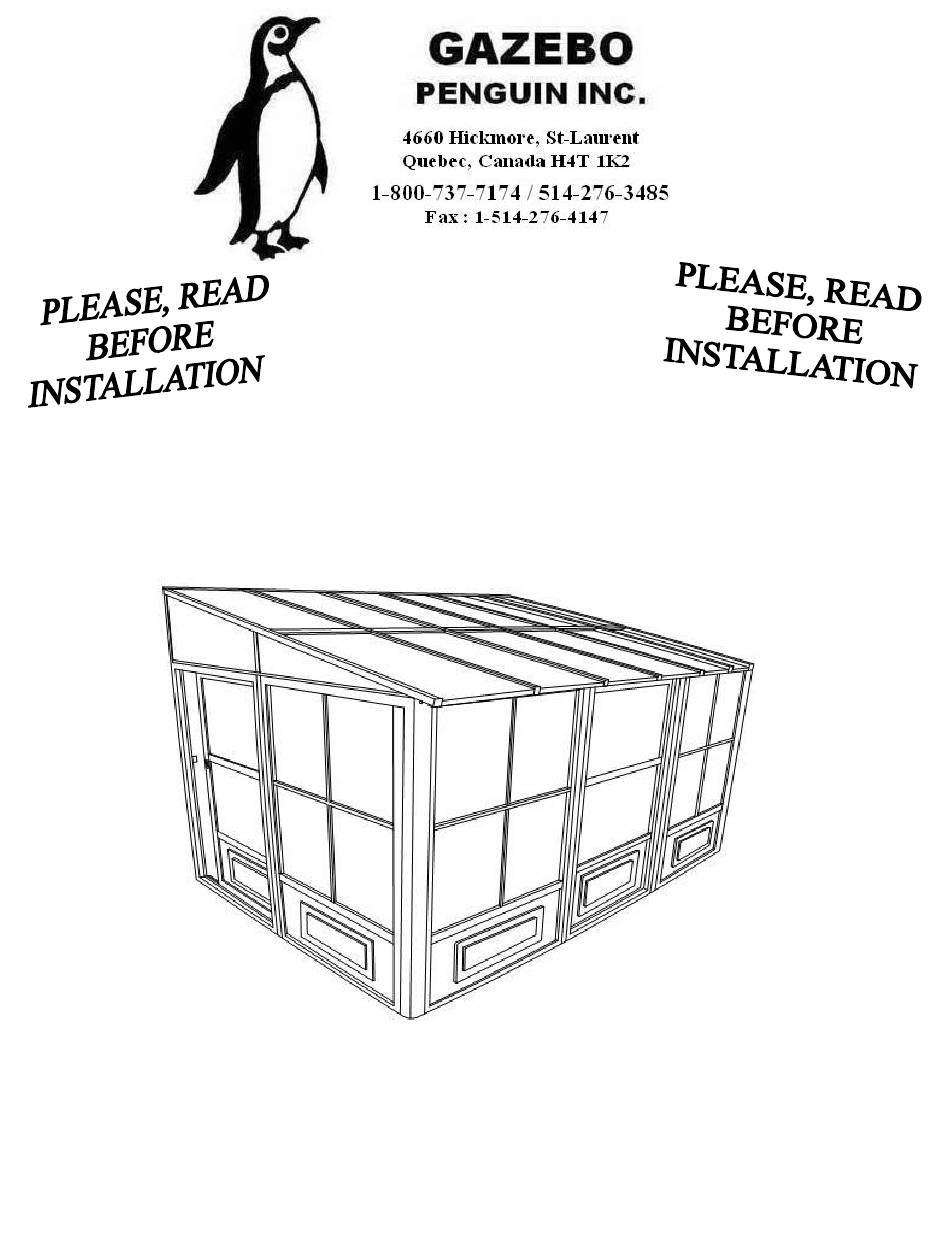

W1207-32
8 X 12 SOLARIUM
ASSEMBLY INSTRUCTIONS
DO NOT DESTROY THE BOXES UNTIL COMPLETELY ASSEMBLED
Assembly by more than one person is suggested.
Requires 96" clearance at the wall
Base Dimensions 144''x 94 1/2'', Largest Dimensions 144''x98 1/2'' (see pg.13)
ZZZ-187.W1207-32.1129-17.GP.EN.HER
HER-HL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W1207-32 and is the answer not in the manual?

Questions and answers

Related Manuals for Gazebo penguin W1207-32

Summary of Contents for Gazebo penguin W1207-32

  • Page 1 W1207-32 8 X 12 SOLARIUM ASSEMBLY INSTRUCTIONS DO NOT DESTROY THE BOXES UNTIL COMPLETELY ASSEMBLED Assembly by more than one person is suggested. Requires 96” clearance at the wall Base Dimensions 144’’x 94 1/2’’, Largest Dimensions 144’’x98 1/2’’ (see pg.13) ZZZ-187.W1207-32.1129-17.GP.EN.HER...

  • Page 2: Tools Required

    Next, slide two (2) Yy-3 and one (1) Zz-3 from left side to right on top of the frame. The groove should be towards the interior of the unit. Repeat from right side with two (2) YY-3 and one (1) Zz-3 and space evenly. ZZZ-187.W1207-32.1129-17.GP.EN.HER HER-HL...
  • Page 3 P-3 joint and one (1) Ss-3 panel, then do the right side with one (1) Tt-3 panel, one (1) Q-3 joint and one (1) Uu-3 panel over the J-3 horizontal panel. Secure P-3 and Q-3 to I-3 and J-3 respectively with self-tapping screws (PQ-3). ZZZ-187.W1207-32.1129-17.GP.EN.HER HER-HL...
  • Page 4 Set U-3 rafters over the middle of each panel with Bb-3 screws at the top and two (2) Z-3 screws over the brackets on frame manually. Set U-3 rafter on each joint screws manually. Do not use power drill. ZZZ-187.W1207-32.1129-17.GP.EN.HER HER-HL...
  • Page 5 Make sure the panels are inside the aluminum middle roof joint groove. Insert a V-3 at either end, then insert all W-3 and then the remaining V-3. Tap gently with rubber mallet if needed. ZZZ-187.W1207-32.1129-17.GP.EN.HER HER-HL...
  • Page 6 STEP #10 Starting at either end, add X-3 edging and one (1) R-3 bracket and screw with Bb-3 manually, do not use power drill. Add Y-3 edging and repeat until you reach the end, then add the X-3 edging. ZZZ-187.W1207-32.1129-17.GP.EN.HER HER-HL...
  • Page 7 Use bolt Bb-3 to affix the plastic stopper H-3 on each end of top door rail F-3. Use Oo-3 screws to affix upper door rail and cap Nn-3, at each end of top rail door. ZZZ-187.W1207-32.1129-17.GP.EN.HER HER-HL...
  • Page 8 (Ww) and washers (Gg-3) on the inside and female bolts (Cc-3-2) on the outside for the top assembly. See diagram below. Attach lower track with bolts (Cc-3) and washers (Gg-3). Set up door latch on the side required for your door to lock, adjust latch as required. ZZZ-187.W1207-32.1129-17.GP.EN.HER HER-HL...

  • Page 9: Special Notes

    Use only mild or warm soapy water, no strong or abrasive cleaning products. Be sure to remove heavy snow and/or ice. WARNING: 1) Do not use a BBQ or any other flammable product inside the solarium. 2) Remove snow from the roof. ZZZ-187.W1207-32.1129-17.GP.EN.HER HER-HL...
  • Page 10 BOTTOM DOOR PLASTIC RAIL STOPPER 10-500 10-501 LEFT SIDE RIGHT SIDE RECEIVER RECEIVER 10-502 10-503 CORNER TRACK CONNECTOR ML-3 10-504 10-505 TRACK TRACK JOINT MR-3 10-506 10-507 RAFTER LEFT GABLE BRACKET JOINT 10-508 10-509 RIGHT GABLE ROOF RAFTER JOINT ZZZ-187.W1207-32.1129-17.GP.EN.HER HER-HL...
  • Page 11 08-161 BOLT BOLT Bb-3 Cc-3 08-169 12-037 LEFT DOOR FEMALE BOLT LATCH Cc-3-2 Dd-L-3 08-165 08-167 RIGHT DOOR SCREW LATCH Ee-3 Dd-R-3 08-168 08-187 BOLT WASHER Ff-3 Gg-3 10-517 08-193 END ROOF PLASTIC PLUG CROSS BAR Ii-3 Jj-3 ZZZ-187.W1207-32.1129-17.GP.EN.HER HER-HL...
  • Page 12 LEFT WALL GABLE PANEL GUIDE Uu-3 Vv-3 10-529 10-528 SCREW FOR RIGHT WALL FIXING TO GUIDE WALL Ww-3 Xx-3 10-530 10-531 REGULAR TOP END TOP FILLER FILLER Yy-3 Zz-3 12-036 12-047 PHILLIPS #2 BOLT SCREWDRIVER 13-045 SELF-TAPPING SCREW PQ-3 ZZZ-187.W1207-32.1129-17.GP.EN.HER HER-HL...
  • Page 13 ZZZ-187.W1207-32.1129-17.GP.EN.HER HER-HL...

  • Page 14: Maintenance Notes

    Warranty set forth below, it is warranted to be free of material and manufacturing defects for a period of one year from the date of purchase. Should the product become damaged, or the warranty period has expired, please contact Gazebo Penguin Customer Service Department for a complete schedule of replacement parts and prices.

This manual is also suitable for:

W1207-12
