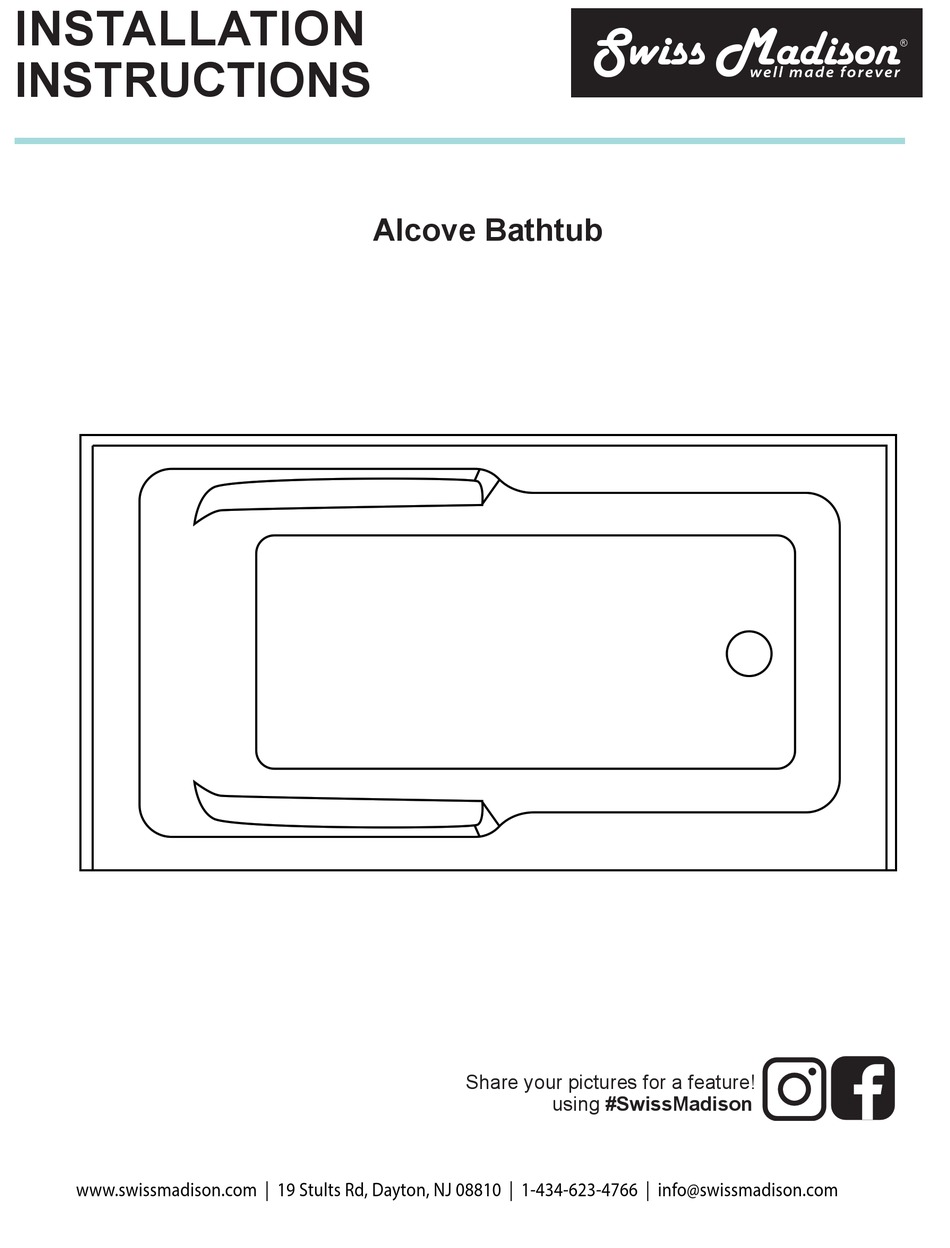

- Page 1 INSTALLATION wiss adison ® INSTRUCTIONS Alcove Bathtub Share your pictures for a feature! using #SwissMadison www.swissmadison.com | 19 Stults Rd, Dayton, NJ 08810 | 1-434-623-4766 | info@swissmadison.com...
-
Page 2: Prior To Installation
Prior to Installation: Inspect bathtub to ensure no damages have occurred while in shipping Observe all plumbing and building codes in accordance with your state and local requirements Additional oor and wall preparations may be necessary to avoid damage to the product To ensure this product is installed properly, please read all instructions before you begin Professional help is recommended All dimensions are nominal! Be sure to measure your bathtub prior to installation... - Page 3 Thank you for your purchase Thank you for purchasing a Swiss Madison Bathtub. We appreciate your business and know you will enjoy your tub for many years to come. If you have any questions or require assistance we would be happy to help, please contact us at 1-434-6234766 or info@swissmadison.com.
- Page 4 54” x 30” x 21 ½” 54” x 30” x 21 ½” 60” x 32” x 22” *Right-Hand Drain *Left-Hand Drain *Left-Hand Drain *COMPATIBLE DRAIN SOLD SEPARATELY, STANDARD 2” DRAIN Bathtub drains NOT sold by Swiss Madison — 3 —...
- Page 5 48” x 32” x 22” 48” x 32” x 22” *Left-Hand Drain *Right-Hand Drain *Left-Hand Drain 22” 30” 60” SM-AB546 60” x 30” x 22” *Right-Hand Drain *COMPATIBLE DRAIN SOLD SEPARATELY, STANDARD 2” DRAIN Bathtub drains NOT sold by Swiss Madison — 4 —...
-
Page 6: Installation Instructions
ALCOVE BATHTUB INSTALLATION INSTRUCTIONS L” H” W” SUGGESTED TOOLS AND MATERIALS Drop Cloth Tape Measure Safety Glasses Utility Knife Pencil Square Cast Iron bar Level Adhesive Sealant Screwdriver Caulk Gun 1 tube 1 tube 3pcs. (supplied) Screw 6pcs. (supplied) - Page 7 ALCOVE BATHTUB INSTALLATION INSTRUCTIONS WARNING: All plumbing installations must be done in accordance to legal regulations. Read the complete instruction manual before beginning installation. Con rm that your model will t in intended location and plumbing xtures are located where legally required before beginning installation. Not all drawings on this manual are drawn to scale.
- Page 8 ALCOVE BATHTUB INSTALLATION INSTRUCTIONS Attaching cast iron bars ATTENTION! Assemble bathtub on drop cloth or rug to protect its surface. Flip tub on upside-down using a drop cloth for protection. Slide hook end of iron cast bar into position as seen in picture. Use level tool to verify apron is vertical to the ground.
- Page 9 ALCOVE BATHTUB INSTALLATION INSTRUCTIONS Leveling Bathtub Flip tub back to standing position. Adjust the leg height to ensure tub is level with oor and apron, verify tub is level using level tool. Setting the Bathtub Set down bathtub back in the predetermined location. Use level tool to verify tub is ush with oor for maximum stability.
-
Page 10: One-Year Limited Warranty
The Swiss Madison® warranty is a comprehensive and explicit limit of liability, and all items outside of it are not addressable by or the responsibility of Swiss Madison®. Certain states have variances regarding implied warranties and in those situations we remain fully compliant.
