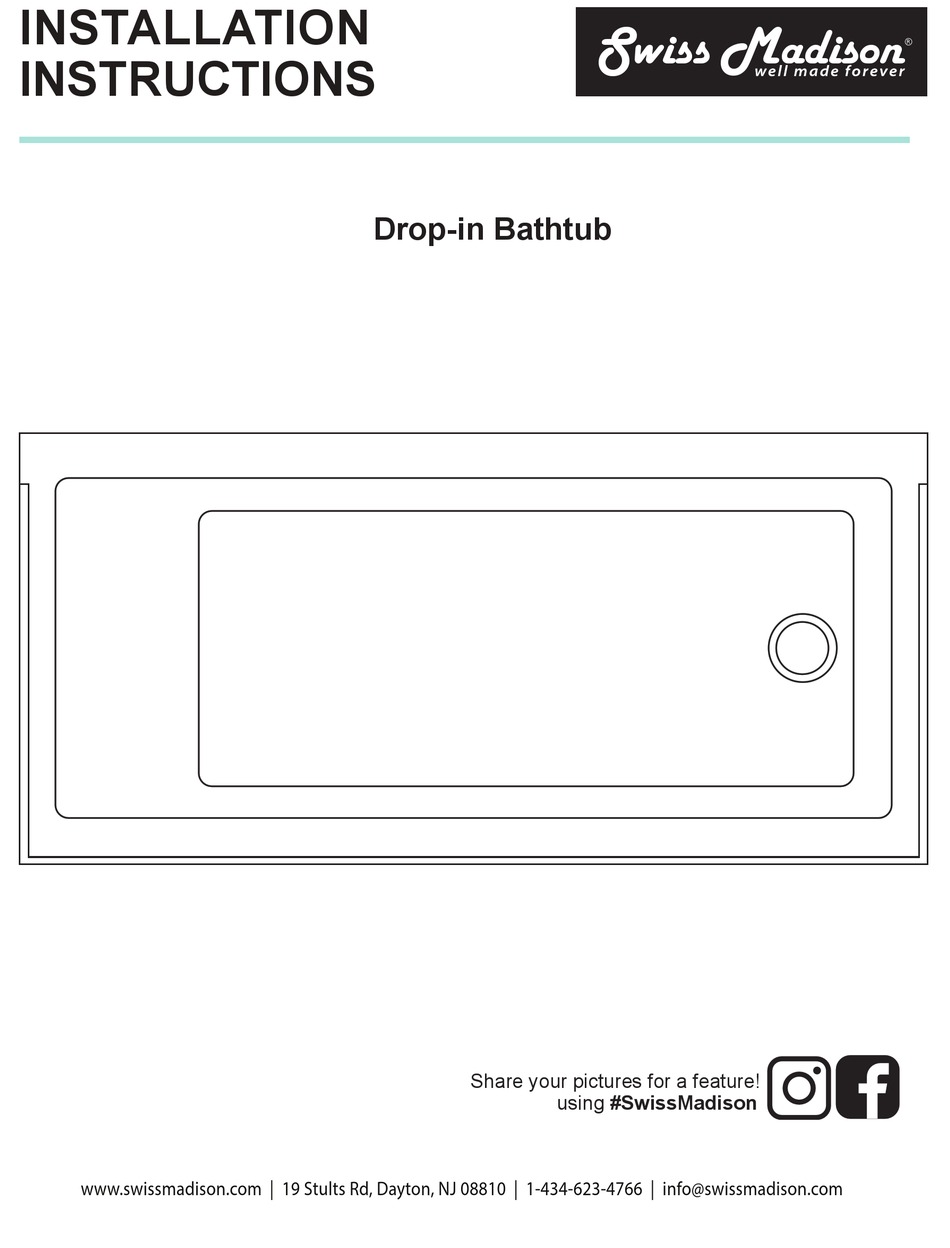

- Page 1 INSTALLATION wiss adison ® INSTRUCTIONS Drop-in Bathtub Share your pictures for a feature! using #SwissMadison www.swissmadison.com | 19 Stults Rd, Dayton, NJ 08810 | 1-434-623-4766 | info@swissmadison.com...
-
Page 2: Prior To Installation
Prior to Installation: Inspect bathtub to ensure no damages have occurred while in shipping Observe all plumbing and building codes in accordance with your state and local requirements Additional oor and wall preparations may be necessary to avoid damage to the product To ensure this product is installed properly, please read all instructions before you begin Professional help is recommended All dimensions are nominal! Be sure to measure your bathtub prior to installation... - Page 3 Thank you for your purchase Thank you for purchasing a Swiss Madison Bathtub. We appreciate your business and know you will enjoy your tub for many years to come. If you have any questions or require assistance we would be happy to help, please contact us at 1-434-6234766 or info@swissmadison.com.
- Page 4 SM-DB562 SM-DB564 48” x 32” x 20” 60” x 32” x 20” 60” x 32” x 20” *Right-Hand Drain *Left-Hand Drain *Right-Hand Drain *COMPATIBLE DRAIN SOLD SEPARATELY, STANDARD 2” DRAIN Bathtub drains NOT sold by Swiss Madison — 3 —...
- Page 5 SM-DB569 SM-DB570 66” x 36” x 19.5” 60” x 30” x 22” 60” x 36” x 22” *Reversible Drain *Reversible Drain *Reversible Drain *COMPATIBLE DRAIN SOLD SEPARATELY, STANDARD 2” DRAIN Bathtub drains NOT sold by Swiss Madison — 4 —...
-
Page 6: Installation Instructions
DROP IN BATHTUB INSTALLATION INSTRUCTIONS SUGGESTED TOOLS AND MATERIALS Drop Cloth Tape Measure Square Safety Glasses Utility Knife Pencil Level Sealant Shims Screwdriver Caulk Gun Adhesive 1 tube 1 tube 30mm Screws Phillips Bit Extension Bit 1/4” V-Notched (Zinc/Stainless; Holder Trowel Plain/Roundhead) (for use with... - Page 7 DROP IN BATHTUB INSTALLATION INSTRUCTIONS WARNING: All plumbing installations must be done in accordance to legal regulations. Read the complete instruction manual before beginning installation. Con rm that your model will t in intended location and plumbing xtures are located where legally required before beginning installation. Not all drawings on this manual are drawn to scale.
- Page 8 TIP: If installation surface is not level, use leveling compound or mortar bed for proper installation. 3. Ensure Tub is Level 4. Drill and Install Plumbing Fixtures NOTE: Swiss Madison is not responsible for any damages to the tub or home during entire installation process.
- Page 9 Secure tub by screwing ange into the predrilled holes from step 4. TIP: Place drop cloth in bathtub and stand inside bathtub to press it into oor when securing to wall studs. NOTE: Swiss Madison is not responsible for any damages to the tub or home during entire installation process.
-
Page 10: One-Year Limited Warranty
The Swiss Madison® warranty is a comprehensive and explicit limit of liability, and all items outside of it are not addressable by or the responsibility of Swiss Madison®. Certain states have variances regarding implied warranties and in those situations we remain fully compliant.
