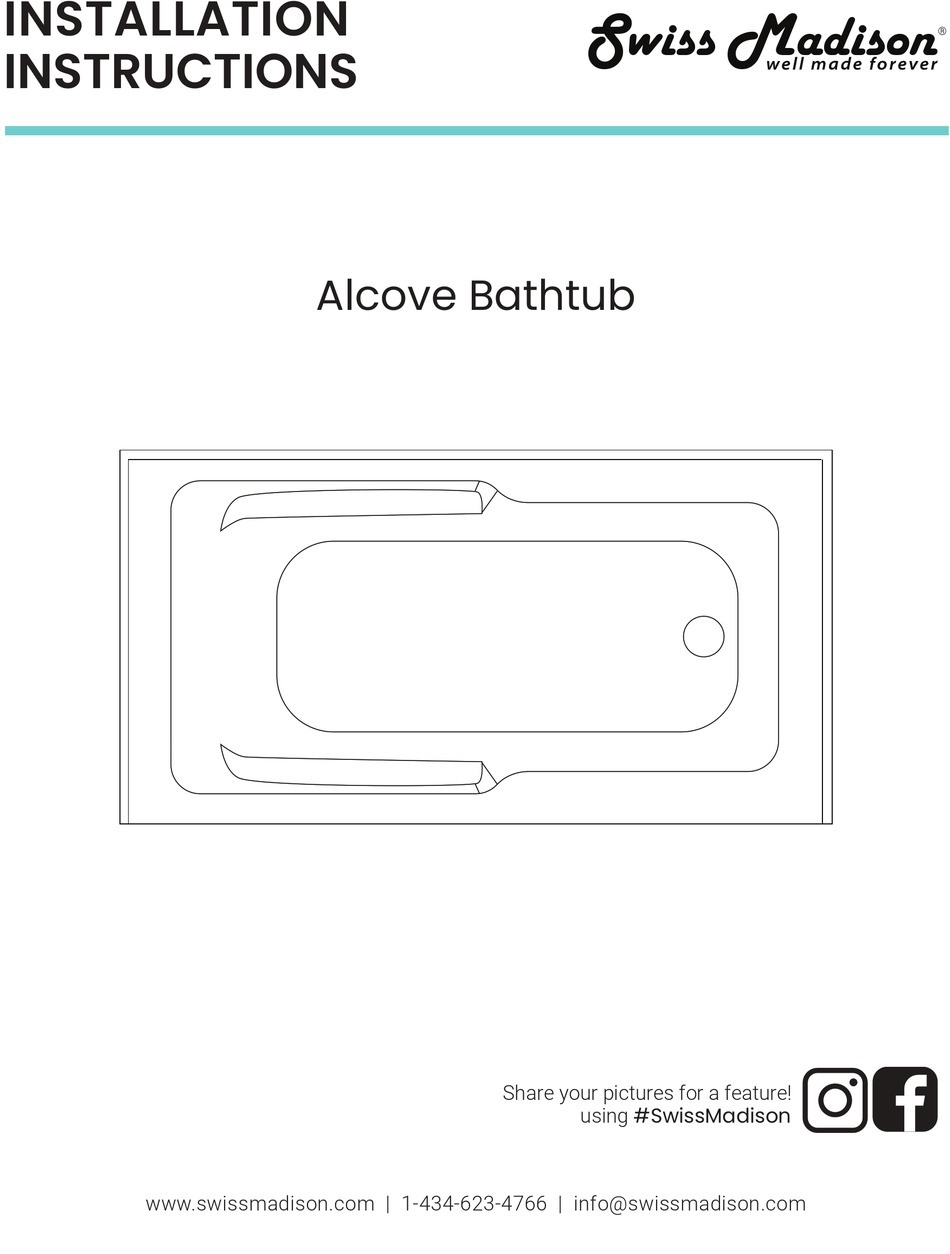

- Page 1 INSTALLATION wiss adison ® INSTRUCTIONS Alcove Bathtub Share your pictures for a feature! using #SwissMadison www.swissmadison.com | 1-434-623-4766 | info@swissmadison.com...
-
Page 2: Prior To Installation
Thank you for your purchase! Thank you for purchasing a Swiss Madison Bathtub. We appreciate your business and know you will enjoy your product for many years to come. If you have any questions or require assistance we would be happy to help, please contact us at 1-434-6234766 or info@swissmadison.com. - Page 3 60” 60” Voltaire Voltaire Voltaire 60” x 30” x 22” 60” x 30” x 22” 60” x 32” x 22” SM-AB540 - Glossy White SM-AB541 - Glossy White SM-AB542 - Glossy White SM-AB540MB - Matte Black SM-AB541MB - Matte Black...
- Page 4 ALCOVE BATHTUB MODELS 22” 22” 22” 30” 48” 48” 60” Voltaire Voltaire Voltaire 48” x 32” x 22” 48” x 32” x 22” 60” x 30” x 22” SM-AB551 - Glossy White SM-AB552 - Glossy White SM-AB545 - Glossy White *Right-Hand Drain *Left-Hand Drain *Left-Hand Drain...
-
Page 5: Installation Instructions
ALCOVE BATHTUB INSTALLATION INSTRUCTIONS H” L” W” SUGGESTED TOOLS AND MATERIALS Safety Glasses Utility Knife Pencil Tape Measure Square Drop Cloth Screw 6 pcs. (included) Level Screwdriver Caulk Gun Adhesive Sealant Cast Iron bar 1 tube 1 tube 3 pcs. (included) —... - Page 6 Place tub at final desired location and verify floor drain and bathtub drain align. Rough-In Measurements: Left-Hand Drain: Right-Hand Drain SM-AB541 : 10 5⁄8” SM-AB540 : 10 5⁄8” SM-AB543 : 10 5⁄8” SM-AB542 : 10 5⁄8” SM-AB549 : 7 7⁄8” SM-AB550 : 7 7⁄8”...
- Page 7 ALCOVE BATHTUB INSTALLATION INSTRUCTIONS 2. Attach Cast Iron Bars Flip tub on upside-down using a drop cloth for protection. · · Use level tool to verify apron is vertical to the ground. · Screw cast iron bar (flat end) into raised wood platform on bottom of tub. ·...
- Page 8 ALCOVE BATHTUB INSTALLATION INSTRUCTIONS 4. Set Bathtub Set down bathtub back in the predetermined location. · · Use level tool to verify tub is flush with floor for maximum stability. · Apply bead of silicone sealant where the apron and floor meet to create a water tight seal. Wall Studs Square Level...
- Page 9 (including, without limitation, costs associated with ‘professionals’ or ‘experts’, investigations, audits, analyses, attorneys and any other professional/hired services). The Swiss Madison® warranty is a comprehensive and explicit limit of liability. All items not disclosed within the warranty are not addressable within the responsibility of Swiss Madison®. Certain states have variances regarding implied warranties;...
