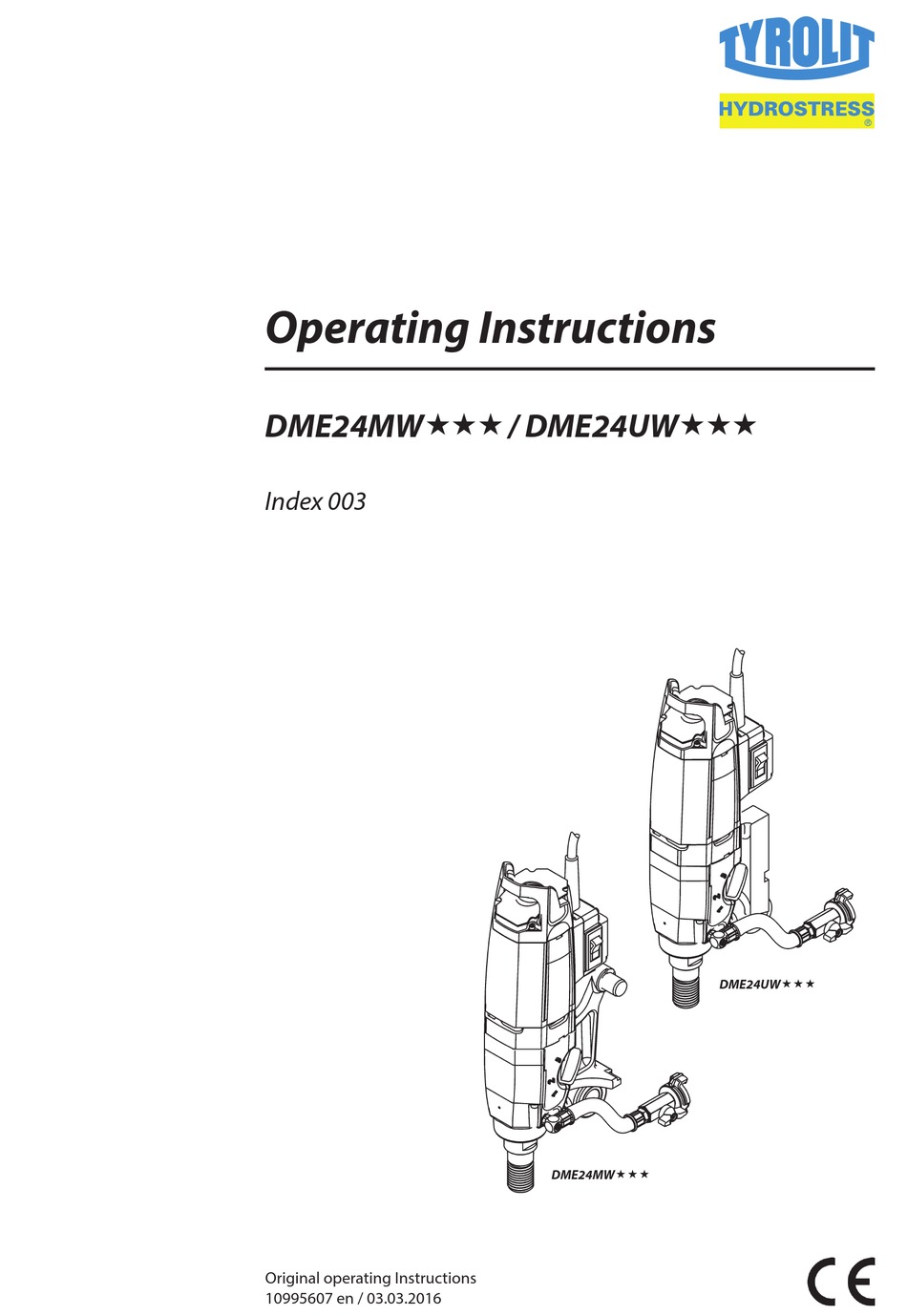

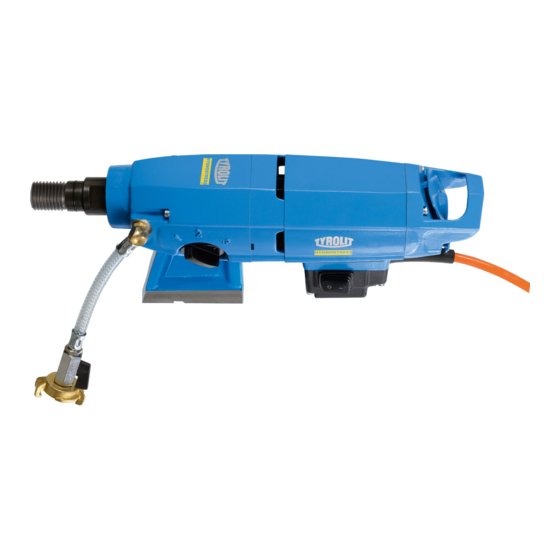

- Page 1 Operating Instructions DME24MW / DME24UW Index 003 DME24UW DME24MW Original operating Instructions 10995607 en / 03.03.2016...
- Page 2 Any repair work must be carried out by trained personnel only. Our after-sales service is available to help ensure that your TYROLIT Hydrostress units remain in perfect working order.
-
Page 3: Table Of Contents
TYROLIT Hydrostress AG Table of contents Page Concerning these instructions ........... . -
Page 4: Concerning These Instructions
TYROLIT Hydrostress AG Concerning these instructions These instructions are just one part of the documentation which is supplied together with the electric tool. These instructions go together with the “Core Drills Safety Manual / System Description” to form a complete set of documentation. -
Page 5: Safety
Safety clothing Spare parts and modifications Only original spare parts from TYROLIT Hydrostress must be used. Otherwise damage may be caused to the equipment or to other property and persons. No additions or modifications must be made to the equipment without written permission from TYROLIT Hydrostress. - Page 6 TYROLIT Hydrostress AG Danger and working area 2.3.1 Danger zone at electrical tool The marked area on the drawing defines the danger zone of the electrical and cutting tool. The minimum clearance of 15 cm must be maintained during operation.
- Page 7 TYROLIT Hydrostress AG Residual risks Risk of serious injuries from the residual risks described in the chapters that follow. 2.5.1 Diamond segments flying off X Do not start drilling if any other persons are in the danger zone. X Ensure that a safety distance is maintained.
-
Page 8: Product Description
Manipulation or modifications to the equipment, the drilling stand or the accessories are not permitted. Always use original TYROLIT Hydrostress accessories and suitable tools during use in order to prevent injuries. - Page 9 TYROLIT Hydrostress AG Technical data and main dimensions 3.4.1 Technical data Drill motor DME24MW DME24UW Nominal voltage 230 V 110 V 230 V 110 V Frequency 50 Hz 60 Hz 50 Hz 60 Hz Drill diameter range 40 - 250 mm Nominal power 2.2 kW...
- Page 10 TYROLIT Hydrostress AG 3.4.2 Measurements Measurements in mm Lubricants, fluids Lubricants, fluids and sealants Parameter Value Gear oil ISO 100 (TYROLIT No. 10993830/250ml) Name plate The type designation and serial number are marked on the name plate of your electrical tool.
-
Page 11: Design And Function
TYROLIT Hydrostress AG Design and function Design Design 1 Gearbox DME24UW Residual current circuit breaker 2 Gearbox DME24MW Water connection 3 Motor Function 4.2.1 Functional description The drilling spindle of the electrical tool is powered by an electric motor via a mechanical manual gearbox. - Page 12 TYROLIT Hydrostress AG Operating elements and displays 4.3.1 Controls Operating elements 1 Handle Rotary switch / gear 2 Main On / Off switch Water valve 4.3.2 Displays Power display when at standstill LED 1 illuminates in green Electrical tool is ready...
-
Page 13: Assembly / Disassembly
TYROLIT Hydrostress AG Assembly / Disassembly Drill rig interface Drill rig interface Cutting tool interface Cutting tool interface DME24MW / DME24UW Page 13... - Page 14 TYROLIT Hydrostress AG Power supply INFORMATION • The power supply must correspond with the information on the type plate. • Protect the connecting cables from heat, oil and sharp edges. • Do not use connecting cables for unsuitable purposes. • Never carry the electrical tool using the connecting cable.
-
Page 15: Operation
TYROLIT Hydrostress AG Operation DANGER • Never work without suitable safety equipment. • Always wear hearing protection. • Remove adjusting and installation tools before switching the electrical tool on. • Never work on ladders. • Keep children away from the electrical tool and the working area. - Page 16 Malfunctions Malfunction Possible cause Remedy The electrical tool cannot be started Mains cable is defective X Contact TYROLIT Hydrostress AG aftersales Faulty power supply X Check power supply Electric motor or electronics X Contact TYROLIT Hydrostress AG aftersales faulty Electrical tool starts up and then switches...
-
Page 17: Servicing And Maintenance
(Service interval 150 / 300 / 450 / 600 hours) Take waste for recycling TYROLIT Hydrostress tools are manufactured using a high proportion of recyclable materials. A prerequisite for recycling is proper material separation. In many countries, TYROLIT is already prepared for taking back your used equipment for recycling. -
Page 18: Ec Declaration Of Conformity
TYROLIT Hydrostress AG EC Declaration of Conformity Description Electric drill motor Type designation DME24MW / DME24UW Year of construction 2012 We declare under our sole responsibility that this product complies with the following direc- tives and standards: Applied directions 2006/42/EC 17.05.2006... - Page 19 TYROLIT Hydrostress AG DME24MW / DME24UW Page 19...
