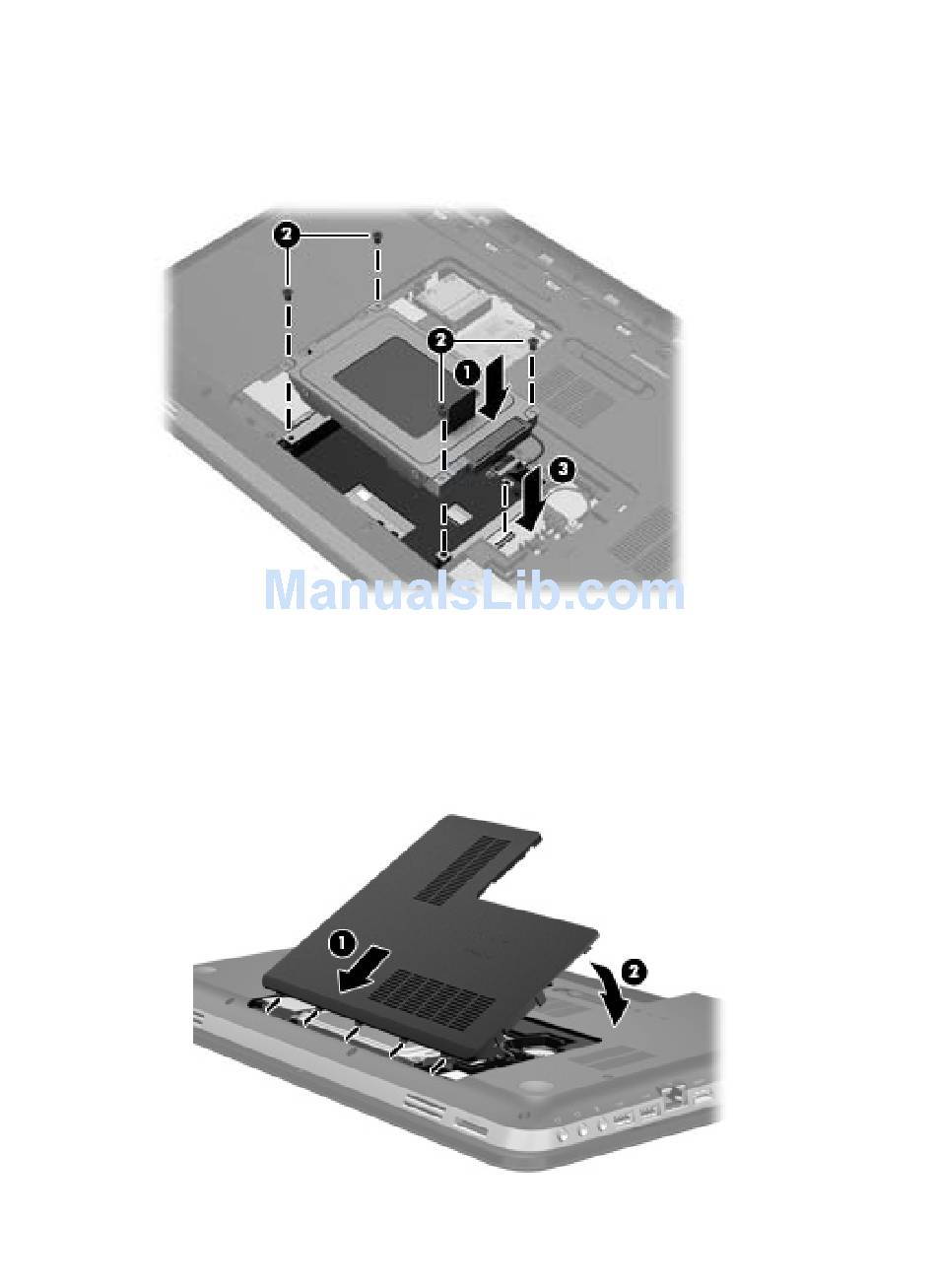

Installing a hard drive
1.
Insert the hard drive (1) into the hard drive bay.
2.
Replace the 4 hard drive screws (2).
3.
Connect the hard drive cable (3) to the computer.
4.
Replace the hard drive cover:
a.
With the battery bay toward you, position the hard drive cover (1) at a 45-degree angle from
the surface of the computer so that the tabs on the underside of the cover align with the
matching slots on the computer.
b.
Gently press the hard drive cover (2) down, applying pressure to both the left and right
edges of the cover, until it snaps into place.
5.
Replace the battery.
Replacing or upgrading the hard drive
33
