B U I L T - I N
V EGCT212F..
Model
• USERS OPERATING INSTRUCTIONS
• INSTALLATION ADVICE
IMPORTANT - PLEASE READ AND FOLLOW
Before beginning, please read these instructions completely and carefully.
Do not remove permanently affixed labels, warnings, or plates from the product. This
may void the warranty.
Please observe all local and national codes and ordinances.
Please ensure that this product is properly grounded.
The installer should leave these instructions with the consumer who should retain
for local inspector's use and for future reference.
The electrical plug should always be accessible
Installation must conform with local codes or in the absence of codes, the National Fuel
Gas Code ANSIZ223.1 - Iatest edition. Electrical installation must be in accordance with the
National Electrical Code, ANSI/NFPA70 - latest edition and/or local codes. IN CANADA:
Installation must be in accordance with the current CAN/CGA-B149.1 National Gas
Installation Code or CAN/CGA-B149.2, Propane Installation Code and/or local codes.
Electrical installation must be in accordance with the current CSA C22.1 Canadian
Electrical Codes Part 1 and/or local codes.
Installation of any gas-fired equipment should be made by a Iicensed plumber. A manual
gas shut-off valve must be installed in the gas supply line ahead of the appliance in the gas
stream for safety and ease of service.
WARNING: IF THE INFORMATION IN THIS MANUAL IS NOT
FOLLOWED EXACTLY, A FIRE OR EXPLOSION MAY RESULT
CAUSING PROPERTY DAMAGE, PERSONAL INJURY, OR DEATH.
Do not store or use gasoline or other flammable vapors and liquids
in the vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your
building.
• lmmediately call your gas supplier from a neighbor's phone.
Follow the gas supplier's instructions.
• lf you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer,
service agency, or the gas supplier.
G A S
C O O K T O P
with safety valve device
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Verona VEGCT212FSS
Summary of Contents for Verona VEGCT212FSS
- Page 1 B U I L T - I N G A S C O O K T O P V EGCT212F.. with safety valve device Model • USERS OPERATING INSTRUCTIONS • INSTALLATION ADVICE IMPORTANT - PLEASE READ AND FOLLOW Before beginning, please read these instructions completely and carefully. Do not remove permanently affixed labels, warnings, or plates from the product.
- Page 2 Dear Customer, Thank you for having purchased and given your preference to our product. The safety precautions and recommendations reported below are for your own safety and that of others. They will also provide a means by which to make full use of the features offered by your appliance. Please preserve this booklet carefully.
-
Page 3: Important Precautions And Recommendations
USER INSTRUCTIONS IMPORTANT PRECAUTIONS AND RECOMMENDATIONS After having unpacked the appliance, check to ensure that it is not damaged. If you have any doubts, do not use it and consult your supplier or a professionally qualified technician. Packing elements (i.e. plastic bags, polystyrene foam, nails, packing straps, etc.) should not be left around within easy reach of children, as these may cause serious injuries. -
Page 4: Control Panel Description

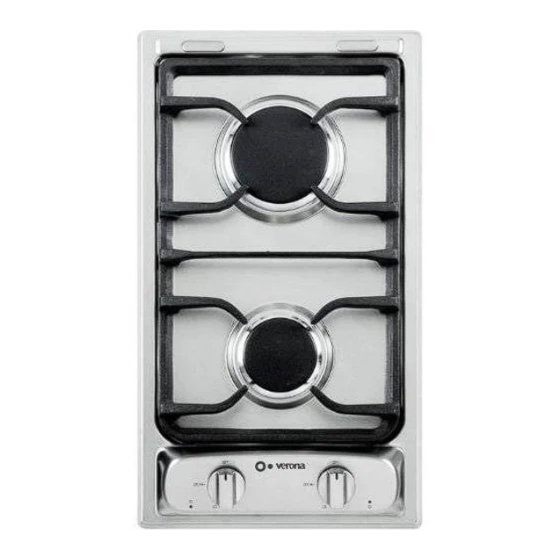

features Fig. 1.1 COOKING POINTS 1. Semirapid burner (SR) - 6,000 BTU/hr 2. Rapid burner (R) - 10,000 BTU/hr CONTROL PANEL DESCRIPTION 3. Rapid burner (R) control knob (2) 4. Semirapid burner (SR) control knob (1) Note: - The electric gas-lighting device is incorporated into the knobs. - The appliance has a safety valve system fitted, the flow of gas will be stopped if and when the flame should accidentally go out. -
Page 5: Using The Gas Cooktop
using the gas cooktop GAS BURNERS Gas flow to the burners is adjusted by turning the knobs (illustrated in fig. 2.1) which control the valves. Turning the knob so that the indicator line points to the symbols printed on the panel achieves the following functions: = closed valve = maximum rate... -
Page 6: Cleaning And Maintenance
cleaning and maintenance GENERAL RECOMANDATION Do not use steam jet cleaners because the humidity could Before you begin cleaning you must ensure that the hob is switched off. infiltrate into the appliance making It is advisable to clean when the appliance is cold. it dangerous. - Page 7 BURNERS AND GRIDS These parts can be removed and cleaned with appropriate products. After cleaning, the burners and their flame distributors must be well dried and correctly replaced. It is very important to check that the burner flame distributor and the cap has been correctly positioned - failure to do so can cause serious problems.
-
Page 8: Installation Instructions
INSTALLATION INSTRUCTIONS WARNING! THIS APPLIANCE HAS TO BE INSTALLED BY A QUALIFIED INSTALLER. Improper installation, adjustment, alteration, services, or maintenance can cause injury or property damage. Consult a qualified installer, service agent, or the gas supplier. TOOLS NEEDED FOR INSTALLATION Screwdriver Wrench T-handle wrench... -
Page 9: General Information
GENERAL INFORMATION WARNING!! ELECTRICAL GROUNDING INSTRUCTIONS 1. Installation must conform with local codes or, in the absence of local codes, with the National Fuel Gas Code, The cooktop must be electrically grounded in accordance with local codes or, in the absence of local codes, with the ANSI Z223.1-Latest Edition. -
Page 10: Cooktop Dimensions
installation to the cabinet COOKTOP DIMENSIONS 11” 21/64 (288 mm) (CUT-OUT) min 4” 10” 5/8 (102 mm) (270 mm) from cut-out BOX DIMENSIONS Fig. 4.1 (CUT-OUT) min 4” (102 mm) 10” 5/8 from cut-out (270 mm) Fig. 4.2... -
Page 11: Proximity To Side Cabinets
PROXIMITY TO SIDE CABINETS 1. The cooktop may be installed directly to existing base cabinets. 24" (610 mm) minimum deep countertop is required. Cooktop dimensions: - width = 11” 21/64 (288 mm); - depth = 20” 1/16 (510 mm). Cut-out dimensions: - width = 10”... -
Page 12: Gas Connection
gas connection All gas connections must be made according to national and local codes. This gas supply (service) line must be the same size or greater than the inlet line of the appliance. Sealant on all pipe joints must be resistant to te action of LP/Propane gas. - Page 13 PRESSURE REGULATOR INSTALLATION UNLOCK STEP 1 The elbow connection can be turned in the direction required after the manifold female pipe fitting has been slackened by using a wrench. To cooktop Then tighten the elbow-manifold female pipe fitting connection by using a wrench before proceeding with gas connection.
- Page 14 GAS CONNECTION SPECIFICATION Gasket Elbow Manifold female pipe fitting connection Cooktop manifold 1/2” G cylindrical (ISO 228-1) male Gasket 1/2” G cylindrical (ISO 228-1) female Extension Extension To cooktop pipe female pipe female pipe fitting pipe fitting Extension pipe Extension pipe male 1/2”...
-
Page 15: Flexible Connections
b) Any conversion required must be performed by your dealer or a qualified licensed plumber or gas service company. Please provide the service person with this manual before work is started on the cooktop. (Gas conversions are the responsibility of the dealer or end user.) c) This cooktop can be used with NATURAL or LP/PROPANE gas. -
Page 16: Leak Testing
4. Rigid Pipe Connections: If rigid pipe is used as a gas supply line, a combination of pipe fittings must be used to obtain an in-line connection to the cooktop. All strains must be removed from the supply and fuel lines so cooktop will be level and in line. •... -
Page 17: Injectors Table
OPERATIONS TO BE PERFORMED WHEN SUBSTITUTING THE INJECTORS Remove the gratings, the burner covers and the knobs; Using a wrench substitute the nozzle injectors “J” (fig. 5.6) with those most suitable for the kind of gas for which it is to be used. The burner are conceived in such a way so as not to require the regulation of the primary air. -
Page 18: Electrical Connection
electrical connection If codes permit and a separate ground wire is used, it is recommended that a WARNING qualified electrician determine that the ground path is adequate. Check with a qualified electrician if you are not sure whether the cooktop is prop- erly grounded. -
Page 19: Wiring Diagram Key
WIRING DIAGRAM Fig. 6.2 Wiring diagram key Ignition coil Ignition switches group Terminal block Igniter... - Page 20 The manufacturer cannot be held responsible for possible inaccuracies due to printing or transcription errors in the present booklet. The manufacturer reserves the right to make all modifications to its products deemed necessary for manufacture or commercial reasons at any moment and without prior notice, without jeopardising the essential functional and safety characteristics of the appliances.
