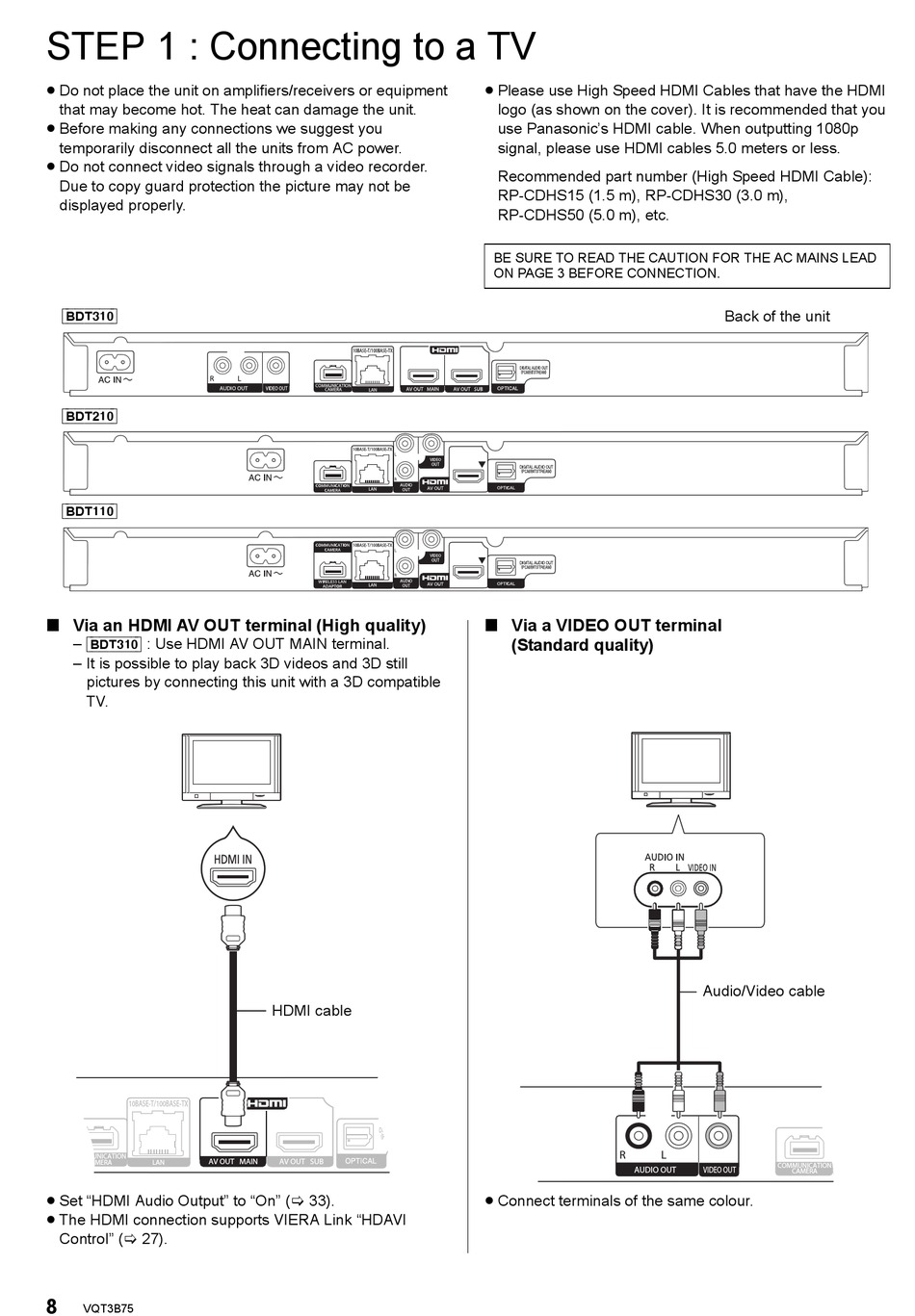

STEP 1 : Connecting to a TV

Do not place the unit on amplifiers/receivers or equipment
that may become hot. The heat can damage the unit.
Before making any connections we suggest you
temporarily disconnect all the units from AC power.
Do not connect video signals through a video recorder.
Due to copy guard protection the picture may not be
displayed properly.
[BDT310]
[BDT210]
[BDT110]
Via an HDMI AV OUT terminal (High quality)
– [BDT310] : Use HDMI AV OUT MAIN terminal.
– It is possible to play back 3D videos and 3D still
pictures by connecting this unit with a 3D compatible
TV.
HDMI IN
10BASE-T/100BASE-TX
COMMUNICATION
AV OUT MAIN
CAMERA LAN
Set "HDMI Audio Output" to "On" (] 33).
The HDMI connection supports VIERA Link "HDAVI
Control" (] 27).
8
VQT3B75
HDMI cable
AV OUT SUB
Connections and settings
Please use High Speed HDMI Cables that have the HDMI
logo (as shown on the cover). It is recommended that you
use Panasonic's HDMI cable. When outputting 1080p
signal, please use HDMI cables 5.0 meters or less.
Recommended part number (High Speed HDMI Cable):
RP-CDHS15 (1.5 m), RP-CDHS30 (3.0 m),
RP-CDHS50 (5.0 m), etc.
BE SURE TO READ THE CAUTION FOR THE AC MAINS LEAD
ON PAGE 3 BEFORE CONNECTION.
Via a VIDEO OUT terminal
(Standard quality)
R
AUDIO OUT
Connect terminals of the same colour.
Back of the unit
Audio/Video cable
L
COMMUNICATION
VIDEO OUT
CAMERA
