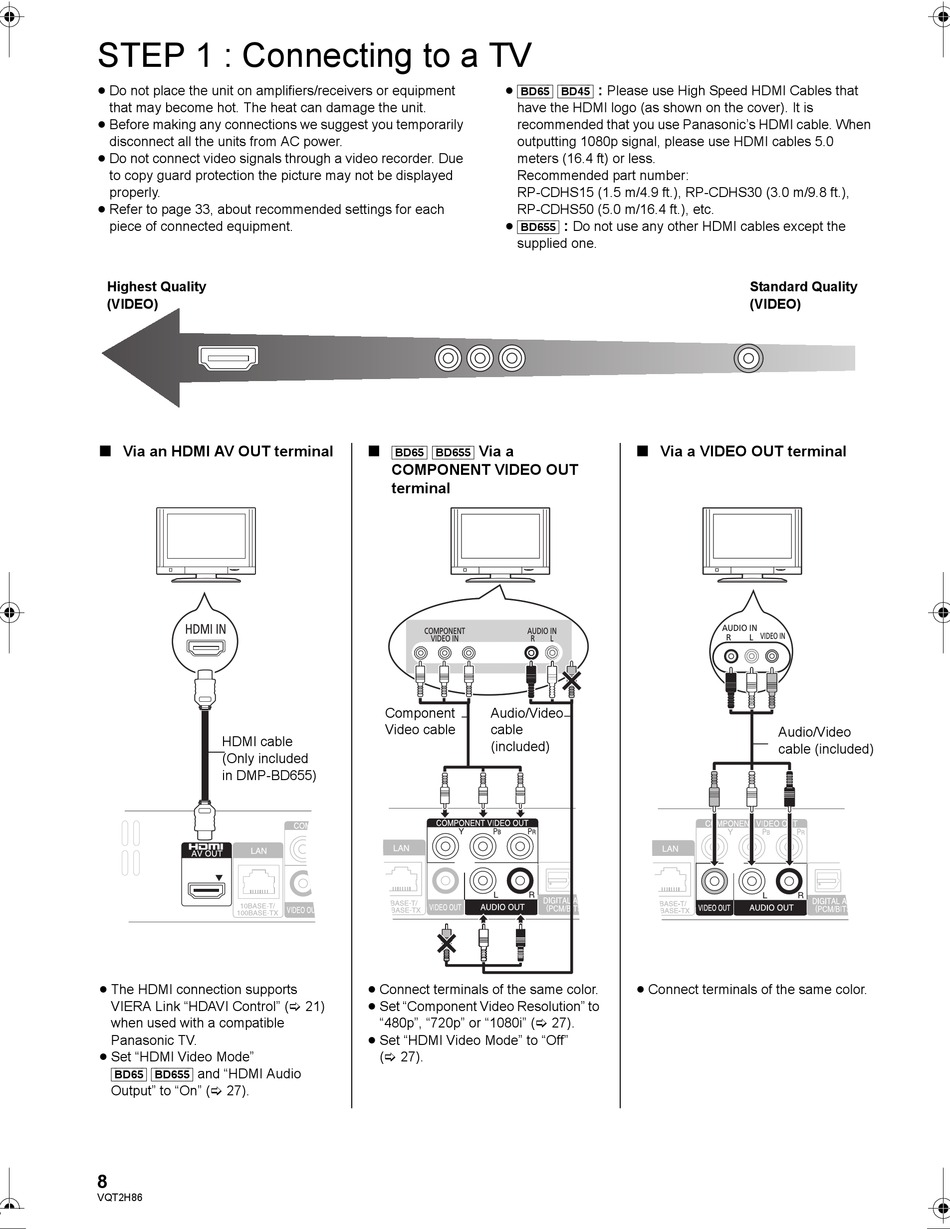

STEP 1 : Connecting to a TV

≥ Do not place the unit on amplifiers/receivers or equipment
that may become hot. The heat can damage the unit.
≥ Before making any connections we suggest you temporarily
disconnect all the units from AC power.
≥ Do not connect video signals through a video recorder. Due
to copy guard protection the picture may not be displayed
properly.
≥ Refer to page 33, about recommended settings for each
piece of connected equipment.
Highest Quality
(VIDEO)
∫ Via an HDMI AV OUT terminal
HDMI IN
HDMI cable
(Only included
in DMP-BD655)
≥ The HDMI connection supports
VIERA Link "HDAVI Control" (
when used with a compatible
Panasonic TV.
≥ Set "HDMI Video Mode"
[BD65] [BD655] and "HDMI Audio
Output" to "On" ( 27).
8
VQT2H86
∫
[BD65] [BD655]
COMPONENT VIDEO OUT
terminal
COMPONENT
VIDEO IN
Component
Video cable
≥ Connect terminals of the same color.
21) ≥ Set "Component Video Resolution" to
"480p", "720p" or "1080i" (
≥ Set "HDMI Video Mode" to "Off"
( 27).
:
Please use High Speed HDMI Cables that
≥ [BD65] [BD45]
have the HDMI logo (as shown on the cover). It is
recommended that you use Panasonic's HDMI cable. When
outputting 1080p signal, please use HDMI cables 5.0
meters (16.4 ft) or less.
Recommended part number:
RP-CDHS15 (1.5 m/4.9 ft.), RP-CDHS30 (3.0 m/9.8 ft.),
RP-CDHS50 (5.0 m/16.4 ft.), etc.
:
Do not use any other HDMI cables except the
≥ [BD655]
supplied one.
Via a ∫ Via a VIDEO OUT terminal
AUDIO IN
R L
Audio/Video
cable
(included)
≥ Connect terminals of the same color.
27).
Standard Quality
(VIDEO)
AUDIO IN
L VIDEO IN
R
Audio/Video
cable (included)
