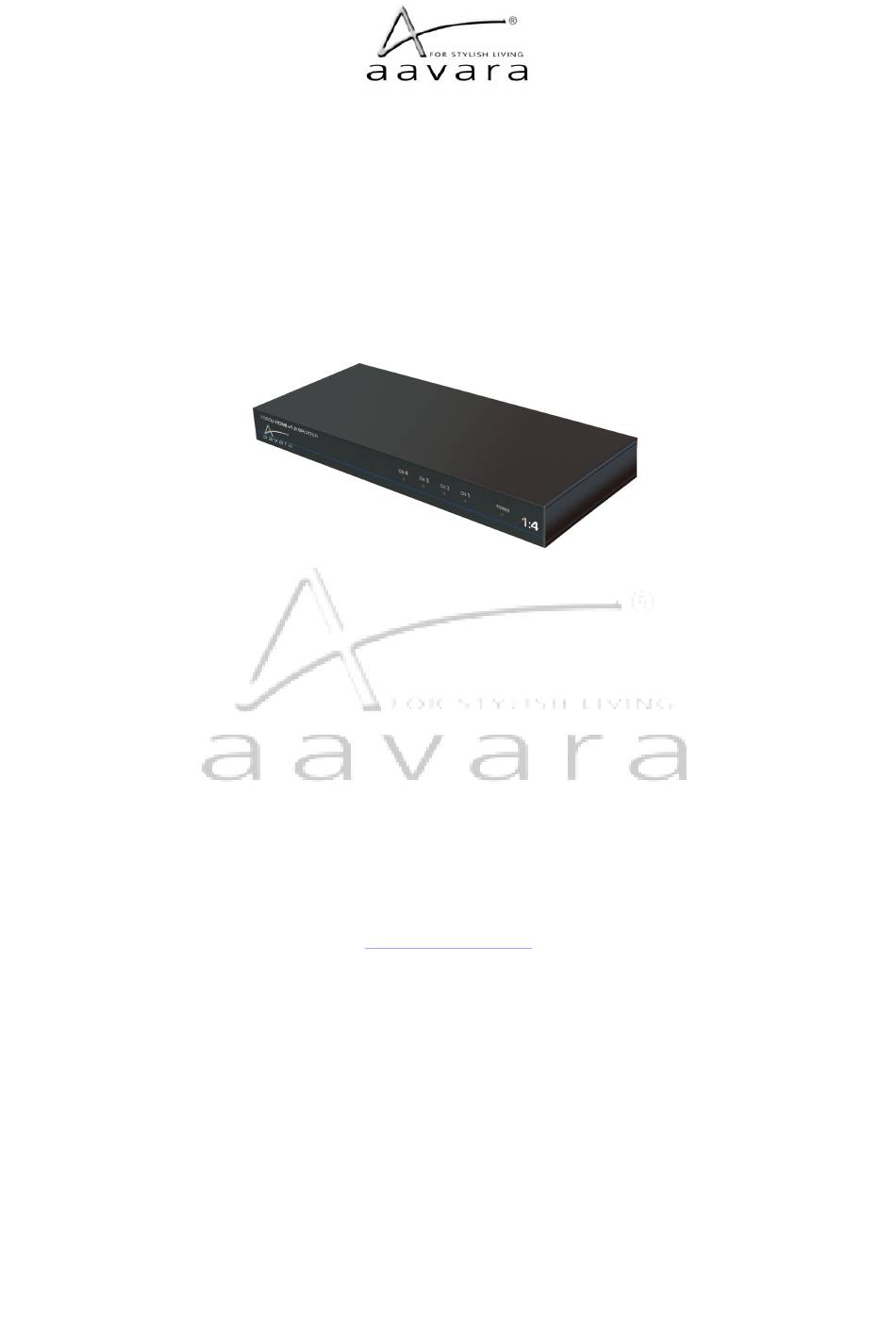

- Page 1 1080p HDMI 1.3b Splitter 1:4 Installation Guide WWW.AAVARA.COM AAVARA INNOVATION CORP. ALL RIGHTS RESERVED Rev 1.0...
- Page 2 TABLE OF CONTENTS Chapter 1 .............3 Introduction ..........3 1.1 Features ..........3 1.2 Technical Specifications......4 Chapter 2 .............5 Installation ...........5 Chapter 3 .............5 Troubleshooting...........5 Features Index….………………………………… 6...
- Page 3 Chapter 1 Introduction Aavara® PS124 is a HDMI v1.3b 1080p distribution hub that sends the same HDMI video output to four HDMI HDTV digital screens. It is a flexible solution to integrate multiple displays in signage, video wall or demo shelf.
- Page 4 1.2 Technical Specifications Model No. PS128 HDMI Source Input HDMI Single Link, TMDS. Port Display Device HDMI Single Link, TMDS. Output Port DC Power Jack x 1 HDMI Input Connector x 1 (F) HDMI Output Connector x 4 (G) USB port x 1 (E) Interface Video Bandwidth 225 MHz...
- Page 5 Dimension (mm) 245(W) x 107(D) x 27(H) mm Net Weight (g) 690 g Chapter 2 Installation 1. Plug 5V wall-mounted power supply into the wall outlet. 2. Plug 5V power supply into the HDMI Splitter’s power DC jack. 3. Connect the HDMI cable from the HDMI device into the HDMI Splitter Input. 4.
- Page 6 Features Index: • CEC...
- Page 8 • F/W Upgradeable: ALL RIGHTS RESERVED. 2008 AAVARA INNOVATION CORP.
