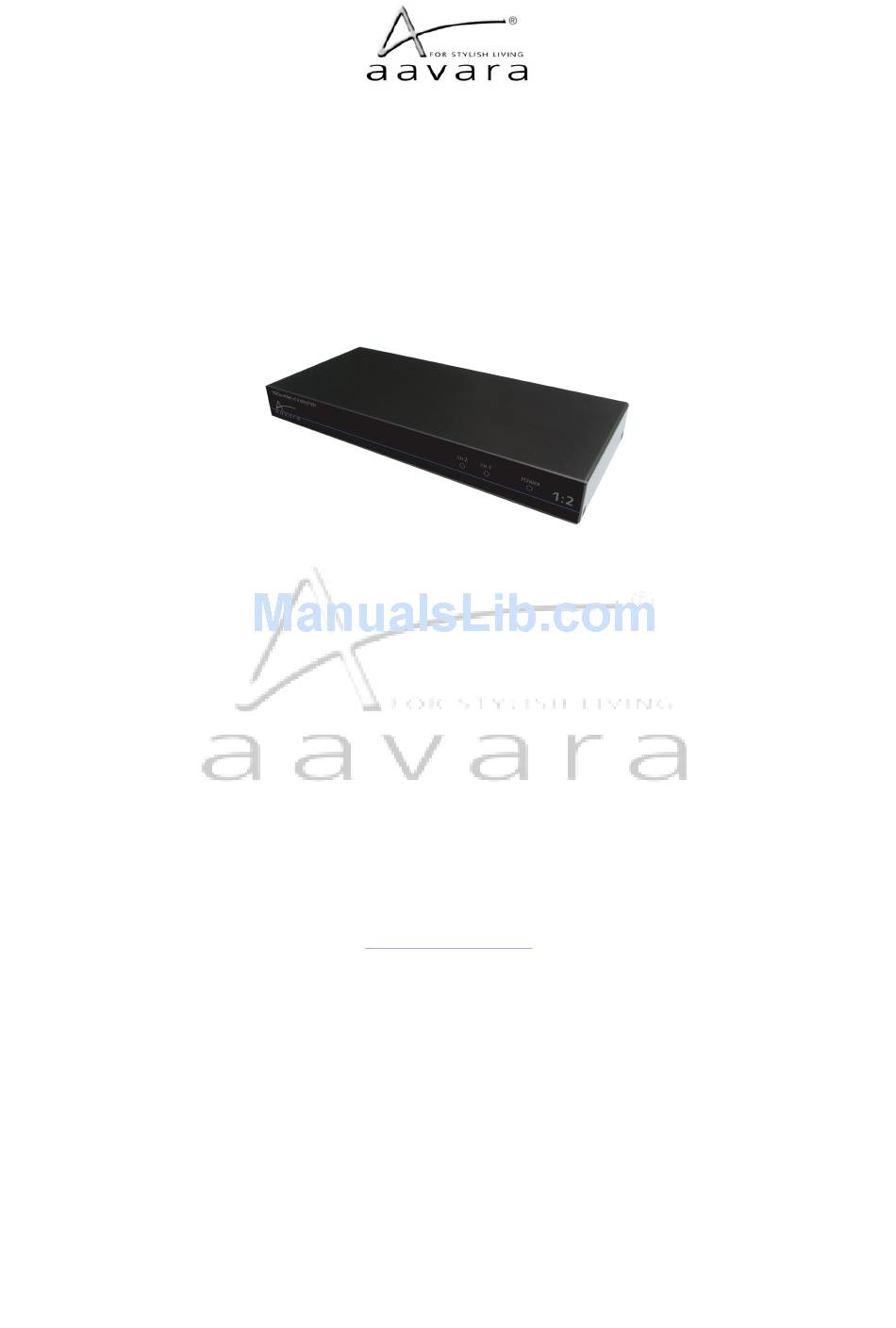

- Page 1 1080p HDMI 1.3b Splitter 1:2 Installation Guide WWW.AAVARA.COM AAVARA INNOVATION CORP. ALL RIGHTS RESERVED Rev 1.0...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Chapter 1 .............3 Introduction ..........3 1.1 Features ..........3 1.2 Technical Specifications......4 Chapter 2 .............5 Installation ...........5 Chapter 3 .............5 Troubleshooting...........5 Features Index….………………………………… 6... -
Page 3: Chapter 1
Chapter 1 Introduction Aavara® PS122 is a HDMI v1.3b 1080p distribution hub that sends the same HDMI video input to two HDMI HDTV digital screens. It is a flexible solution to integrate multiple displays in TV/projector Home Theater, signage or demo shelf. -
Page 4: Technical Specifications
1.2 Technical Specifications Model No. PS122 HDMI Source Input HDMI Single Link, TMDS. Port Display Device HDMI Single Link, TMDS. Output Port DC Power Jack x 1 HDMI Input Connector x 1 (F) HDMI Output Connector x 2 (G) USB port x 1 (E) -
Page 5: Chapter 2
Enclosure Metal Dimension (mm) 245(W) x 107(D) x 27(H) mm Net Weight (g) 680 g Chapter 2 Installation 1. Plug 5V wall-mounted power supply into the wall outlet. 2. Plug 5V power supply into the HDMI Splitter’s power DC jack. 3. -
Page 6: Features Index
Features Index: • CEC... - Page 8 • F/W Upgradeable: ALL RIGHTS RESERVED. 2008 AAVARA INNOVATION CORP.
