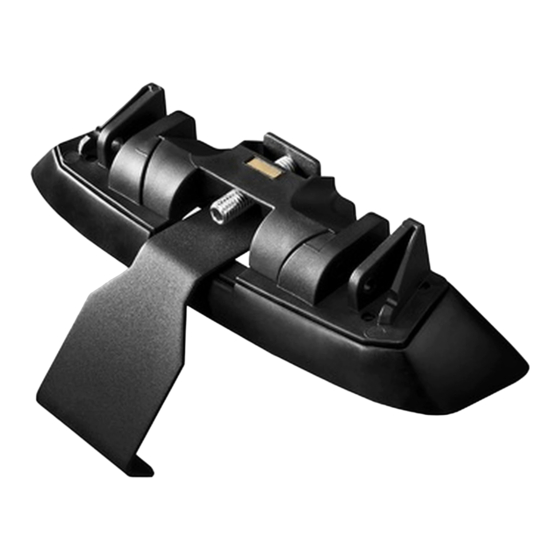

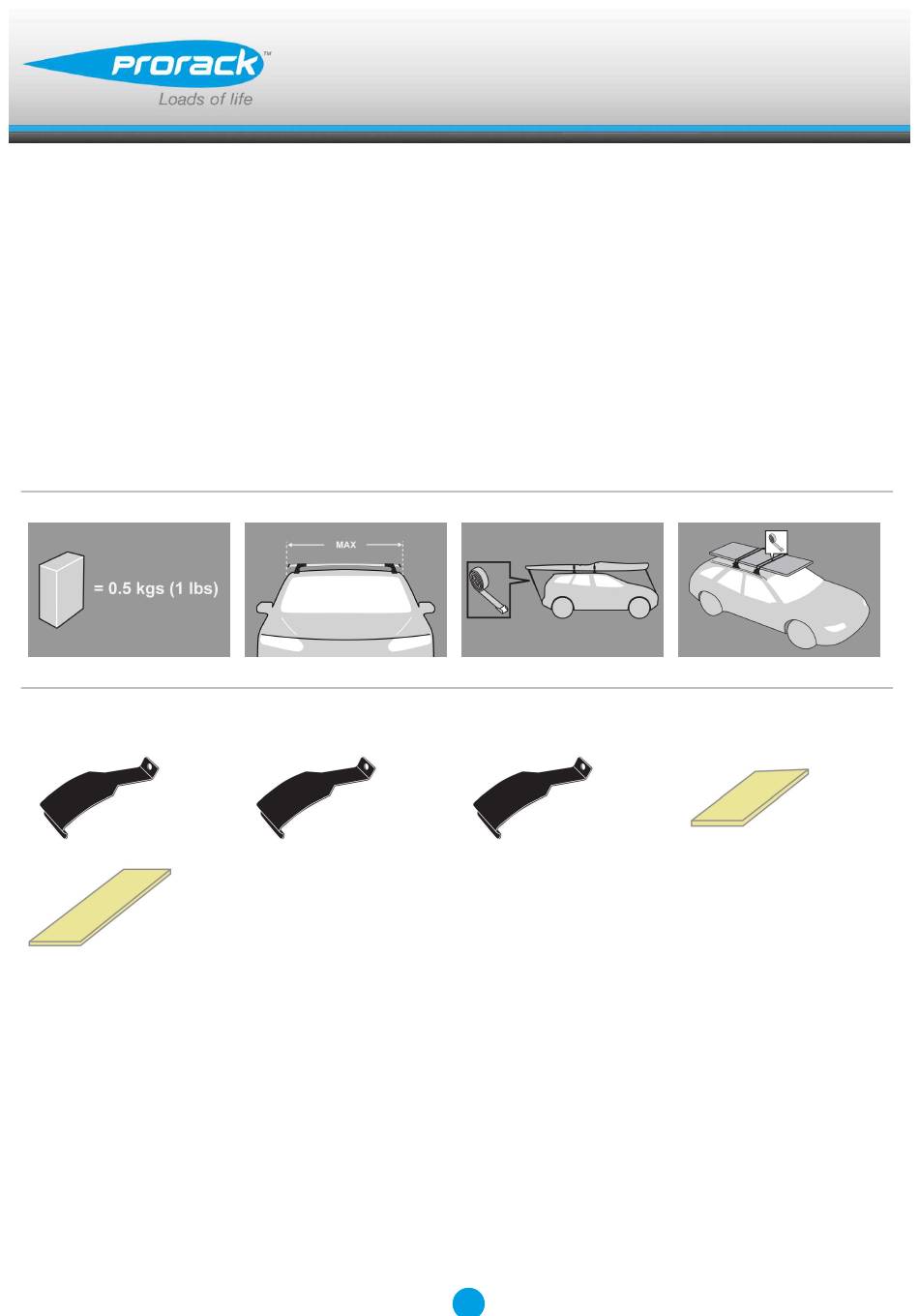

- Page 1 K464 Fitting Kit Fitting Instructions for Basic Carrier Revision No: 4C...
- Page 2 Fitting Kit K464 MAX kgs (lbs) Honda City , 4dr Sedan 08-14 50 kgs (110 lbs) 50 kgs (110 lbs) City , 4dr Sedan 09-14 50 kgs (110 lbs) 50 kgs (110 lbs)
-
Page 3: First Time Installation
Fitting Kit K464 First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 4 Fitting Kit K464 Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is...
- Page 5 Fitting Kit K464 Remove locking screw. Letters refer to the part numbers stamped on clamps. Clamp Part Number: A = 623A B = 624A C = 625A Attach clamp to each leg. NOTE; clamps may have labels showing their positions on...
- Page 6 Fitting Kit K464 Refit locking screw so that it goes through the hole in the clamp. Do not begin to tighten the locking screw. Fit rubber pad (supplied with crossbar) to foot. Make sure the pad fits into the holes...
- Page 7 Fitting Kit K464 Fitment Place crossbar on vehicle. Minimum recommended spacing between the bars is 700mm (27 1/2") (unless otherwise stated). Please check the rear of this manual for information relating specifically to your vehicle. Adjust the legs on the crossbar so that they...
- Page 8 Fitting Kit K464 Tighten locking screw on both legs evenly. Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers...
- Page 9 Fitting Kit K464 CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 10: Maintenance
Fitting Kit K464 Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 11 Fitting Kit K464 Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
- Page 12 Fitting Kit K464 City, 4dr Sedan 08-14 (AU) -230mm 420mm 835mm 785mm -9 -1/16ths" 16 9/16ths" 32 7/8ths" 30 7/8ths" City, 4dr Sedan 09-14 (NZ) -230mm 420mm 835mm 785mm -9 -1/16ths" 16 9/16ths" 32 7/8ths" 30 7/8ths"...
-
