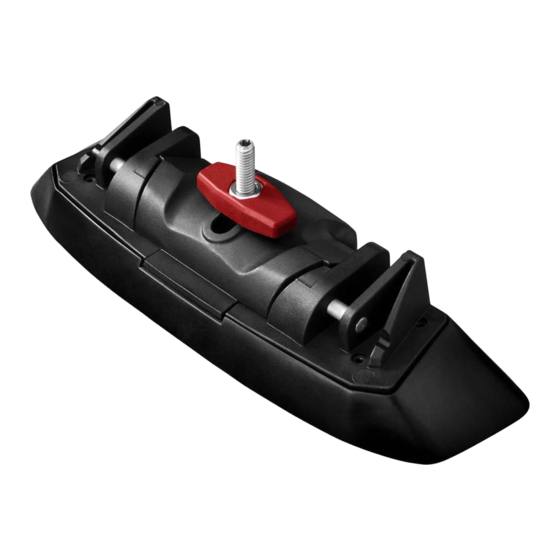

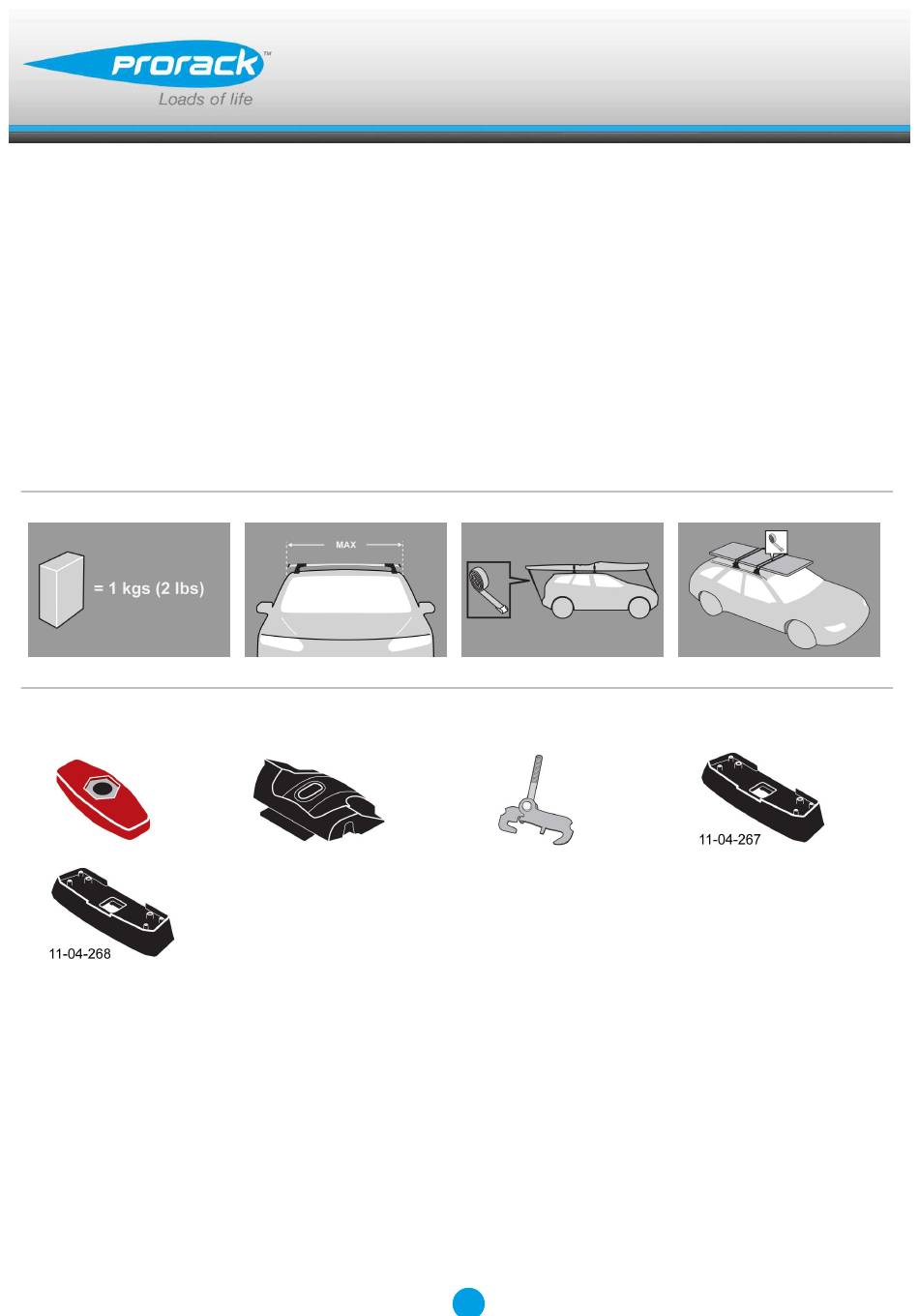

- Page 1 K461 Fitting Kit Fitting Instructions for Basic Carrier Revision No: 4C...
- Page 2 Fitting Kit K461 MAX kgs (lbs) Opel Vectra , 4dr Sedan 02-08 75 kgs (165 lbs) 75 kgs (165 lbs) Vectra , 4dr Sedan 03-08 75 kgs (165 lbs) 75 kgs (165 lbs) Vectra , 4dr Sedan Mar 03-08 75 kgs (165 lbs)
-
Page 3: First Time Installation
Fitting Kit K461 First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 4 Fitting Kit K461 Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment. Ensure each end of the crossbar is adjusted equally. Set bars to length (refer to the crossbar instructions for crossbar adjustment).
- Page 5 Fitting Kit K461 Tighten adjusting screw to 5 Nm (3.7 ft lb). Remove plastic clamp block by gripping bar leg with fingers and push firmly with thumbs until clamp block drops out behind leg. Select plastic internal block (from fitting kit) and insert into foot.
- Page 6 Fitting Kit K461 Fitment Open or remove fixed-point covers. Locate fixed clamping block A Hook small claw into rear of the clamping block Hook large claw into front of the clamping block...
- Page 7 Fitting Kit K461 Refer to the underside of the pad for the part number. Pad Part Number: A = 11-04-267 B = 11-04-268 Letters refer to the pad part numbers and position. Fit pad carefully over fixed point and clamp screw.
- Page 8 Fitting Kit K461 Ensure the pads are in the correct position and the clamp threads pass through the crossbar feet. Repeat for all legs. Tighten the red plastic knob. The side with the nut showing should be facing up. Ensure the red plastic knob is in the position shown when fully tightened.
- Page 9 Fitting Kit K461 Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 10: Maintenance
Fitting Kit K461 Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 11 Fitting Kit K461 Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
- Page 12 Fitting Kit K461 Vectra, 4dr Sedan 02-08 (EU) 270mm 430mm 890mm 860mm 10 5/8ths" 16 15/16ths" 35 1/16ths" 33 7/8ths" Vectra, 4dr Sedan 02-08 (EU) 270mm 430mm 890mm 860mm 10 5/8ths" 16 15/16ths" 35 1/16ths" 33 7/8ths" Vectra, 4dr Sedan 03-08 (ZA)
-
