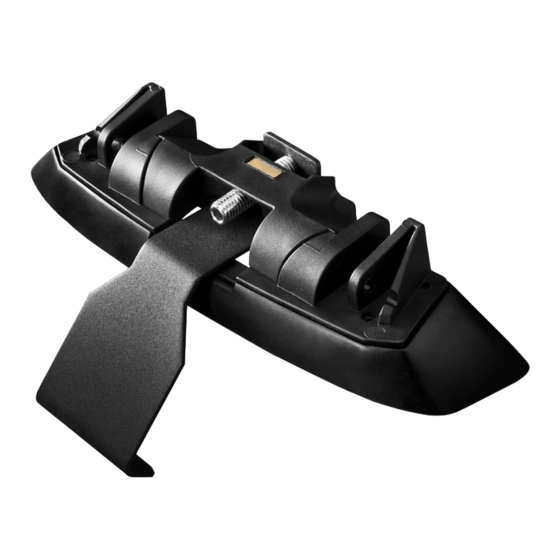

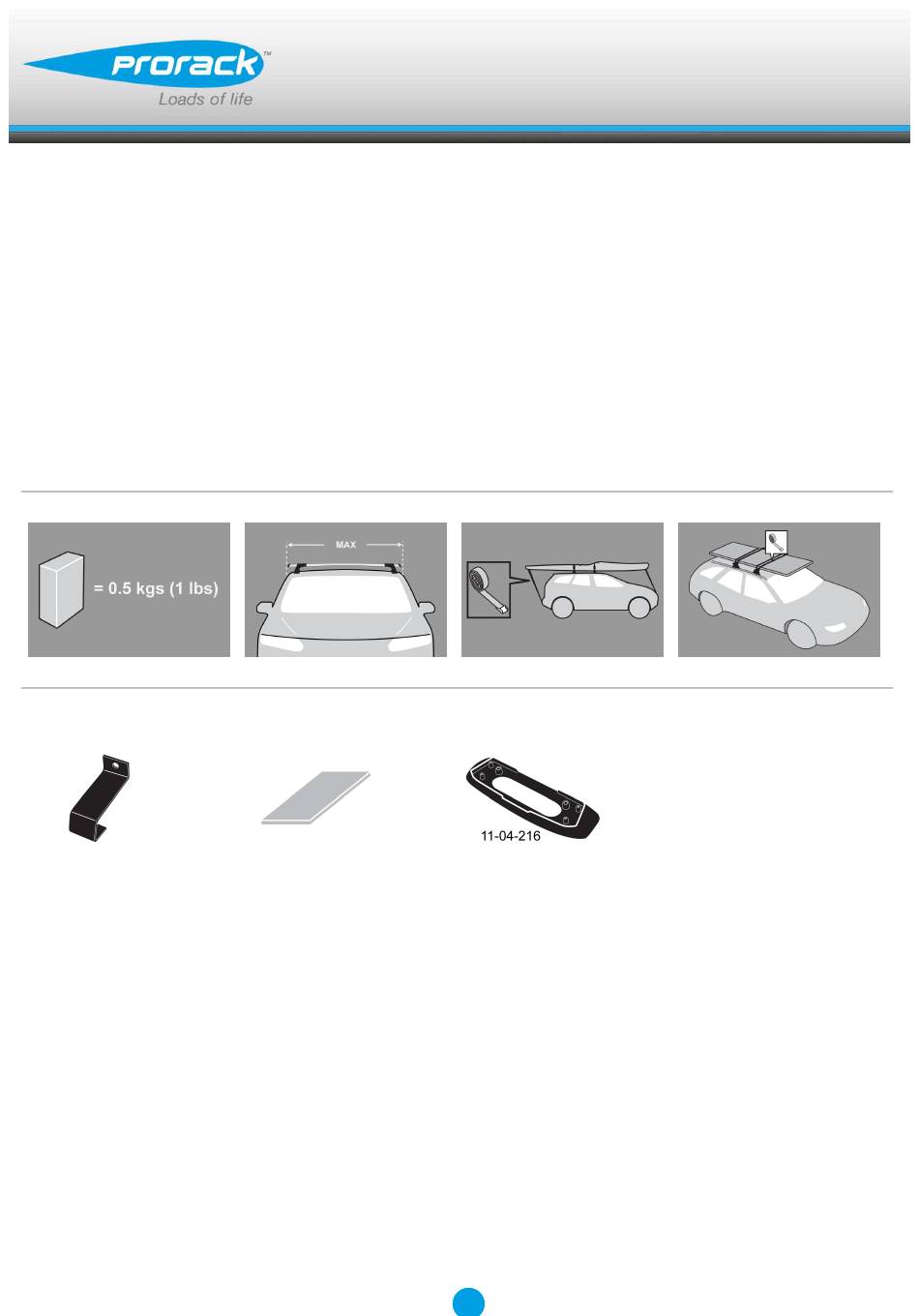

- Page 1 K417 Fitting Kit Fitting Instructions for Basic Carrier Revision No: 5E...
- Page 2 Fitting Kit K417 MAX kgs (lbs) Fiat Punto, 5dr Hatch 99-03 50 kgs (110 lbs) 50 kgs (110 lbs) Punto, 5dr Hatch 99-03 50 kgs (110 lbs) 50 kgs (110 lbs) Punto, 5dr Hatch 99-03 50 kgs (110 lbs) 50 kgs (110 lbs)
- Page 3 Fitting Kit K417 Punto, 5dr Hatch 99-03 (AU) -280mm 520mm 775mm 760mm -11" 20 1/2ths" 30 1/2ths" 29 15/16ths" Punto, 5dr Hatch 99-03 (EU) -280mm 520mm 775mm 760mm -11" 20 1/2ths" 30 1/2ths" 29 15/16ths" Punto, 5dr Hatch 99-03 (ZA)
-
Page 4: First Time Installation
Fitting Kit K417 First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 5 Fitting Kit K417 Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is...
- Page 6 Fitting Kit K417 Remove locking screw. Cut grey protective strip in two equal lengths. Apply protective strip as shown. Trim if required. Attach clamp to each leg. NOTE; clamps may have labels showing their positions on the vehicle (For example; "Front Right").
- Page 7 Fitting Kit K417 Refit locking screw so that it goes through the hole in the clamp. Do not begin to tighten the locking screw. Fit rubber pads (supplied with fitting kit) to foot. Make sure the pad fits into the holes...
- Page 8 Fitting Kit K417 Fitment Pull back rubber seal to expose fixed points on vehicle body. Locate vehicle's fixed points. Attaches to factory-fitted mounting points located between rubber seals on door frame Place crossbar on vehicle. Minimum recommended spacing between the bars is 700mm (27 1/2") (unless otherwise stated).
- Page 9 Fitting Kit K417 Insert clamp into the mounting point. When viewed from the top, clamp should be lined up with the two lugs on both sides. Repeat for all four positions.
- Page 10 Fitting Kit K417 Please check the front of this manual for information relating specifically to your vehicle. Tighten locking screw on both legs evenly. Check crossbar is securely attached to the vehicle.
- Page 11 Fitting Kit K417 Please take care when closing the doors as contact can be made with the clamp if it is not installed correctly. Close the door slowly upon first inspection. Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars.
-
Page 12: Maintenance
Fitting Kit K417 Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 13 Fitting Kit K417 Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
-
Page 14: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Prorack dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Prorack dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 15 Yakima or the Prorack dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Prorack dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
