  • Page 1 User Manual UBTCC60KC Built-in ceramic hob...
  • Page 3 Warning 1） The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction. children being supervised not to play with the appliance.
  • Page 4 Warning use of the appliance in a safe way and understand the hazards involved. children shall not play with the appliance. cleaning and user maintenance shall not be made by children without supervision. 9） WARNING: The appliance and its accessible parts become hot during use.

  • Page 5: Table Of Contents

    Contents Environmental note Important safety information 5 – 7 Specifications 8 – 9 Product and aperture dimensions Product specifications Electrical details Ceramic cooktop surface layout Using the ceramic cooktop 10 - 12 Before first use Touch controls Switching on a cooking zone and setting a power level Residual heat indicator Cooktop guidelines 11-12...

  • Page 6: Environmental Note

    Environmental note o The packaging materials that Iberna uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment.

  • Page 7: Important Safety Information

    Important safety information Your safety is of the utmost importance to Iberna. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact...
  • Page 8 o Repairs may only be carried out by authorised service engineers or their authorised service agents. Child Safety o The manufacturer strongly recommends that babies and young children are prevented from being near to the appliance and not allowed to touch the appliance at any time. During and after use, all surfaces will become hot.
  • Page 9 Make sure that all of the cooking zones are switched off after use. Cleaning o Cleaning of the cooktop should be carried out on a regular basis. o IMPORTANT: Before attempting to clean the appliance, it should be disconnected from the mains and allowed to cool. o Great care should be taken whilst using this appliance and when following the cleaning procedure.

  • Page 10: Specifications

    Specifications Product dimensions Aperture dimensions Depth: 520 mm Depth: 490 mm Width: 590 mm Width: 560 mm Height: 50 mm Product specifications: o 2 x 1.80 kW radiant zones (Ø 190 mm) o 2 x 1.20 kW radiant zones (Ø 155 mm) o Knob control operation o 4 individual residual heat indicators o Frameless...

  • Page 11: Electrical Details

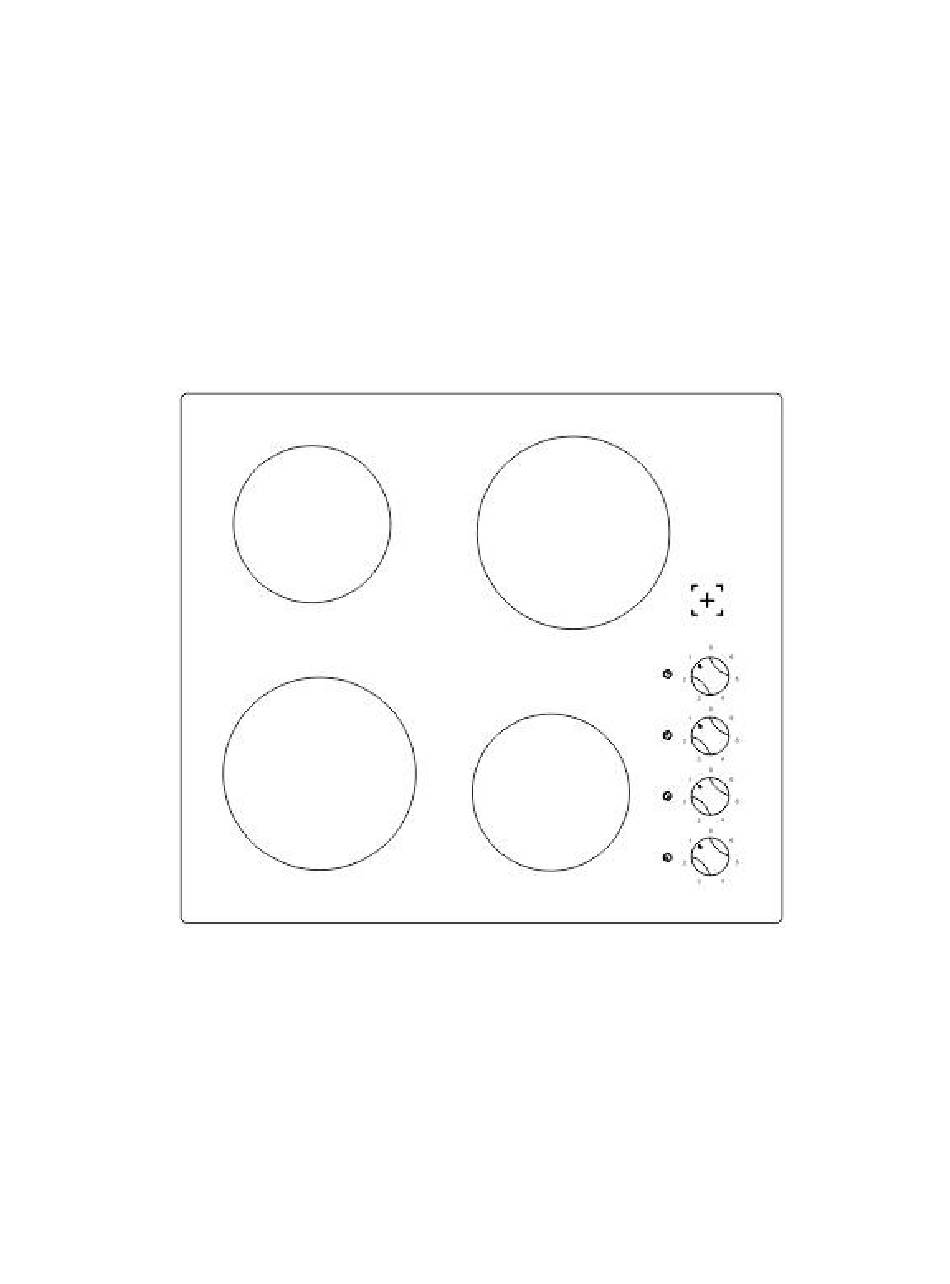

    Electrical details Rated Voltage: 220-240V~/380-415V 2N~ 50/60 Hz Supply Connection: Max Rated Inputs: 6.0 kW Mains Supply Lead: 5 core x 1.5 mm² Ceramic cooktop surface layout 1.20 kW zone (Ø 155 mm) 1.80 kW zone (Ø 190 mm) 1.20 kW zone (Ø 155 mm) 1.80 kW zone (Ø...

  • Page 12: Using The Ceramic Cooktop

    Using the ceramic cooktop Before first use IMPORTANT: You should clean the ceramic cooktop surface (see “Cleaning and maintenance” section). o You should switch on one cooking zone at a time, for 5 minutes at the maximum setting. This will help to eliminate any new smell that exists and evaporate any humidity that has formed on the heating elements during transit.

  • Page 13: Residual Heat Indicator

    the higher numbers (4-6) indicate the hotter cooking zone temperatures. o When you have finished cooking, make sure that you turn the control knob to the OFF position (“0”). Residual heat indicator o The residual heat indicator is located above the control knobs. o After a zone is switched off, the corresponding cooking zone residual heat indicator will illuminate.

  • Page 14: Cleaning And Maintenance

    o The best thickness for the bottom of the pans is 2 – 3 mm of enamelled steel and 4 – 6 mm for stainless steel with sandwich type bottoms. o If these rules are not followed, then there will be a great loss of heat and energy.

  • Page 15: After Each Use

    After each use o Wipe the appliance over with a damp cloth. o Dry the appliance by rubbing the surface with a clean cloth. Cleaning table Type of deposit Remove Remove What should I Immediately? when the use to remove appliance the deposit? has cooled...

  • Page 16: Installation

    You should follow the instructions given by the manufacturer of the specialist ceramic cooktop cleaner. You should ensure that it is suitable for use on your appliance. Installation The installation must be carried out by a suitably qualified person, in accordance with the current version of the following.

  • Page 17: Installing The Appliance

    Installing the appliance o Cut a hole in the worktop that corresponds with the relevant drawing shown above.
  • Page 18 o IMPORTANT: You must observe the ventilation requirements shown in the drawing above. o IMPORTANT: There are ventilation holes around the outside of the cooktop. YOU MUST ensure that these holes are not blocked by the work top, when you put the cooktop into position (see drawing opposite).

  • Page 19: Electrical Connection

    cooktop. Slightly tighten a screw (B) through the clamp (A) so that the clamp is attached to the cooktop, but so that you can still adjust the position of it. o On the underneath of the cooktop, adjust the clamps into a position that is suitable for your worktop.
  • Page 20 o The mains terminal block is located on the underside of the cooktop and the terminals are accessible by removing the terminal block cover. This is done by depressing the front of the cover and releasing it from the securing clips. o The cable connections must be in accordance with the diagram located on the bottom of the cooktop (see above).

  • Page 21: Replacing The Mains Supply Cable

    Replacing the mains supply cable If the mains supply cable is damaged, then it must be replaced by an appropriate replacement which can be obtained via the manufacturer or its service agents, in order to avoid hazard. The mains supply cable should be replaced in accordance with the following instructions: o Switch the appliance off at the socket.

  • Page 22: My Appliance Isn't Working Correctly

    My appliance isn’t working correctly o The cooking zones are not functioning or will not switch on. * Check that the mains electrical supply to the appliance is correct and working. Check the mains fuse. o The residual heat indicator has not come on after I have switched a cooking zone off.
  • Page 23 IMPORTANT: your appliance appears operating correctly, then you should disconnect it from your mains supply and then contact Customer Care. DO NOT ATTEMPT TO REPAIR THE APPLIANCE YOURSELF. Please note that if a service technician is asked to attend whilst the product is under guarantee and finds that the problem is not the result of an appliance fault, then you may be liable for the cost of the call out charge.
