Induction Hob
Instruction Manual / Installation Manual
MODEL:
UBIND60BV
UBIND60DBV
UBIND60ECOBV
UBIND60ECOD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UBIND60BV and is the answer not in the manual?

Questions and answers

bob purdue
January 19, 2025

the hob does not start , it displays power level 5 but even with the right pan that we always use it switches off as if it is not the right pan , this is the same on all rings . we have tried to remove the power source and replace it but remains the same

Subscribe to Our Youtube Channel

Summary of Contents for Culina UBIND60BV

  • Page 1 Induction Hob Instruction Manual / Installation Manual MODEL: UBIND60BV UBIND60DBV UBIND60ECOBV UBIND60ECOD...
  • Page 2: Safety Warnings

    SAFETY WARNINGS PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE. Installation Electrical Shock Hazard • Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it. • Connection to a good earth wiring system is essential and mandatory.
  • Page 3 • This appliance is to be properly installed and earthed only by a suitably qualified person. • This appliance should be connected to a circuit which incorporates an isolating switch providing full disconnection from the power supply. • WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance.
  • Page 4 • During use, accessible parts of this appliance will become hot enough to cause burns. • Do not let your body, clothing or any item other than suitable cookware contact the ceramic glass until the surface is cool. • Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get •...
  • Page 5 • Do not store items of interest to children in cabinets above the appliance. Children climbing on the cooktop could be seriously injured. • Do not leave children alone or unattended in the area where the appliance is in use. •...
  • Page 6 • Care should be taken to avoid touching heating elements. • Children less than 8 years of age shall be kept away unless continuously supervised. • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the...

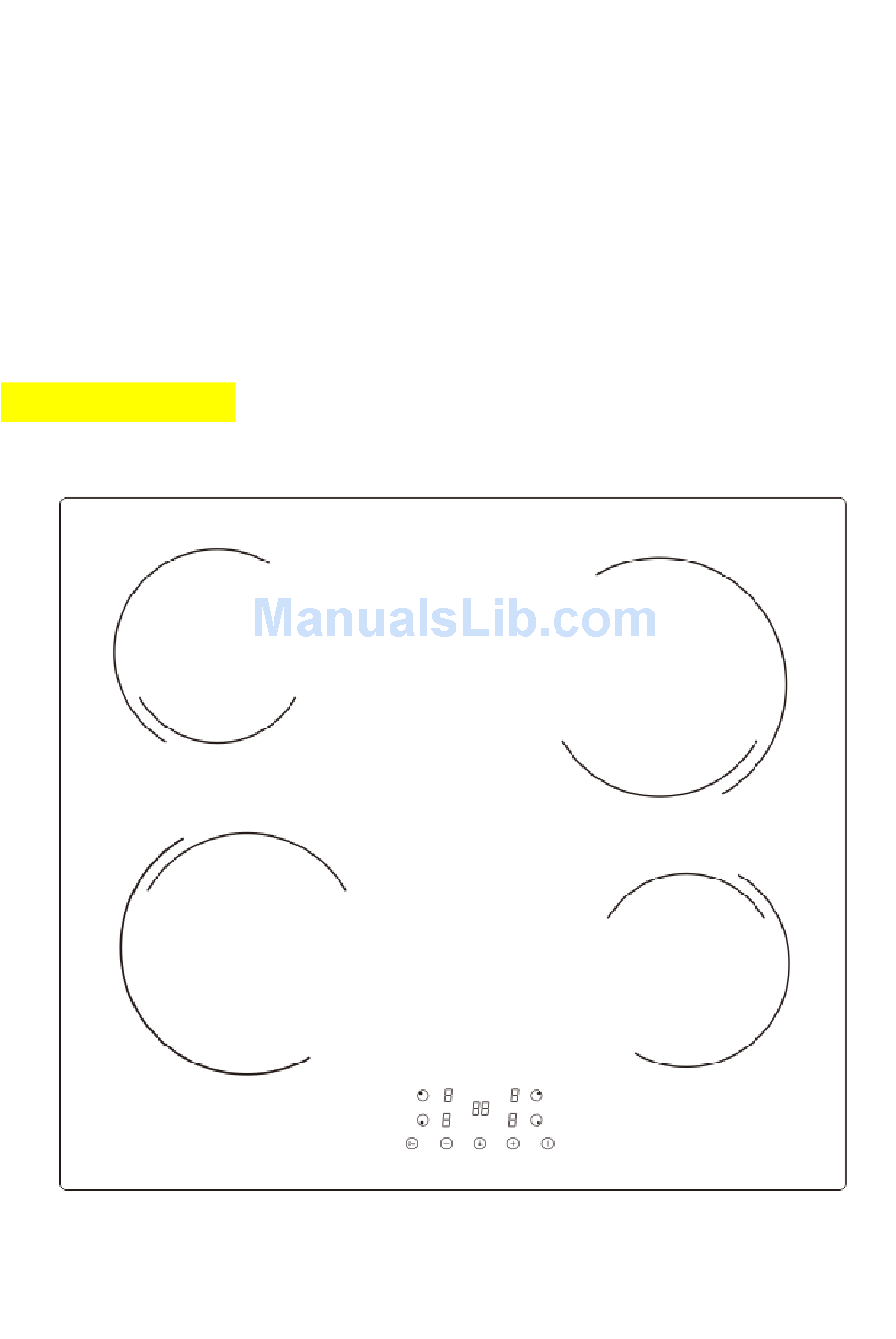

  • Page 7: Product Overview

    1. max. 1800/2200 W zone 2. max. 1400 W zone 3. max. 1800 W zone 4. max. 1400 W zone 5. Control panel UBIND60BV 1. max. 1800/2200 W zone 2. max. 1400 W zone 3. max. 1800 W zone 4. max. 1400 W zone 5.
  • Page 8 1. max. 1800/2100 W zone 2. max. 1200/1500 W zone 3. max. 1800/2100 W zone 4. max. 1200/1500 W zone 5. Control panel UBIND60ECOD...
  • Page 9: The Control Panel

    The Control Panel UBIND60BV UBIND60DBV UBIND60ECOBV UBIND60ECOD 1. ON/OFF switch 4. Child lock 2. Select power level 5. Select heating zone 3. Setting the timer 6. Boost control...
  • Page 10: Product Information

    Product Information The ceramic/induction hob can meet different kinds of cuisine demands because of resistance wire heating, micro-computerized control and multi-power selection, really the optimal choice for modern families. The hob centers on customers and adopts personalized design. The hob has safe and reliable performances, making your life comfortable and enabling to fully enjoy the pleasure from life.
  • Page 11: Choosing The Right Cookware

    Choosing the right Cookware Only use cookware with a base suitable for induction cooking. Look for the • induction symbol on the packaging or on the bottom of the pan. • You can check whether your cookware is suitable by carrying out a magnet test.
  • Page 12: Using Your Hob

    Using your Hob To start cooking After power on, the buzzer beeps once, all the indicators light up for 1 second then • go out, indicating that the hob has entered the state of standby mode. 1. Touch the ON/OFF switch.
  • Page 13: Locking The Controls

    when the surface has cooled down to a safe temperature. It can also be used as an energy saving function if you want to heat further pans, use the hotplate that is still hot. Using Boost function (for induction hob only) Activate the boost function 1.
  • Page 14: Residual Heat Warning

    To unlock the controls 1. Make sure the hob is turned on. 2. Touch and hold the keylock control for 3 seconds. 、 、 3. You can now start using your hob. When the hob is in lock mode, all the controls are disabled except the ON/OFF, you can always turn the hob off with the ON/OFF control in an emergency, but you shall unlock the hob first in the next operation.
  • Page 15 2. Touch timer key, “10” will show in the timer display and “0” will blink. 3. Set the time by touching the”-”” +”or touching the “slider” control of the timer (e.g. 5) 4. Touch timer control again, then “1” will flash. 5.
  • Page 16 4. Touch timer control again, the “1” will flash. 5. set the time by touching the “-”“+” or “slider” control (e.g.9), now the timer you set is 95 minutes. 6. When the time is set, it will begin to count down immediately. The display will show the remaining time.
  • Page 17: Cooking Guidelines

    Note: Touch the heating zone selection control, the corresponding timer will be shown in the timer indicator. Cancelled the timer 1. Touching the heating zone selection control that you want to cancel the timer. 2. Touching the timer control, the indicator will flash. 3.
  • Page 18: Heat Settings

    1. Stand the meat at room temperature for about 20 minutes before cooking. 2. Heat up a heavy-based frying pan. 3. Brush both sides of the steak with oil. Drizzle a small amount of oil into the hot pan and then lower the meat onto the hot pan. 4.
  • Page 19: Care And Cleaning

    Care and Cleaning What? How? Important! Everyday soiling on 1. Switch the power to the cooktop off. • When the power to the cooktop is glass (fingerprints, 2. Apply a cooktop cleaner while the switched off, there will be no ‘hot marks, stains left by glass is still warm (but not hot!) surface’...
  • Page 20: Hints And Tips

    Hints and Tips Problem Possible causes What to do The cooktop cannot No power. Make sure the cooktop is connected to Be turned on. the power supply and that it is switched on. Check whether there is a power outage in your home or area. If you’ve checked everything and the problem persists, call a qualified technician.
  • Page 21: Failure Display And Inspection

    The above are the judgment and inspection of common failures. Please do not disassemble the unit by yourself to avoid any dangers and damages to the induction hob. Technical Specification Induction Hob UBIND60BV UBIND60DBV Cooking Zones 4 Zones Supply Voltage...
  • Page 22: Selection Of Installation Equipment

    Warning: The work surface material must use the impregnated wood or other insulation material. L(mm) W(mm) H(mm) D(mm) A(mm) B(mm) X(mm) UBIND60BV 50 mini UBIND60DBV 50 mini 50 mini UBIND60ECOBV 50 mini UBIND60ECOD Under any circumstances, make sure the hob is well ventilated and the air inlet and outlet are not blocked.
  • Page 23 A(mm) B(mm) C(mm) 50 mini 20 mini Air intake Air exit 5mm Before you install the hob, make sure that • the work surface is square and level, and no structural members interfere with space requirements. the work surface is made of a heat-resistant material. •...
  • Page 24: Before Locating The Fixing Brackets

    is installed below the base of the hob. • The isolating switch is easily accessible by the customer. Before locating the fixing brackets The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the controls protruding from the hob. locating the fixing brackets The unit should be placed on a stable, smooth surface (use the packaging).
  • Page 25: Connecting The Hob To The Mains Power Supply

     To avoid any damage, the sandwich layer and adhesive must be resistant to heat.  A steam cleaner is not to be used.  This ceramic can be connected only to a supply with system impedance no more than 0.427 ohm. In case necessary, please consult your supply authority for system impedance information.
  • Page 28 For more detailed information about treatment, recovery and recycling of this for special treatment is product, please contact your local city office, your household waste disposal necessary. service or the shop where you purchased the product. UBIND60BV&UBIND60DBV&UBIND60ECOBV &UBIND60ECOD User Manual v.20170705...
