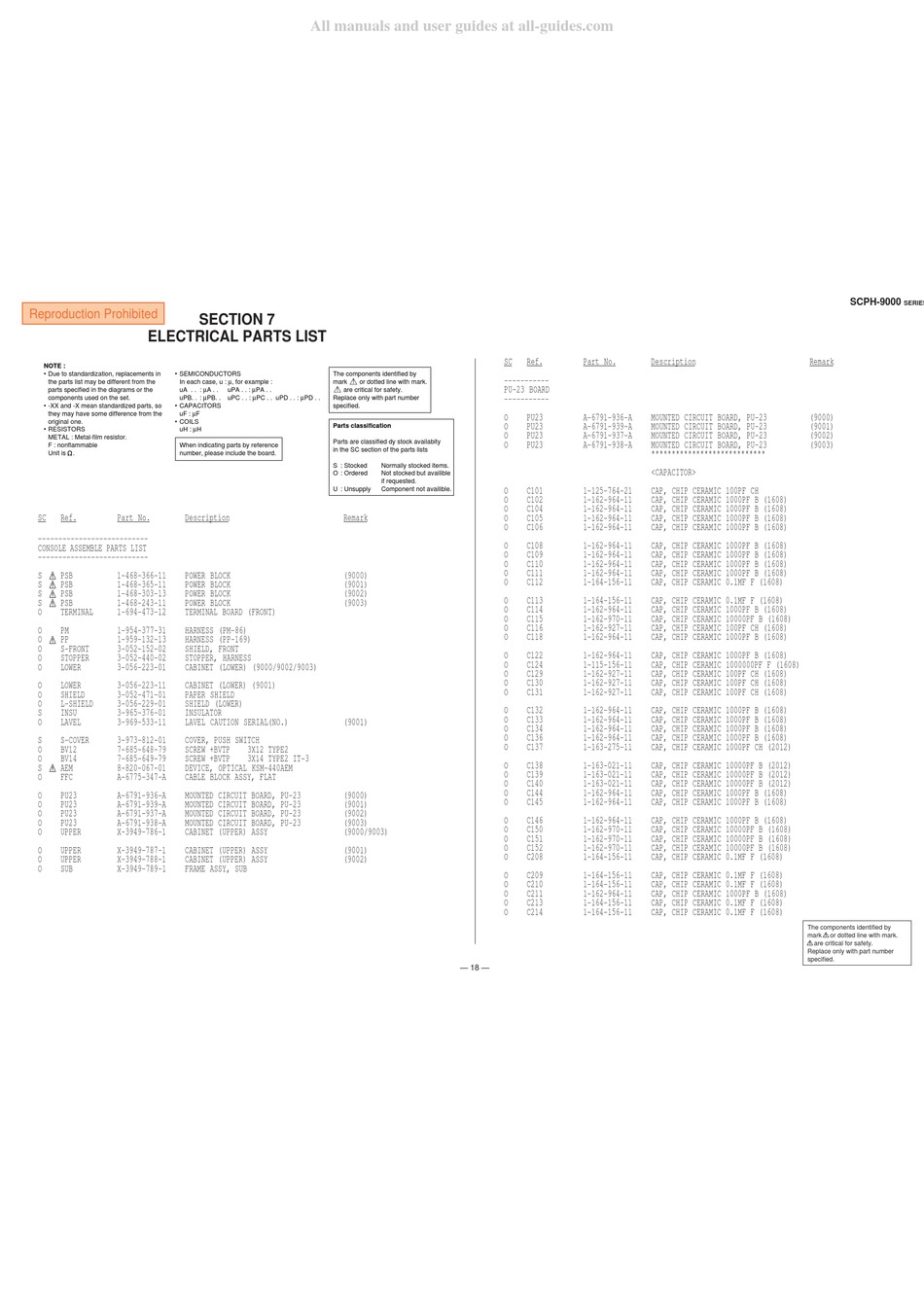

SECTION 7

ELECTRICAL PARTS LIST

SC Ref. Part No. Description
NOTE :
• Due to standardization, replacements in • SEMICONDUCTORS
In each case, u : µ, for example :
the parts list may be different from the
: µA . .
parts specified in the diagrams or the uA . .
: µPB. .
components used on the set. uPB. .
• -XX and -X mean standardized parts, so • CAPACITORS
uF : µF
they may have some difference from the
original one. • COILS
uH : µH
• RESISTORS
METAL : Metal-film resistor.
F : nonflammable When indicating parts by reference
Unit is . number, please include the board.
SC Ref. Part No. Description
---------------------------
CONSOLE ASSEMBLE PARTS LIST
---------------------------
S ! PSB 1-468-366-11 POWER BLOCK
S ! PSB 1-468-365-11 POWER BLOCK
S ! PSB 1-468-303-13 POWER BLOCK
S ! PSB 1-468-243-11 POWER BLOCK
O TERMINAL 1-694-473-12 TERMINAL BOARD (FRONT)
O PM 1-954-377-31 HARNESS (PM-86)
O ! PP 1-959-132-13 HARNESS (PP-169)
O S-FRONT 3-052-152-02 SHIELD, FRONT
O STOPPER 3-052-440-02 STOPPER, HARNESS
O LOWER 3-056-223-01 CABINET (LOWER) (9000/9002/9003)
O LOWER 3-056-223-11 CABINET (LOWER) (9001)
O SHIELD 3-052-471-01 PAPER SHIELD
O L-SHIELD 3-056-229-01 SHIELD (LOWER)
S INSU 3-965-376-01 INSULATOR
O LAVEL 3-969-533-11 LAVEL CAUTION SERIAL(NO.)
S S-COVER 3-973-812-01 COVER, PUSH SWITCH
O BV12 7-685-648-79 SCREW +BVTP
O BV14 7-685-649-79 SCREW +BVTP
S ! AEM 8-820-067-01 DEVICE, OPTICAL KSM-440AEM
O FFC A-6775-347-A CABLE BLOCK ASSY, FLAT
O PU23 A-6791-936-A MOUNTED CIRCUIT BOARD, PU-23
O PU23 A-6791-939-A MOUNTED CIRCUIT BOARD, PU-23
O PU23 A-6791-937-A MOUNTED CIRCUIT BOARD, PU-23
O PU23 A-6791-938-A MOUNTED CIRCUIT BOARD, PU-23
O UPPER X-3949-786-1 CABINET (UPPER) ASSY
O UPPER X-3949-787-1 CABINET (UPPER) ASSY
O UPPER X-3949-788-1 CABINET (UPPER) ASSY
O SUB X-3949-789-1 FRAME ASSY, SUB
All manuals and user guides at all-guides.com
Remark
The components identified by
mark ! or dotted line with mark.
uPA . . : µPA . .
! are critical for safety.
uPC . . : µPC . . uPD . . : µPD . .
Replace only with part number
specified.
Parts classification
Parts are classified dy stock availabity
in the SC section of the parts lists
S : Stocked Normally stocked items.
O : Ordered Not stocked but availible
if requested.
U : Unsupply Component not availible.
Remark
(9000)
(9001)
(9002)
(9003)
(9001)
3X12 TYPE2
3X14 TYPE2 IT-3
(9000)
(9001)
(9002)
(9003)
(9000/9003)
(9001)
(9002)
SC Ref. Part No.
-----------

PU-23 BOARD

-----------
O PU23 A-6791-936-A
O PU23 A-6791-939-A
O PU23 A-6791-937-A
O PU23 A-6791-938-A
O C101 1-125-764-21
O C102 1-162-964-11
O C104 1-162-964-11
O C105 1-162-964-11
O C106 1-162-964-11
O C108 1-162-964-11
O C109 1-162-964-11
O C110 1-162-964-11
O C111 1-162-964-11
O C112 1-164-156-11
O C113 1-164-156-11
O C114 1-162-964-11
O C115 1-162-970-11
O C116 1-162-927-11
O C118 1-162-964-11
O C122 1-162-964-11
O C124 1-115-156-11
O C129 1-162-927-11
O C130 1-162-927-11
O C131 1-162-927-11
O C132 1-162-964-11
O C133 1-162-964-11
O C134 1-162-964-11
O C136 1-162-964-11
O C137 1-163-275-11
O C138 1-163-021-11
O C139 1-163-021-11
O C140 1-163-021-11
O C144 1-162-964-11
O C145 1-162-964-11
O C146 1-162-964-11
O C150 1-162-970-11
O C151 1-162-970-11
O C152 1-162-970-11
O C208 1-164-156-11
O C209 1-164-156-11
O C210 1-164-156-11
O C211 1-162-964-11
O C213 1-164-156-11
O C214 1-164-156-11
— 18 —
Description Remark
MOUNTED CIRCUIT BOARD, PU-23 (9000)
MOUNTED CIRCUIT BOARD, PU-23 (9001)
MOUNTED CIRCUIT BOARD, PU-23 (9002)
MOUNTED CIRCUIT BOARD, PU-23 (9003)
****************************
<CAPACITOR>
CAP, CHIP CERAMIC 100PF CH
CAP, CHIP CERAMIC 1000PF B (1608)
CAP, CHIP CERAMIC 1000PF B (1608)
CAP, CHIP CERAMIC 1000PF B (1608)
CAP, CHIP CERAMIC 1000PF B (1608)
CAP, CHIP CERAMIC 1000PF B (1608)
CAP, CHIP CERAMIC 1000PF B (1608)
CAP, CHIP CERAMIC 1000PF B (1608)
CAP, CHIP CERAMIC 1000PF B (1608)
CAP, CHIP CERAMIC 0.1MF F (1608)
CAP, CHIP CERAMIC 0.1MF F (1608)
CAP, CHIP CERAMIC 1000PF B (1608)
CAP, CHIP CERAMIC 10000PF B (1608)
CAP, CHIP CERAMIC 100PF CH (1608)
CAP, CHIP CERAMIC 1000PF B (1608)
CAP, CHIP CERAMIC 1000PF B (1608)
CAP, CHIP CERAMIC 1000000PF F (1608)
CAP, CHIP CERAMIC 100PF CH (1608)
CAP, CHIP CERAMIC 100PF CH (1608)
CAP, CHIP CERAMIC 100PF CH (1608)
CAP, CHIP CERAMIC 1000PF B (1608)
CAP, CHIP CERAMIC 1000PF B (1608)
CAP, CHIP CERAMIC 1000PF B (1608)
CAP, CHIP CERAMIC 1000PF B (1608)
CAP, CHIP CERAMIC 1000PF CH (2012)
CAP, CHIP CERAMIC 10000PF B (2012)
CAP, CHIP CERAMIC 10000PF B (2012)
CAP, CHIP CERAMIC 10000PF B (2012)
CAP, CHIP CERAMIC 1000PF B (1608)
CAP, CHIP CERAMIC 1000PF B (1608)
CAP, CHIP CERAMIC 1000PF B (1608)
CAP, CHIP CERAMIC 10000PF B (1608)
CAP, CHIP CERAMIC 10000PF B (1608)
CAP, CHIP CERAMIC 10000PF B (1608)
CAP, CHIP CERAMIC 0.1MF F (1608)
CAP, CHIP CERAMIC 0.1MF F (1608)
CAP, CHIP CERAMIC 0.1MF F (1608)
CAP, CHIP CERAMIC 1000PF B (1608)
CAP, CHIP CERAMIC 0.1MF F (1608)
CAP, CHIP CERAMIC 0.1MF F (1608)
The components identified by
mark ! or dotted line with mark.
! are critical for safety.
Replace only with part number
specified.
