PlayStation SCPH-7501 - Game Console Service Manual

Scph-9000 series game console
Hide thumbs
Table of Contents

Advertisement

Quick Links

SCPH-9000
SERIES
Sony Computer Entertainment Inc.
Customer Service Dept.
1999. 5 Printed in Japan © 9-927-069-03
Registered No.
Sony Computer Entertainmant Europe
SCPH-9000
SERIES
Japan Model
SCPH-9000
US/Canada Model
3rd Edition
SCPH-9001
Australia Model
SCPH-9002A
UK Model
SCPH-9002B
AEP Model
SCPH-9002C
Asia Model
SCPH-9003
Reproduction Prohibited

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCPH-7501 - Game Console and is the answer not in the manual?

Questions and answers

Colin
March 22, 2025

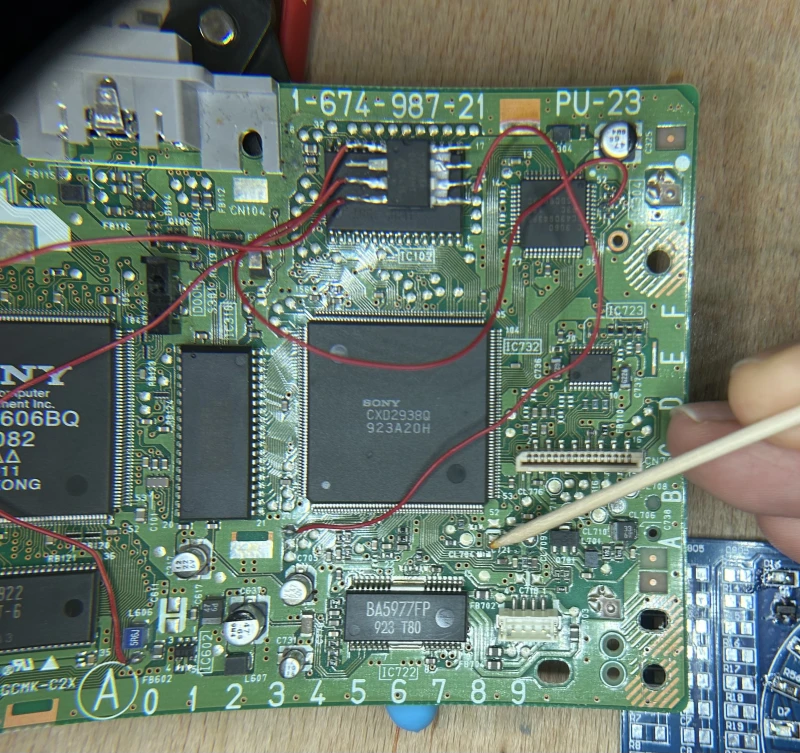

On board PU23 what is the component to the right of the text CL704 I was attempting to fit a mod chip and lost this component. I would like to to replace it. Thank you

User image 67deb75a3080c
0

Related Manuals for PlayStation SCPH-7501 - Game Console

Summary of Contents for PlayStation SCPH-7501 - Game Console

  • Page 1 SCPH-9000 SERIES SCPH-9000 SERIES Japan Model SCPH-9000 US/Canada Model 3rd Edition SCPH-9001 Australia Model SCPH-9002A UK Model SCPH-9002B AEP Model SCPH-9002C Asia Model SCPH-9003 Reproduction Prohibited Registered No. Sony Computer Entertainment Inc. Sony Computer Entertainmant Europe Customer Service Dept. 1999. 5 Printed in Japan © 9-927-069-03...

  • Page 2: Table Of Contents

    AND SCHEMATIC DIAGRAMS • Printed Wiring Board [PU-23 Board (-11/-21/-31/-41/-51)] ...8 Ordering replacement components. SCEI. Customer Service Dept. Parts-Group is received PlayStation- • Schematic Diagram [PU-23 Board (1/4) (-11/-21/-31/-41/-51)] ..9 repair parts order. When you want to get them. Please accesses to •...

  • Page 3: Specifications

    SCPH-9000 SERIES Reproduction Prohibited SECTION 1 SPECIFICATIONS SCPH-9000 SCPH-9002/A/B/C General Laser diode properties I nputs/Outputs on the rear General Laser diode properties Outputs on the rear Power requirements • Material : GaAlAs Serial I/O port (1) Power requirements • Material : GaAlAs AV Multi out port (1) 100 V AC, 50/60 Hz •...

  • Page 4: Exploded View

    SCPH-9000 SERIES Reproduction Prohibited SECTION 2 EXPLODED VIEW CAUTION The components identified by mark or dotted line with mark. are critical for safety. Replace only with part number specified. UPPER X-3949-786-1 CABINET(UPPER) ASSY (9000) (9003) UPPER X-3949-787-1 CABINET(UPPER) ASSY (9001) UPPER X-3949-788-1 CABINET(UPPER) ASSY (9002) CAUTION : INSU 3-965-376-01 INSULATOR...

  • Page 5: Adjustment

    SCPH-9000 SERIES Reproduction Prohibited SECTION 3 SECTION 4 ADJUSTMENT NOTICE 3-1. Test Specification Circuit Notes : RF Level 0.90 to 1.35 Vp-p (Test point : Between CL704 and CL710) : B+ Line. • RF signal waveform (Eye pattern) Voltages are measured with a Digital Multimeter. (Input impedance over 10 M .) VOLT/DIV : 0.2 V Waveforms easured with an Oscilloscope DC coupled.

  • Page 6: Block Diagrams

    SCPH-9000 SERIES Reproduction Prohibited SECTION 5 BLOCK DIAGRAMS PU-23 BOARD NTSC : 3.58MHz IC201 PAL : 4.43MHz NTSC : 53.693175MHz (SG-RAM) PAL : 53.203425MHz IC106 IC203 (DRAM) IC502 VIDEO OUT (GPU) 16Mbit VDAC +RGB CN502 CXD8561 ENCODER AV MULTI OUT VIDEO AUDIO OUT VID +5V...
  • Page 7 SCPH-9000 SERIES Reproduction Prohibited IC203 IC502 PU-23 BOARD IC103 RES3.3 VIDEO DAC + RGB ENCODER 24-28, 31-36, 39-42, VD0-VD31 161-165, 172-181, 184-194, 197, 198 45-50, 53-59, 62-65 CELL MAIN DATA BUS (GPUD0-GPUD31) D0-D31 SR0-SR7 LATCH CLAMP 502-2 DECODER MATRIX GPUNIT 502-1 107-116, 119-142 IREQ...

  • Page 8: Printed Wiring Boards And Schematic Diagrams

    SCPH-9000 SERIES Reproduction Prohibited SECTION 6 PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. Note on Printed Wiring Boards : • Through hole is omitted. • : Pattern on the side which is seen. Note on Schematic Diagram : •...

  • Page 9: Printed Wiring Board [Pu-23 Board (-11/-21/-31/-41/-51)]

    SCPH-9000 SERIES Reproduction Prohibited PU-23 BOARD (-11/-21/-31/-41/-51) C530 R430 R426 C424 CL608 C511 C510 C404 L604 IC405 C406 CL509 IC502 C608 R543 C408 C423 C609 Suffix of -51 L401 Suffix of -51 R423 R501 L507 CL125 CL125 CL122 CL157 CL123 CL142 CL141 CL512...

  • Page 10: Schematic Diagram [Pu-23 Board (1/4) (-11/-21/-31/-41/-51)]

    SCPH-9000 SERIES Reproduction Prohibited PU-23 (1/4) IC203 17 pin VBLANK IC203 199 pin IC203 12 pin GPUDREQ HBLANK IC203 14 pin IC203 9 pin SYSCLK0 GPUA2 IC203 2 pin IC203 5 pin GPUDACK SYSCLK1 IC732 144 pin IC203 4 pin GPUWR IC203 3 pin GPURD...

  • Page 11: Schematic Diagram [Pu-23 Board (2/4) (-11/-21/-31/-41/-51)]

    SCPH-9000 SERIES Reproduction Prohibited PU-23 (2/4) C225 IC502 14 pin CSYNC C249 C214 C216 C248 C222 C226 0.1u 0.001u 0.1u 0.001u 0.001u 0.1u 0.1u IC502 13 pin NTPL DIG_+303V C219 C240 C241 RB201 RB202 0.1u 0.1u 0.001u DIG GND C242 C243 R215 0.01u...

  • Page 12: Schematic Diagram [Pu-23 Board (3/4) (-11/-21/-31/-41/-51)]

    SCPH-9000 SERIES Reproduction Prohibited PU-23 (3/4) L401 R430 10uH CL401 C407 C445 0.01u R426 4.3k Suffix of -11/-21/-31/-41 Suffix of -51 C424 C424 Suffix of -11/-21/-31/-41 C404 IC732 147 pin AU-L IC732 150 pin AU-R C406 C409 IC405 Suffix of -51 C404 AUDIO AMP IC405...

  • Page 13: Schematic Diagram [Pu-23 Board (4/4) (-11/-21/-31/-41/-51)]

    SCPH-9000 SERIES Reproduction Prohibited PU-23 (4/4) SER_+3.5V SER GND DIG GND R340 DIG_+3.3V R341 R342 C705 C326 L304 100p CL710 0.1u C709 C737 10uH C736 C740 C741 8200p R774 R710 0.22u 0.22u CL706 C325 6.3V C715 C720 R775 C725 C726 470p 470p 0.047u...
  • Page 14 SCPH-9000 SERIES Reproduction Prohibited PU-23 BOARD (1/4) PU-23 BOARD (2/4) PU-23 BOARD (3/4) PU-23 BOARD (4/4) 0.9-1.3 3.8 Vp-p Vp-p 3.8 Vp-p 4 Vp-p 3.8 Vp-p Vp-p 4 Vp-p 3.8 Vp-p 20 s/div 200ns/div 10 s/div 20 S/div 10ns/div 5ms/div 100nS/div 1 s/div IC203...

  • Page 15: Power Block (1-468-366-11)

    SCPH-9000 SERIES Reproduction Prohibited POWER BLOCK (1-468-366-11) T001 SW101 ETB29KL115AC ESB32101N CN101 L101 D102 D001-004 B5BEHPSTV4 SB340 2R5N ERA15-04 DC 8V C003 R003 C010 R011 DC 3.5V D001 D004 300k 4700p 100k 200V 250V (2W) MOUT C105 C103 R119 D011 ZD103 D002 D003...

  • Page 16: Power Block (1-468-365-11)

    SCPH-9000 SERIES Reproduction Prohibited POWER BLOCK (1-468-365-11) T001 SW101 ETB29KL115AC ESB32101N CN101 L101 D102 D001-004 B5BEHPSTV4 SB340 2R5N ERA15-04 DC 8V C003 C105 R003 C010 R011 C103 R119 ZD103 DC 3.5V D001 D004 300k 4700p 100k RD12EB D101 L102 ZD102 200V 250V (2W)

  • Page 17: Power Block (1-468-303-13)

    SCPH-9000 SERIES Reproduction Prohibited POWER BLOCK (1-468-303-11) SW101 T001 N-T01-099 ESB23101N D101 L101 D001-004 B5B-PS-TV4 ERCB1004 TSL0709RA100K1R9 MPG06J DC 8V R003 C003 DC 3.5V D001 D002 680k 47u/400V D102 L102 (1/2W) ERCB1004 TSL0709RA100K1R9 RESET Q001 D003 D004 C006 R005 2SK2666 0.022 L002 (1/4W)

  • Page 18: Power Block (1-468-243-11)

    SCPH-9000 SERIES Reproduction Prohibited POWER BLOCK (1-468-243-11) F001 R011 SW101 D001 D102 L101 250V T001 FCQ6A6 S1WB60 POWER 3.3 H 1.6A PC + C105 R009 ZD103 PD101 D101 CN101 RB12ED L001 LNJ301MPUJAD R001 FCQ10A3L CN001 43mH C012 DC +8.0V C005 4700p L102 0.5W...

  • Page 19: Electrical Parts List

    SCPH-9000 SERIES Reproduction Prohibited SECTION 7 ELECTRICAL PARTS LIST Ref. Part No. Description Remark Ref. Part No. Description Remark NOTE : • Due to standardization, replacements in • SEMICONDUCTORS The components identified by ----------- the parts list may be different from the In each case, u : , for example : mark or dotted line with mark.
  • Page 20 SCPH-9000 SERIES Reproduction Prohibited Ref. Part No. Description Remark Ref. Part No. Description Remark C215 1-164-156-11 CAP, CHIP CERAMIC 0.1MF F (1608) C508 1-126-206-11 CAP, ELECT 100MF C216 1-162-964-11 CAP, CHIP CERAMIC 1000PF B (1608) C509 1-164-156-11 CAP, CHIP CERAMIC 0.1MF F (1608) (for PU23-11/-21/-31/-41) C217 1-164-156-11...
  • Page 21 SCPH-9000 SERIES Reproduction Prohibited Ref. Part No. Description Remark Ref. Part No. Description Remark C733 1-115-467-11 CAP, CHIP CERAMIC0.22MF B (1608) FB113 1-216-295-11 FERRITE, EMI (SMD) (for 9000) C736 1-104-847-11 CAP, CHIP TANTALUM ELECT 22MF FB113 1-414-813-11 FERRITE, EMI (SMD) (for 9001/9002/9003) C737 1-104-847-11...
  • Page 22 SCPH-9000 SERIES Reproduction Prohibited Ref. Part No. Description Remark Ref. Part No. Description Remark <JAMPER > R141 1-220-736-11 RES, CHIP 470 (1608) (for PU23-11/-21/-31/-41) R142 1-220-736-11 RES, CHIP 470 (1608) (for PU23-11/-21/-31/-41) JR201 1-216-864-11 CONDUCTOR, CHIP (1608) R146 1-216-821-11 RES, CHIP 1.0K (1608) JR202 1-216-864-11 CONDUCTOR, CHIP (1608)
  • Page 23 SCPH-9000 SERIES Reproduction Prohibited Ref. Part No. Description Remark Ref. Part No. Description Remark R732 1-216-835-11 RES, CHIP 15K (1608) ------------------------------- R733 1-216-845-11 RES, CHIP 100K (1608) ACCESSORIES & PACKING MATERIALS R734 1-216-825-11 RES, CHIP 2.2K (1608) ------------------------------- R738 1-220-371-11 RES, CHIP 4.3K (1608) R739 1-216-823-11...

  • Page 24: Power Block

    SCPH-9000 SERIES Reproduction Prohibited Ref. Part No. Description Remark Ref. Part No. Description Remark 1-468-366-11 Power Block (9000) <FILTER> <CAPACITOR> L001 CHOKE COIL ELF15N004A L101 CHOKE COIL 2R5N C001 FILM 0.1uF 125V L102 CHOKE COIL 2R5N C003 ELECT 100uF 200V L103 INDUCTOR EXCELSA35T C004...
  • Page 25 SCPH-9000 SERIES Reproduction Prohibited Ref. Part No. Description Remark Ref. Part No. Description Remark 1-468-365-11 Power Block (9001) <FILTER> <CAPACITOR> L001 CHOKE COIL ELF15N004A L101 CHOKE COIL 2R5N C001 FILM 0.1uF 275V L102 CHOKE COIL 2R5N C003 ELECT 100uF 200V L103 INDUCTOR EXCELSA35 C004...
  • Page 26 SCPH-9000 SERIES Reproduction Prohibited Ref. Part No. Description Remark Ref. Part No. Description Remark 1-468-303-31 Power Block (9002) <IC> <CAPACITOR> IC101 IC UPC1093J IC102 IC M51957BL C001 FILM 0.047uF 250V C002 FILM 0.047uF 250V C003 ELECT 47uF 400V <FILTER> C004 CERAMIC 68PF 1KV C006 FILM 0.022uF 100V...
  • Page 27 SCPH-9000 SERIES Reproduction Prohibited Ref. Part No. Description Remark Ref. Part No. Description Remark R110 METAL 10K 1/4W 1-468-243-11 Power Block (9003) R111 CARBON 15 1/4W R112 CARBON 180 1/4W <CAPACITOR> C001 FILM 0.1uF 257V <SWITCH> C003 CERAMIC 2200PF 250V C004 CERAMIC 2200PF 250V SW101...
  • Page 28 SCPH-9000 SERIES Reproduction Prohibited Ref. Part No. Description Remark Ref. Part No. Description Remark <TRANSISTOR> Q001 TRANSISTOR 50W 800V3 Q002 TRANSISTOR 0.3W 25V Q101 TRANSISTOR 0.3W 50V Q102 TRANSISTOR 0.3W 50V Q103 TRANSISTOR 0.3W 50V Q104 TRANSISTOR 0.3W 50V <PHOTO CUPPLER> PC001 OPTOISOLATOR PC <TRANSFORMER POWER>...

This manual is also suitable for:

Scph-9000Scph-9001Scph-9002aScph-9002bScph-9002cScph-9003 ... Show all
