- Page 1 Product User Guide HiTemp140-FP and HiTemp140-FP-TSK HiTemp140-FP High Temperature Data Logger with Flexible RTD Probe HiTemp140-FP-TSK High Temperature Data Logger with Flexible RTD Probe and Thermal Shield 0.561.8187 information@itm. www. .com...
-
Page 2: Table Of Contents
Product Overview .......... 2 Installation Guide .......... 3 Device Operation .......... 3 Product Maintenance ........4 RMA Instructions ........... 4 HiTemp140-FP General Specifications ....5 HiTemp140-FP-TSK General Specifications ..6 Disclaimer & Terms of Use .. Back Cover 0.561.8187 information@itm. www. -
Page 3: Product Overview

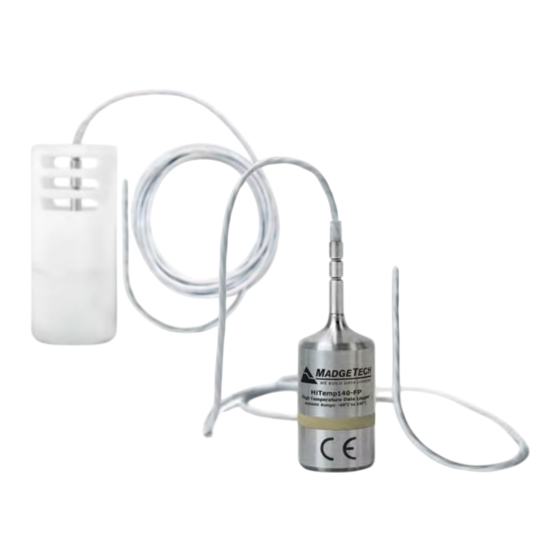

HiTemp140-FP & HiTemp140-FP-TSK Product Overview The HiTemp140-FP is a durable, user friendly high temperature data logger featuring a long, flexible RTD probe with a narrow diameter, making it ideal for use in steam sterilization and lyophilization processes. Commonly used for mapping, validation and monitoring of high temperature surfaces, this stainless steel data logger is available in two models, the HiTemp140-FP-36 and the HiTemp140-FP-72, which feature either 36 inch or 72 inch flexible probe lengths, respectively. -
Page 4: Installation Guide
Product User Guide Installation Guide Installing the Interface cable - IFC400 or IFC406 Refer to the “Quick Start Guide” included in the package. Installing the software The software can be downloaded from the website. Device Operation Connecting and Starting the data logger - Once the software is installed and running, plug the interface cable into the docking station. -
Page 5: Product Maintenance
HiTemp140-FP & HiTemp140-FP-TSK Product Maintenance Battery Replacement Materials: ER1425S-HT Battery 1. Unscrew the bottom of the logger and remove the battery. 2. Place the new battery into the logger. Note the polarity of the battery. 3. Screw the cover back onto the logger. -
Page 6: Hitemp140-Fp General Specifications
MadgeTech Software • MadgeTech Standard Software version 4.2.1.1 Compatibility • MadgeTech Secure Software version 4.2.0.1 or later Operating Environment -40 °C to +140 °C (-40 °F to +284 °F) 0 %RH to 100 %RH, 0.002 PSIA to 60 PSIA IP Rating... -
Page 7: Hitemp140-Fp-Tsk General Specifications
HiTemp140-FP & HiTemp140-FP-TSK HiTemp140-FP-TSK Specifications Thermal Shield HiTemp140-FP-TSK (Flush) HiTemp140-FP-TSK (Vented) Specifications 2.75 in x 2.0 in dia. 4.3 in x 2.0 in dia. Dimensions (enclosure) (69.85 mm x 51 mm dia.) (109.2 mm x 50.8 mm dia.) 6.7 oz (190 g) 9.5 oz (270 g) - Page 8 Disclaimer & Terms of Use Listed specifications can be used to determine maximum allowable exposure times for the HiTemp140 with Thermal Shield at different temperatures beyond the normal operating range of the logger. Both the data logger and Thermal Shield must be at ambient temperature (approximately 25 °C) before being placed in the extreme temperature environment.
