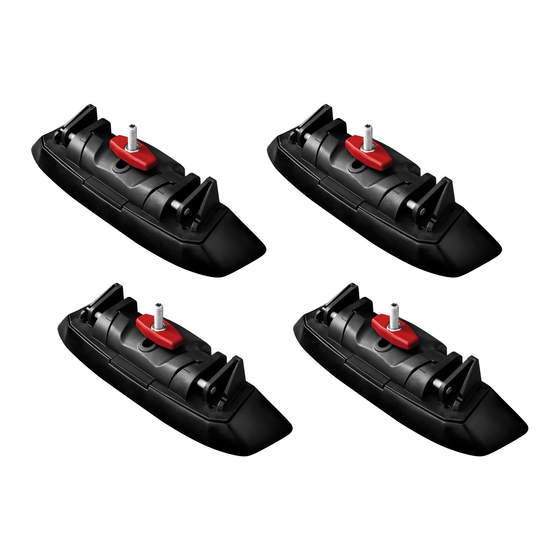

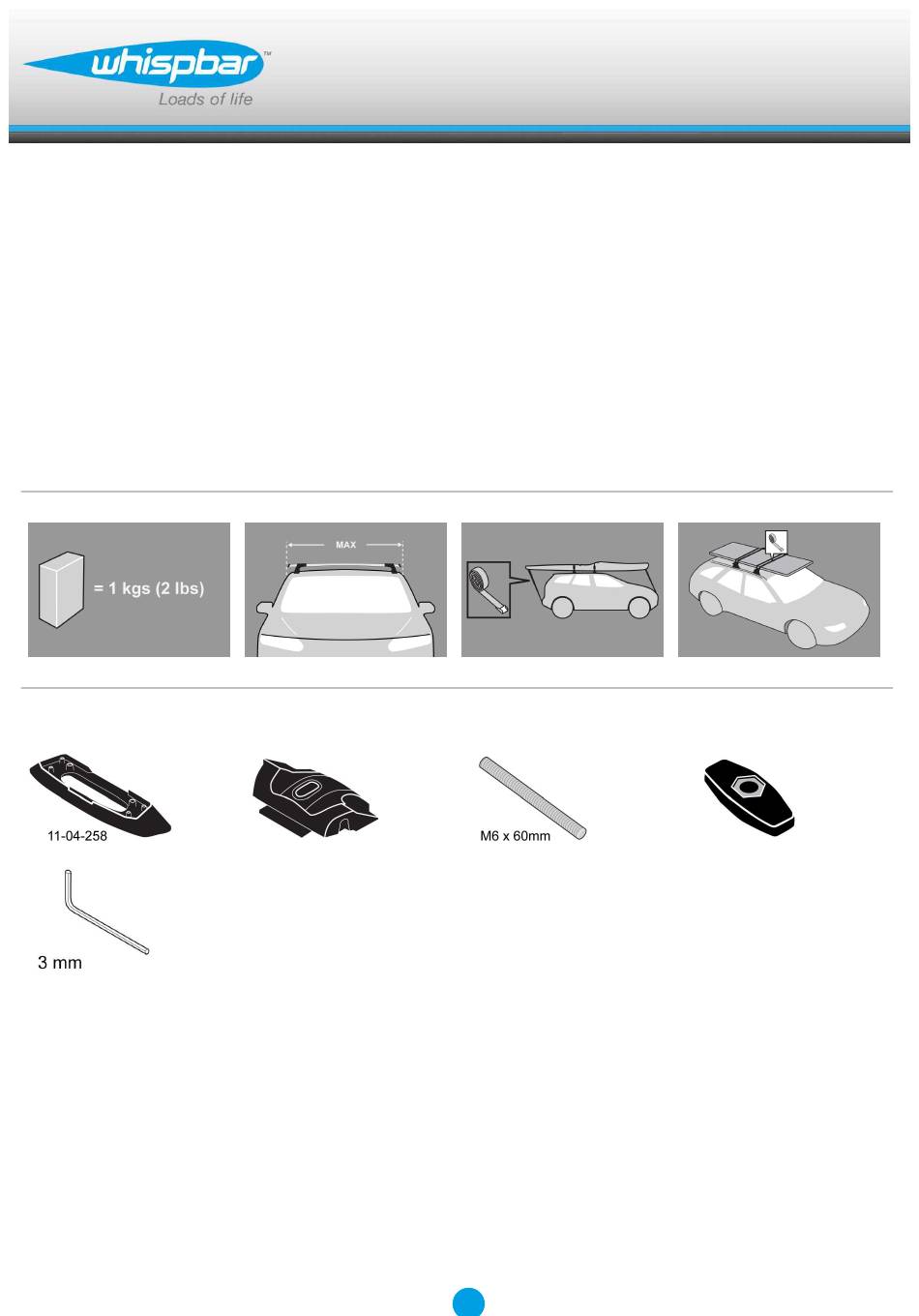

- Page 1 K340W Fitting Kit Fitting Instructions for Basic Carrier Revision No: 8H...
- Page 2 Fitting Kit K340W MAX kgs (lbs) Mazda 3, 4dr Sedan 04-09 75 kgs (165 lbs) 75 kgs (165 lbs) 3, 4dr Sedan 04-09 75 kgs (165 lbs) 75 kgs (165 lbs) 3, 4dr Sedan 04-09 75 kgs (165 lbs) 75 kgs (165 lbs)
- Page 3 Fitting Kit K340W 6/Atenza, 5dr Wagon Jun 02-Feb 08 75 kgs (165 lbs) 75 kgs (165 lbs) Axela, 4dr Sedan Jan 04-Apr 09 75 kgs (165 lbs) 75 kgs (165 lbs) Axela, 5dr Hatch Jan 04-Apr 09 75 kgs (165 lbs)
- Page 4 Fitting Kit K340W 3, 4dr Sedan 04-09 (ZA) -330mm 350mm 848mm 834mm -12 -1/1ths" 13 3/4ths" 33 3/8ths" 32 13/16ths" 3, 4dr Sedan 04-09 (US) -330mm 350mm 848mm 834mm -12 -1/1ths" 13 3/4ths" 33 3/8ths" 32 13/16ths" 3, 4dr Sedan 04-09 (EU)
- Page 5 Fitting Kit K340W 6, 4dr Sedan 03-08 (US) -360mm 300mm 808mm 788mm -14 -3/16ths" 11 13/16ths" 31 13/16ths" 31" 6, 4dr Sedan 07-11 (EU) -280mm 330mm 836mm 818mm -11" 13" 32 15/16ths" 32 3/16ths" 6, 4dr Sedan 07-11 (CN) -280mm...
-
Page 6: First Time Installation
Fitting Kit K340W First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 7 Fitting Kit K340W Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is adjusted equally. Adjust crossbar in or out to suit vehicle.
- Page 8 Fitting Kit K340W Tighten adjusting screw to 5 Nm (3.7 ft lb) hand tight. Remove plastic clamp block by gripping bar leg with fingers and push firmly with thumbs until clamp block drops out behind leg. Select plastic internal block (from fitting kit) and insert into foot.
- Page 9 Fitting Kit K340W Fit rubber pads (supplied with fitting kit) to foot. Pad may vary in shape to that shown. Make sure the pad fits into the holes underneath the foot. Fitment Open or remove fixed-point covers. Select grubscrews and screw into the vehicle's fixed points.
- Page 10 Fitting Kit K340W Place crossbar foot over grubscrews. Tighten the plastic knob. The side with the nut showing should be facing up. Ensure the plastic knob is in the position shown when fully tightened. Repeat for all legs.
- Page 11 Fitting Kit K340W Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 12: Maintenance
Fitting Kit K340W Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 13 Fitting Kit K340W Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
-
Page 14: Limited Lifetime Warranty
Yakima will issue to the original retail purchaser, at Yakima’s option, either a refund equal to the purchase price paid for the product, or a credit to be used toward the purchase of new Whispbar products or rack components. -
Page 15: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Whispbar dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Whispbar dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 16 Yakima or the Whispbar dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Whispbar dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
