Summary of Contents for Whispbar K386W

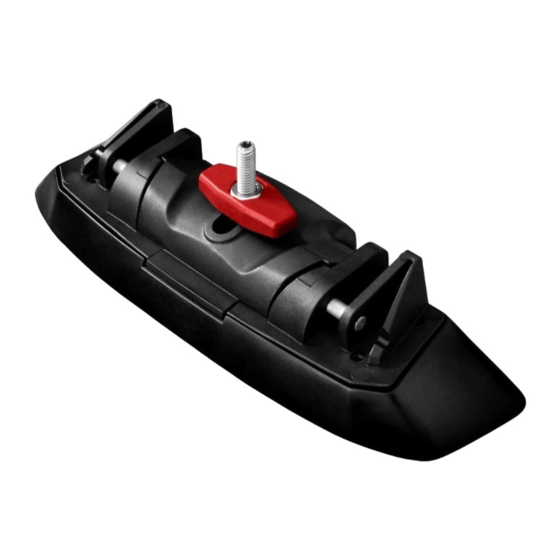

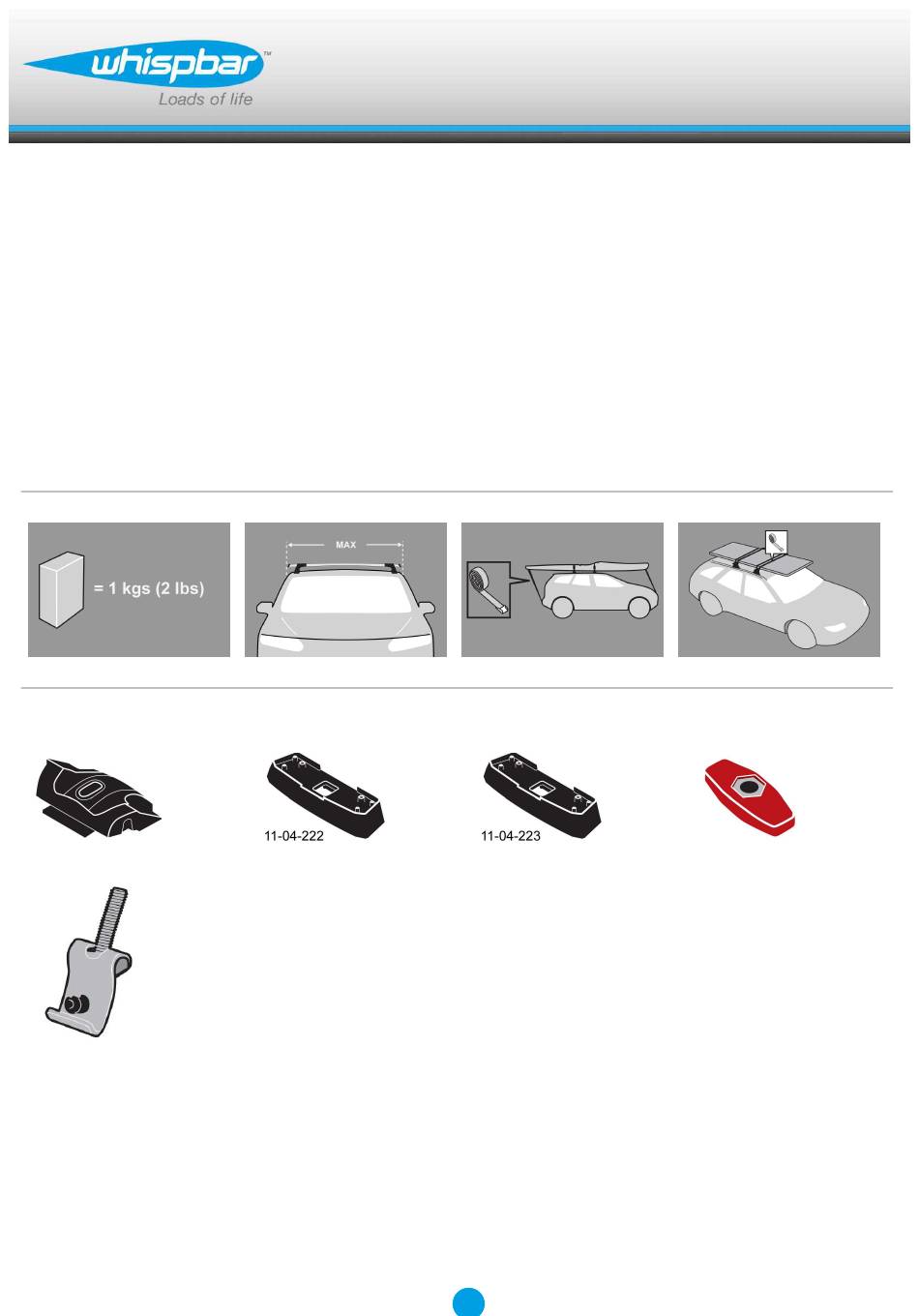

- Page 1 K386W Fitting Kit Fitting Instructions for Basic Carrier Revision No: 6F...
- Page 2 Fitting Kit K386W MAX kgs (lbs) Suzuki SX4 , 4dr Sedan 06-+ 40 kgs (88 lbs) 40 kgs (88 lbs) SX4 , 4dr Sedan 06-13 40 kgs (88 lbs) 40 kgs (88 lbs) SX4 , 4dr Sedan 08-13 40 kgs (88 lbs)
-
Page 3: First Time Installation
Fitting Kit K386W First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 4 Fitting Kit K386W Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is adjusted equally. Adjust crossbar in or out to suit vehicle.
- Page 5 Fitting Kit K386W Tighten adjusting screw to 5 Nm (3.7 ft lb) hand tight. Remove plastic clamp block by gripping bar leg with fingers and push firmly with thumbs until clamp block drops out behind leg. Select plastic internal block (from fitting kit) and insert into foot.
- Page 6 Fitting Kit K386W Refer to the underside of the pad for the part number. Letters refer to the pad part numbers and position. Note: Pads may be different to that shown. Pad Part Number: A = 11-04-222 B = 11-04-223 Fit rubber pads (supplied with fitting kit) to foot.
- Page 7 Fitting Kit K386W Fitment Open or remove fixed-point covers. Store items away in a safe place. Hook clamps into the fixed points on the vehicle. Ensure internal clamp sits upright. Repeat for all four positions. Mount crossbars over clamps.
- Page 8 Fitting Kit K386W Tighten the plastic knob. The side with the nut showing should be facing up. Ensure the plastic knob is in the position shown when fully tightened. Repeat for all legs. Check crossbar is securely attached to the vehicle.
- Page 9 Fitting Kit K386W CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 10: Maintenance
Fitting Kit K386W Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 11 Fitting Kit K386W Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
- Page 12 Fitting Kit K386W SX4, 4dr Sedan 06-+ (CN) -120mm 570mm 769mm 752mm -4 -3/4ths" 22 7/16ths" 30 1/4ths" 29 5/8ths" SX4, 4dr Sedan 06-13 (EU) -120mm 570mm 769mm 752mm -4 -3/4ths" 22 7/16ths" 30 1/4ths" 29 5/8ths" SX4, 4dr Sedan 08-13 (US)
-
Page 13: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Whispbar dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Whispbar dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 14 Yakima or the Whispbar dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Whispbar dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
