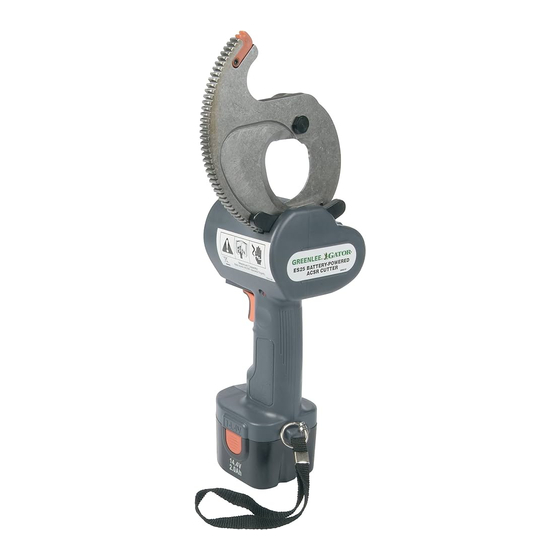

- Page 1 ES25 Battery-powered ACSR Cutter 22131—with 120 V Charger 22132—with 220 V Charger Read and understand all of the instructions and safety information in this manual before operating or servicing this tool. 52022134 REV 3 © 2016 Greenlee Textron Inc. 3/16...
-
Page 2: Table Of Contents
Do not discard this product or throw away! For recycling information, go to www.greenlee.com. All specifications are nominal and may change as design improvements occur. Greenlee Textron Inc. shall not be liable for damages resulting from misapplication or misuse of its products. KEEP THIS MANUAL Greenlee / A Textron Company 4455 Boeing Dr. -
Page 3: Important Safety Information
A damaged or improperly assembled tool can break and strike nearby personnel. Failure to observe these precautions may result in injury or property damage. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... - Page 4 • Inspect the battery before each use. Do not use a damaged battery. Failure to observe these precautions may result in injury or property damage. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
- Page 5 Use other than that which is described in this severe injury or death. manual can result in injury or property damage. Failure to observe these precautions may result in injury or property damage. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
-
Page 6: Identification
ACSR ................636 kcmil (except Egret) Aluminum ..................... 1500 kcmil Battery Type ................Rechargeable nickel-cadmium Voltage ......................14.4 V Charger Voltage ..................120 VAC or 220 VAC Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 7: Operation
If the circuit breaker trips, the tool will stop. If necessary, allow the tool to cool down. Press the RESET button. (Wait 10 seconds to one minute before resetting.) Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 8: Maintenance
7. Install the new movable blade by reassembling the shoulder screw and lock nut. 8. Re-install the battery and operate the cutter. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 9: Troubleshooting
Battery cartridge is too warm. Allow battery to cool. Battery will not hold a charge. Battery life has Replace battery. decreased. Blades are dull. Replace blades. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 10: Illustration And Parts List
ES25 Battery-powered ACSR Cutter Illustration Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... - Page 11 50118510 14.4 V battery 50118412 120 V charger 50118560 220 V charger 50118455 Plastic case 50051920 Case decal 52020084 Plastic case clip (service item only) Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
